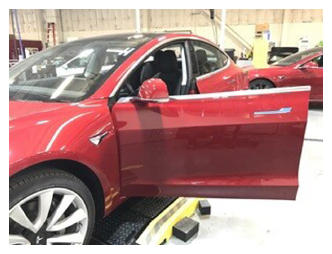

- Open LH front door
 Courtesy of TESLA, INC.
|

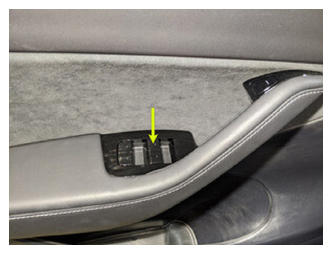

- Lower LH front window
 Courtesy of TESLA, INC.
|

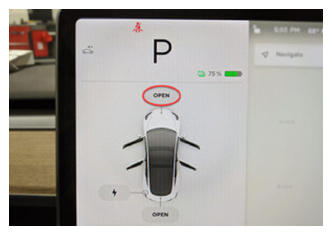

- Open hood
 Courtesy of TESLA, INC.
|

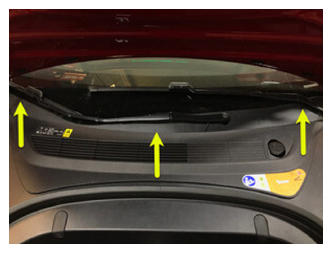

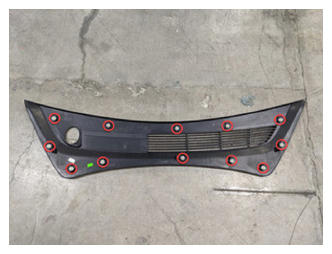

- Remove rear apron
NOTE:
12x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

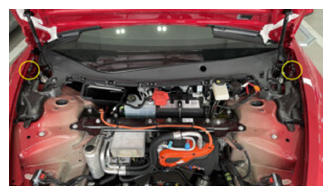

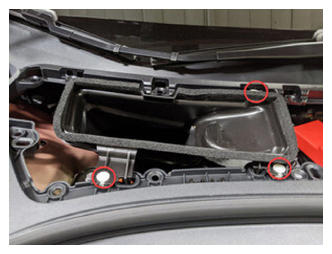

- Remove cabin intake upper duct assembly
NOTE:
3x clips, Older vehicles may be equipped with 4x clips
 Courtesy of TESLA, INC.
|

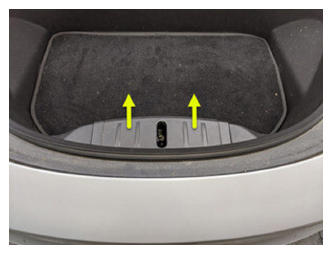

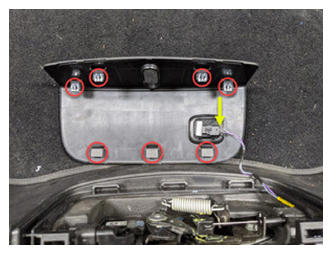

- Remove the close out panel from frunk assembly
NOTE:
4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab the closeout panel from the bottom then pull it upward to release clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

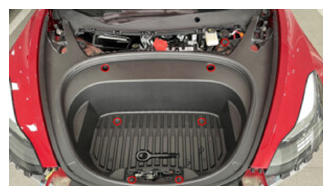

- Remove fasteners securing the frunk assembly
NOTE:
7x bolts, 10 mm, 5 N.m, Lift up the RBN covers to access the upper fasteners, Newer vehicles may not be equipped with covers
 Courtesy of TESLA, INC.
|

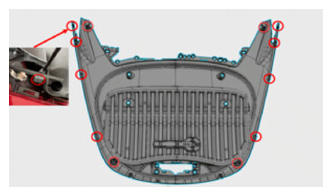

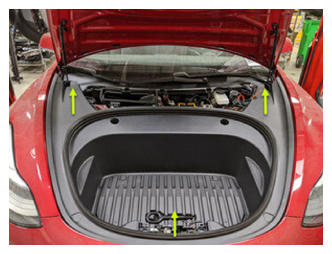

- Remove frunk assembly from vehicle
NOTE:
12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

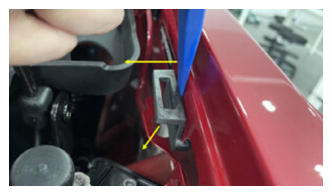

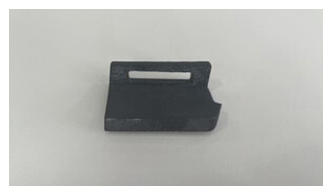

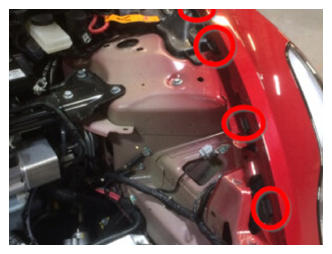

- Release frunk corner bracket from vehicle
NOTE:
If necessary, Clean double-sided tape from fender. Allow 1 minute for IPA to dry.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
