Airbag - Front Passenger - Remove And Install: Notes

Last modified: 16/12/2021 14:38:45

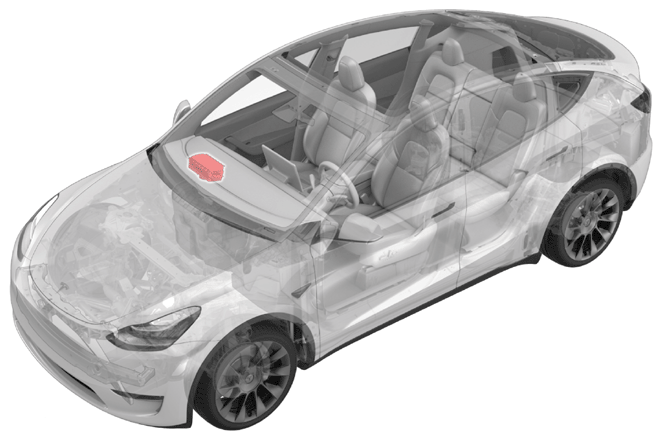

Fig 1: Front Passenger Airbag Components Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

WARNING: Make sure 12V power has been disconnected for at least 2 minutes before disconnecting electrical harnesses from SRS components (sensors, modules, airbags, etc.). Failure to do so can result in unintended safety system behaviors. For more information on SRS precautions, see AIRBAG AND SUPPLEMENTARY RESTRAINT SYSTEM (SRS) PRECAUTIONS .

WARNING: Supplementary restraint system (SRS) components can be hazardous if not handled properly. See AIRBAG AND SUPPLEMENTARY RESTRAINT SYSTEM (SRS) PRECAUTIONS .
