Liftgate Assembly - Remove And Install: Install

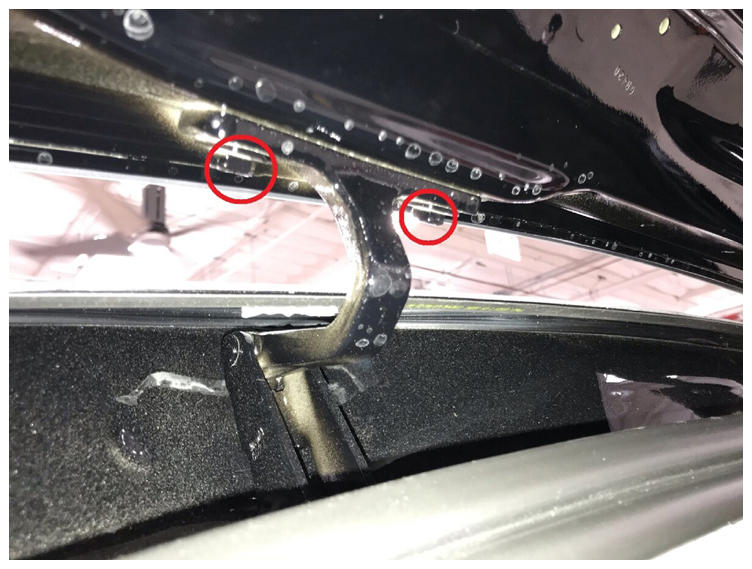

With assistance, position the liftgate onto the vehicle, and then install the bolts that attach the liftgate to the vehicle. Do not tighten the bolts at this time.
Tip: Use of the following tool(s) is recommended:
- 13 mm socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

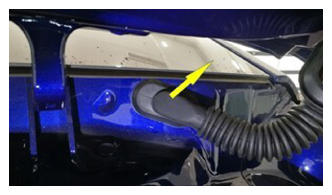

Route the liftgate harness through the access hole, and then install the grommet to the body.

Courtesy of TESLA, INC.

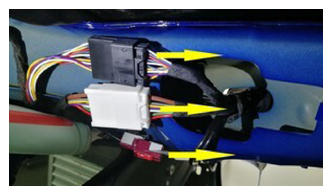

Connect the liftgate harness connectors (x3).

Courtesy of TESLA, INC.

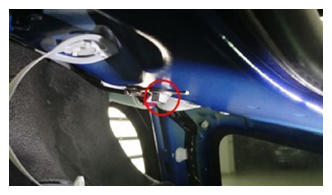

Install the liftgate harness ground bolt.
8 N.m (5.9 ft-lbs)

NOTE: Inspect the bolt. If the bolt is a self tapping tri-lobular bolt (1128269-00-A), then discard. If it is a normal bolt (1447438-00-A), reuse.

Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

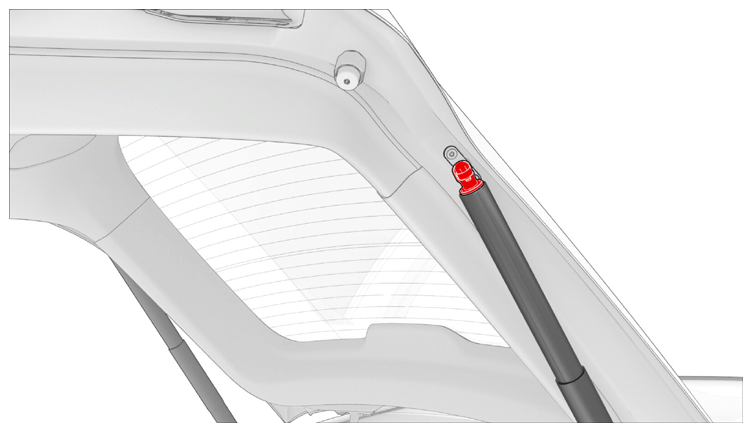

Install the liftgate power strut upper ball stud to the liftgate.

Courtesy of TESLA, INC.

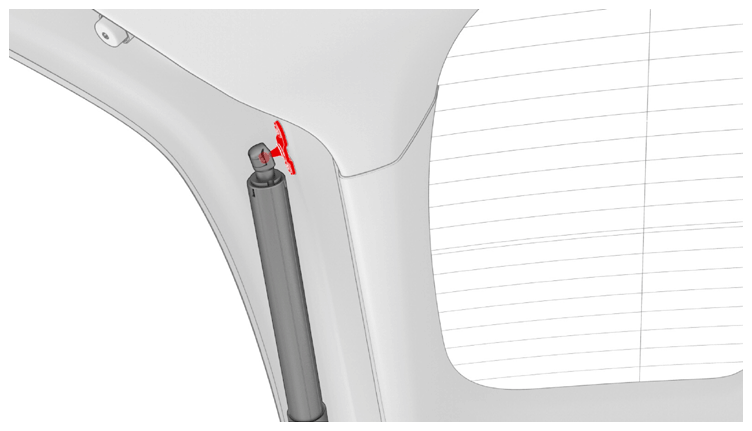

Install the liftgate strut assist upper ball stud to the liftgate.

Courtesy of TESLA, INC.

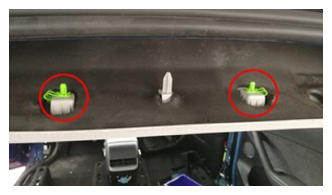

Install the clips that attach the rear edge of the rear headliner to the vehicle.

Courtesy of TESLA, INC.
Install the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace) .
Install the RH trunk side trim. See.
Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
Install the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace) .
Fold the RH 2nd row seat to the vertical the position.
Tighten the bolts that attach the liftgate to the vehicle.
32 N.m (23.6 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 13 mm socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.
Raise the LH front window and close the LH front door.
Close the liftgate.
