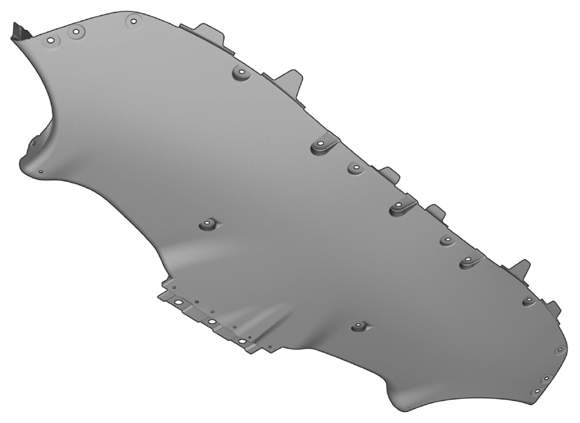

Diffuser - Rear Fascia - Remove And Replace: Remove
- Raise and support the vehicle. See RAISE VEHICLE - 2 POST LIFT .
- Remove the mid aero shield panel. See PANEL - AERO SHIELD - MID (REMOVE AND REPLACE) .

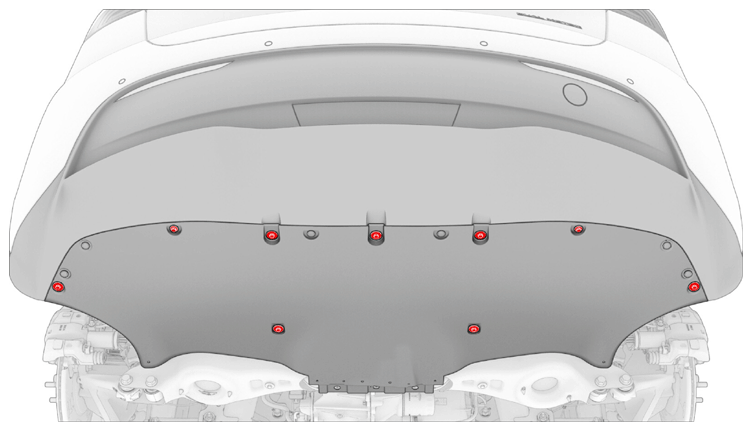

- Remove the bolts that attach the rear fascia diffuser to the vehicle.
4 N.m (2.9 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 2 in extension

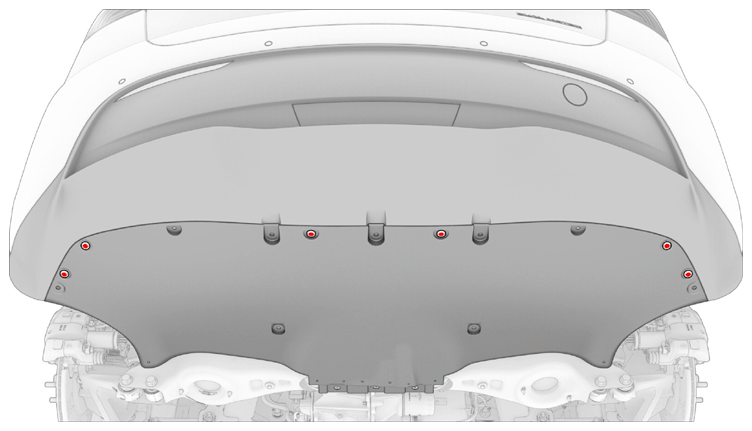

- Remove the clips that attach the rear fascia diffuser to the body, and then remove the diffuser.
