Sliding Lid - Center Console - Remove And Replace: Install

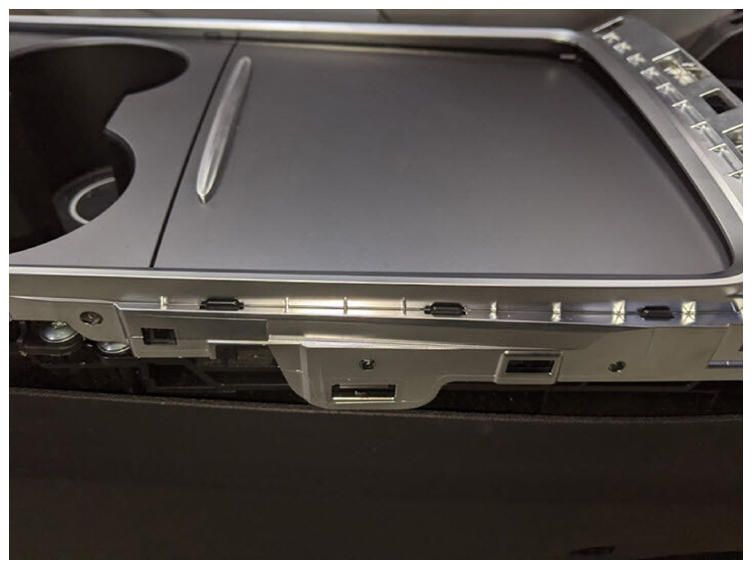

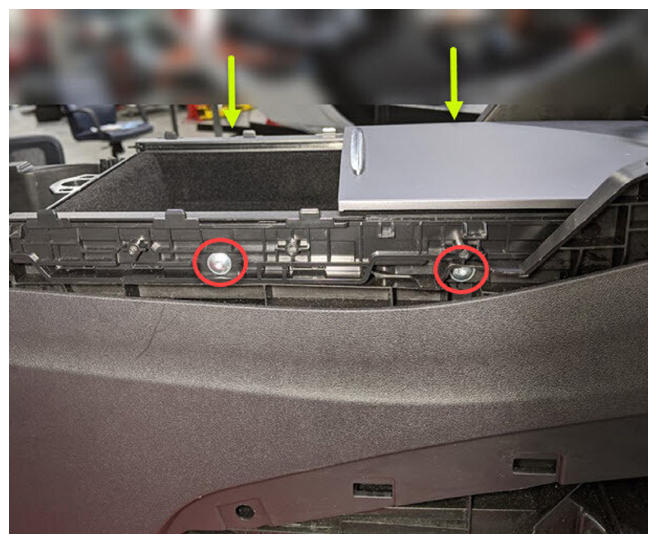

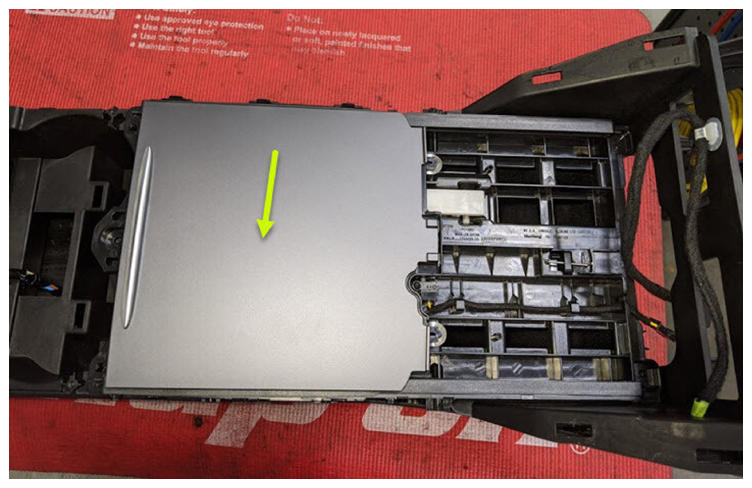

- Position the sliding lid onto the center console.NOTE: Align with the locating pins (x2) on the center console side.

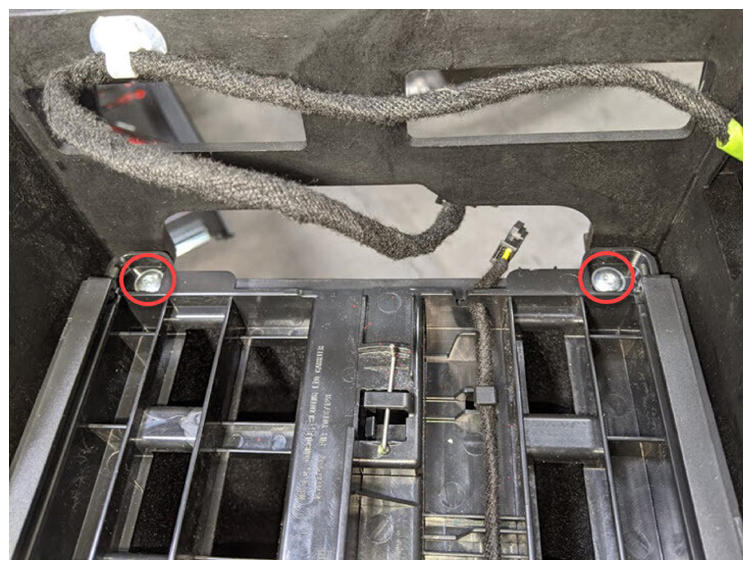

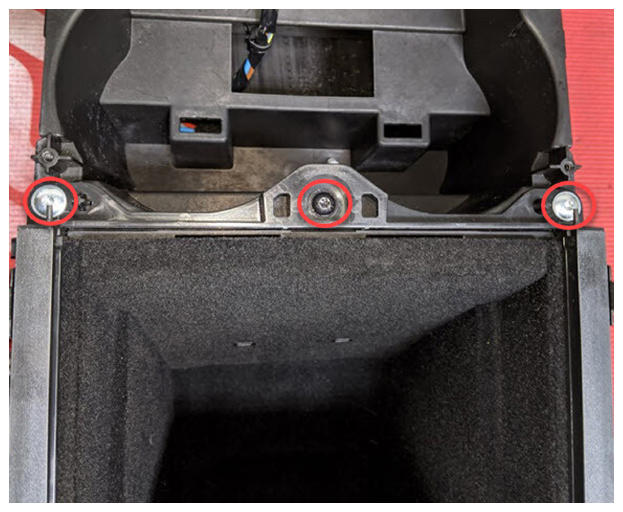

- Install the screws (x9) that attach the sliding lid onto the center console.
1.1 N.m (.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T20 bit

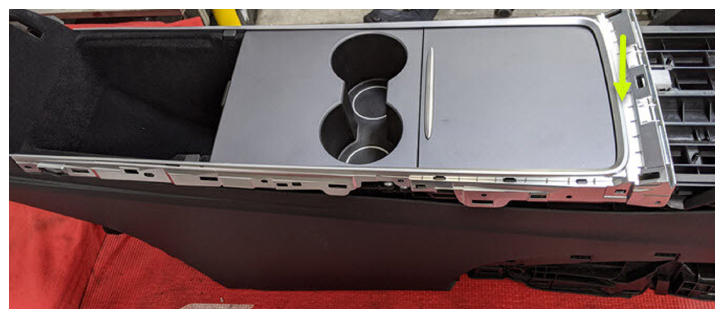

- Connect the sliding lid electrical connector, and then fasten the tabs that attach the electrical connector to the center console.

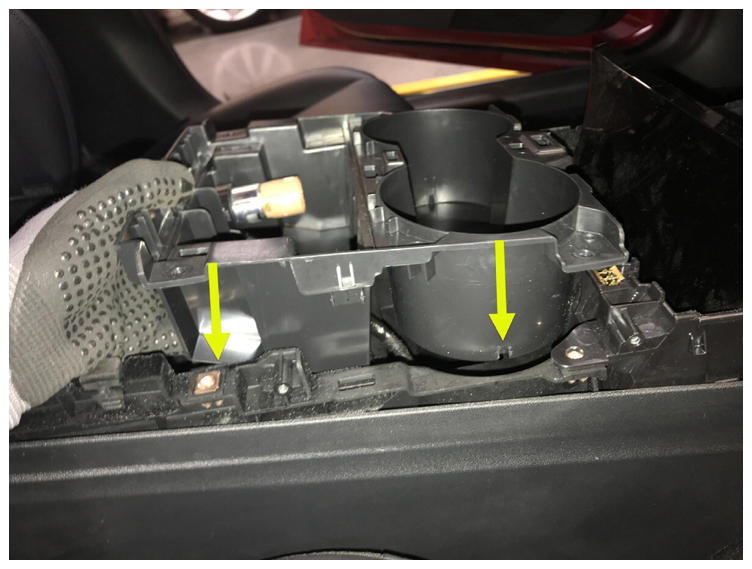

- Install the cup holder into position, and then secure it with clips (x2).NOTE: Feed the electrical harness through the access hole.
- Install the screws (x4) that attach the cup holder to the center console.
Tip: Use of the following tool(s) is recommended:
- Torx T20 bit

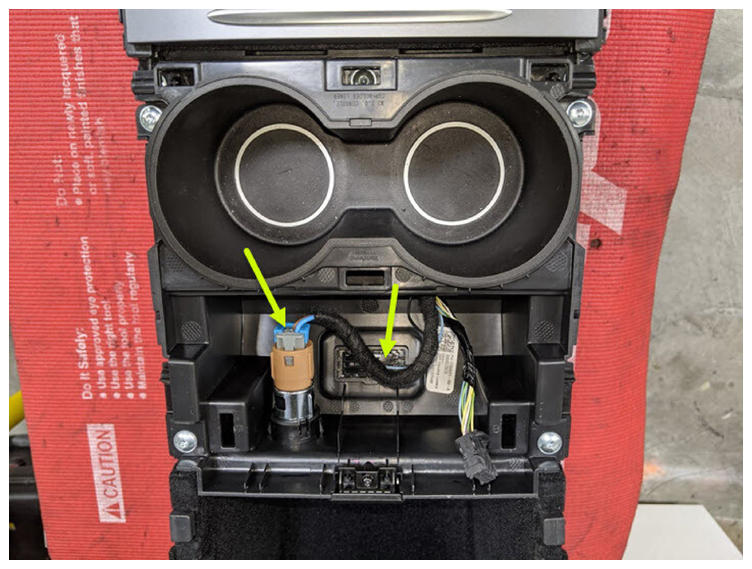

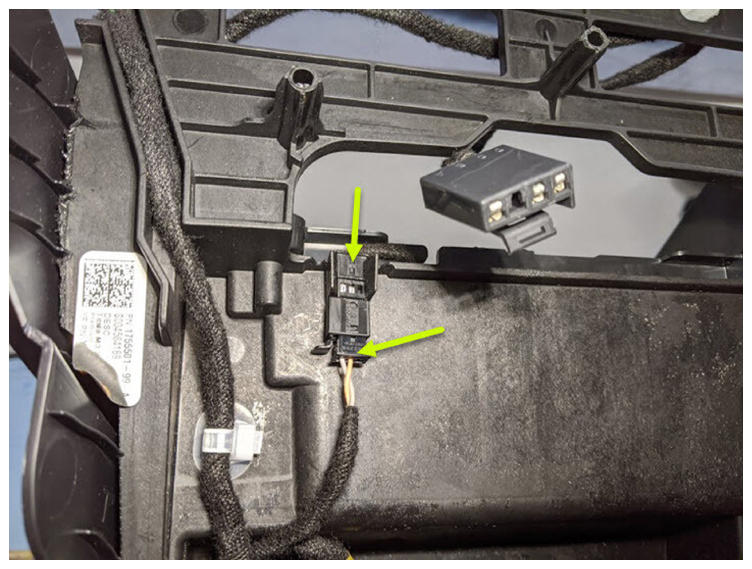

- Connect the cup holder electrical connectors (x2).

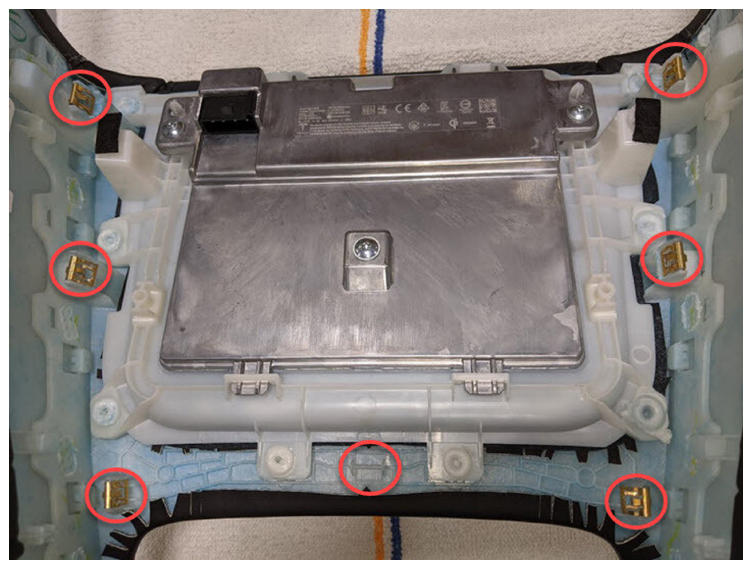

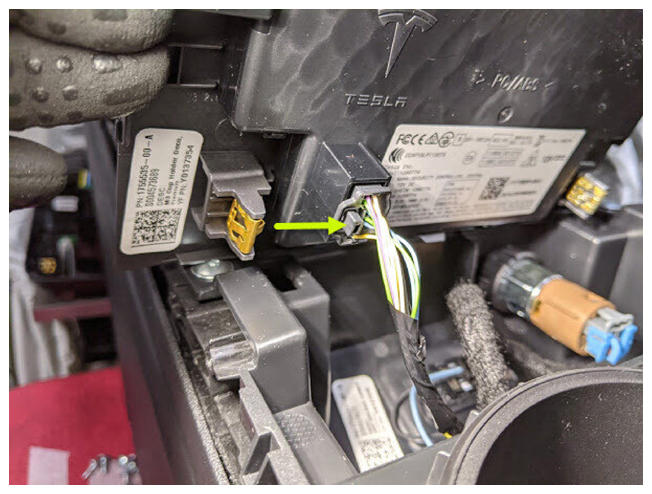

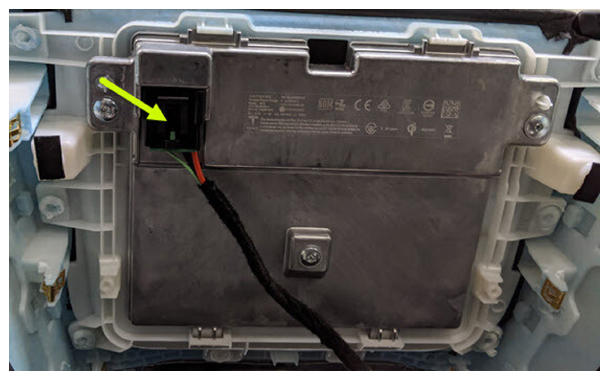

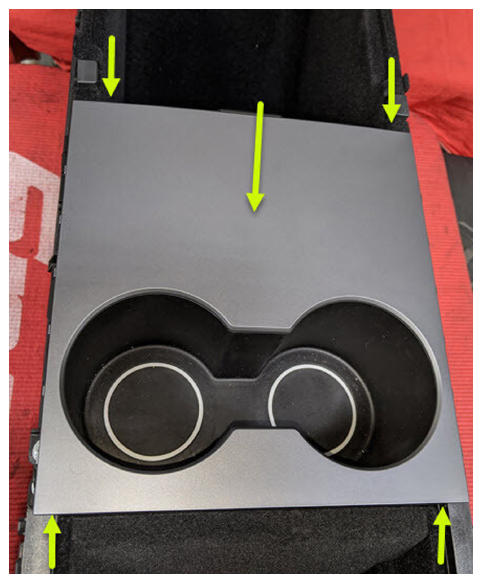

- Connect the security body controller module electrical connector, and then fasten the clips (x6) that attach the cup holder decor to the center console.

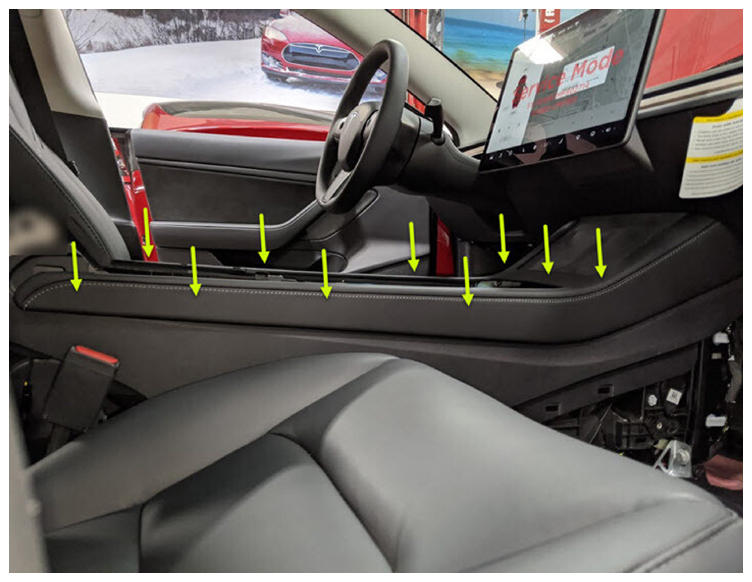

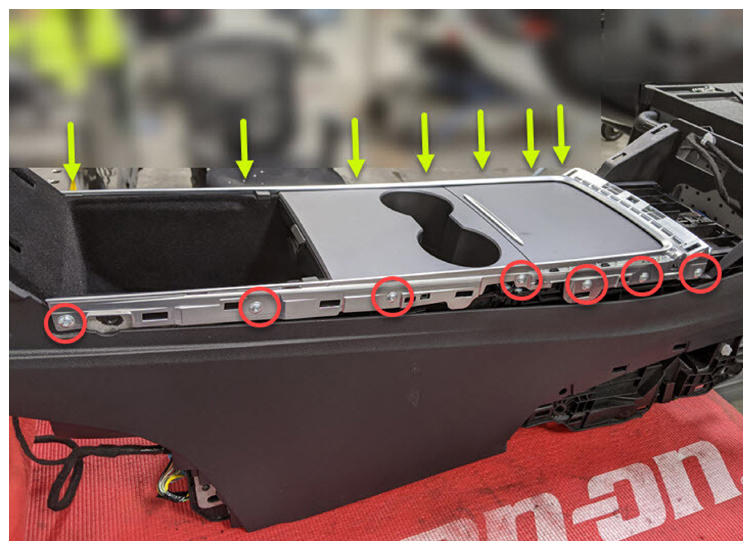

- Position the center console bright strip onto the center console, and then fasten it with locating tabs (x12).NOTE: Verify that there are no gaps present along the strip.
- Install the bolts (x14) that attach the bright strip to the center console.
Tip: Use of the following tool(s) is recommended:
- Torx T20 bit

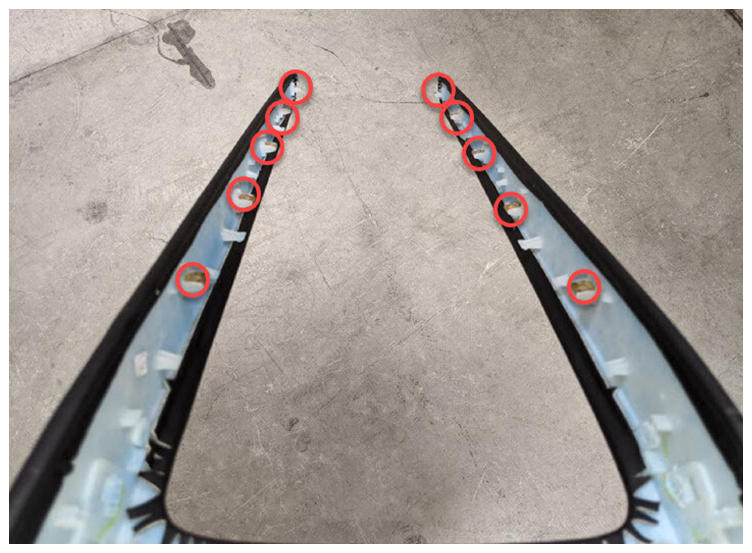

- Connect the electrical connector, and then fasten then clips (x17) that attach the center console decor to the center console.
- Close the center console armrest.
- Reconnect LV power. See 12V/LV Power (Disconnect and Connect) .
- Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
- Restore the driver and front passenger seats back to their original position.
