End Panel - Center Console - Remove And Replace: Remove
- Open all doors and fully lower all windows.
- Remove the center console lower rear panel. See PANEL - LOWER REAR - CENTER CONSOLE (REMOVE AND REPLACE) .
- Remove the center console air vent panel. See Assembly - Rear Vent - Center Console (Remove and Replace) .

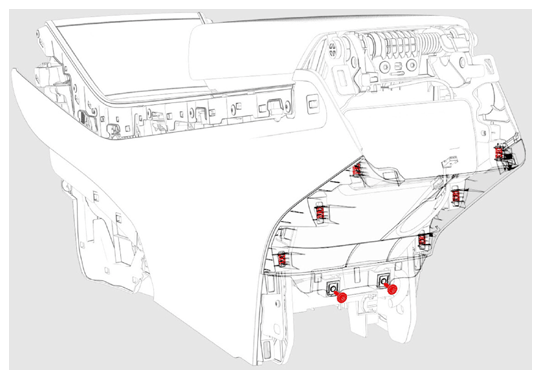

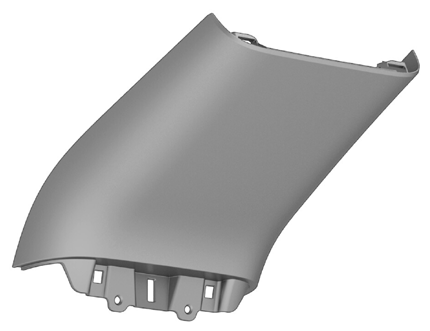

- Remove the bolts (x2) and release the clips (x6) that attach the center console end panel to the center console, and then remove the end panel from the console.
1.1 N.m (.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
- 4 in extension
