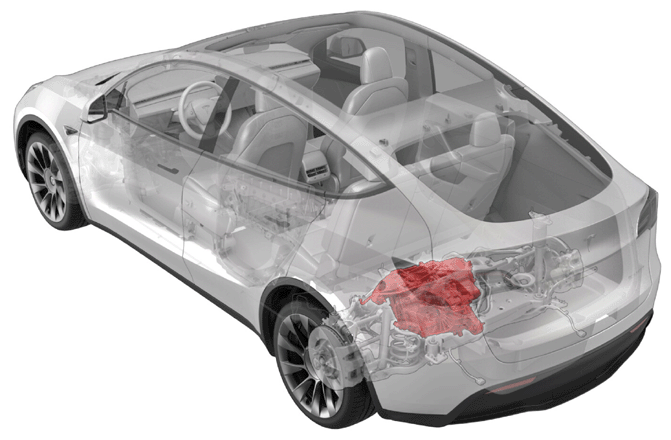

Drive Unit - Rear - 4DU - Remove And Install: Notes
Last modified: 25/10/2023 07:05:06
NOTE:
See PERSONAL PROTECTION
to make sure wearing proper PPE when performing the below procedure
Revision History:
- 2023-10-25: Updated torque figure for rear upper fore link to knuckle from 76 Nm to 84 Nm.
- 2023-06-08: Added shear plate small bolts torque figure for Structural Pack type vehicles.
- 2023-05-02: Corrected step crossreferences.
WARNING:
This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.
