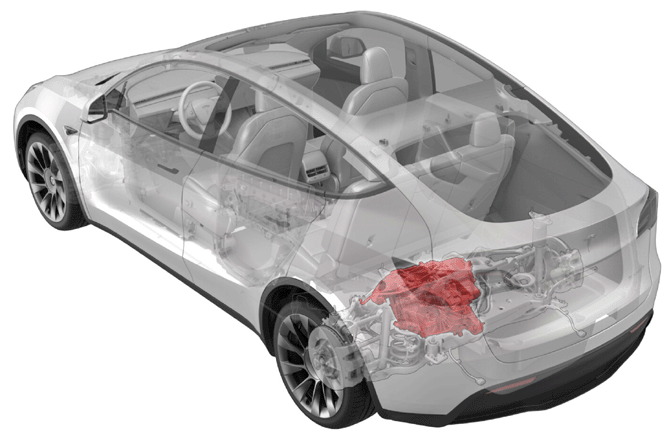

Drive Unit - Rear - 3DU - Remove And Install: Notes
Last modified: 11/01/2024 08:37:53
NOTE:
See PERSONAL PROTECTION
to make sure wearing proper PPE when performing the below procedure.
Revision History:
- 2024-01-11: Updated torque figure for the bolt that attaches the ground strap to the RDU from 6 N.m to 10 N.m.
- 1099645-00-B Fixture, Subframe, Model 3
- 1130279-00-A Lifting Sling, Drive Unit, Model 3 (NA, APAC)
- 1130481-00-A Adapter, Subframe, Body Shop, Model 3
- 1096075-00-A Tool, Hub Puller, Hydraulic
- 1498673-00-A KIT, CABLE AXLE REMOVER, MS/MX/M3
- 1140311-00-A Lever Lock, HV Connector, Model 3
