Display and Change Gateway Configuration

Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3 - Connect and Disconnect .

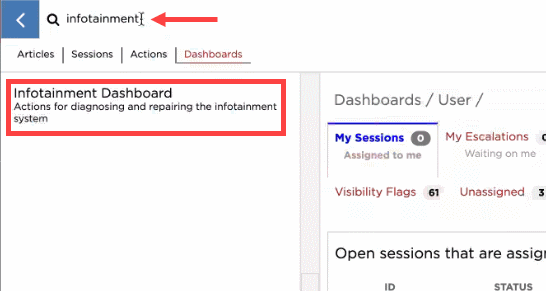

In Toolbox, click the Dashboards tab, type "Infotainment" into the search field, and then click on Infotainment Dashboard .

Courtesy of TESLA, INC.

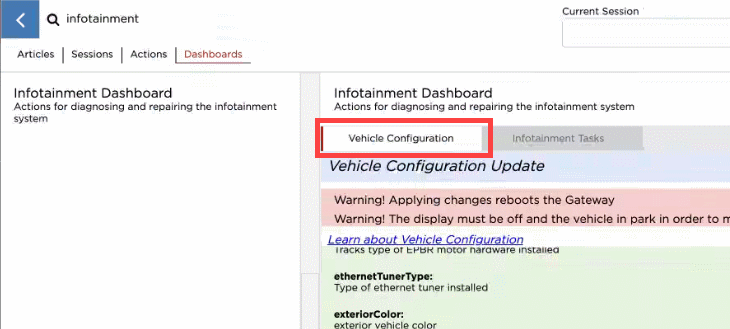

Under Infotainment Dashboard, click the Vehicle Configuration tab.

Courtesy of TESLA, INC.

NOTE:

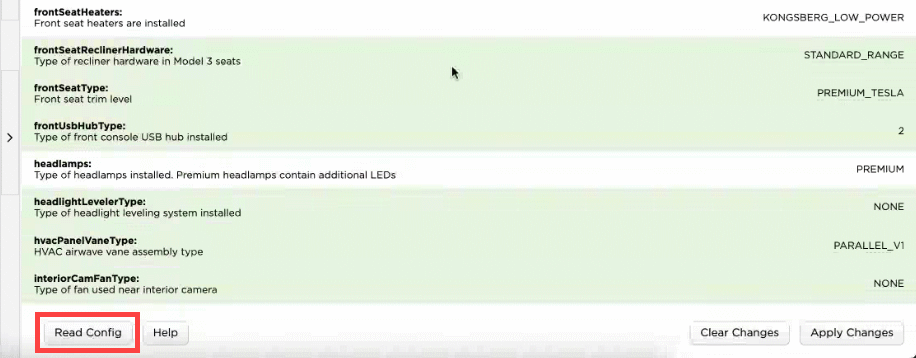

If no configuration parameter values are displayed, click Read Config .

Courtesy of TESLA, INC.

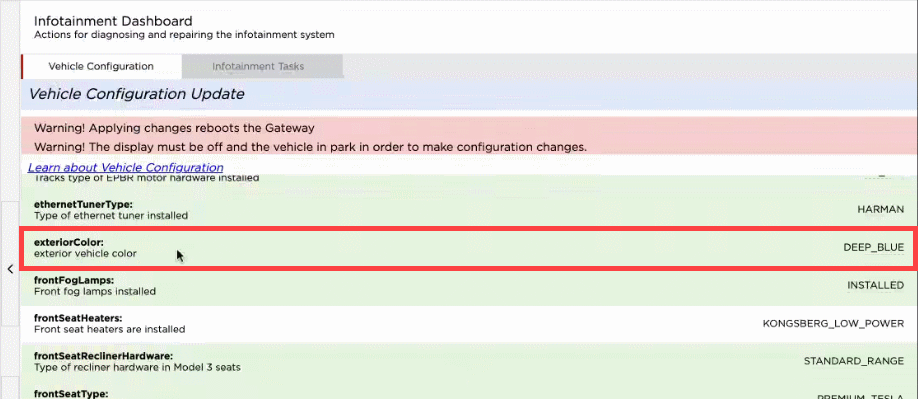

Scroll down the list to find the parameter and its current value.
NOTE:
Parameters with a green background can be changed.

Courtesy of TESLA, INC.
Click on the current value, and from the drop-down menu that appears, select the new value.

Courtesy of TESLA, INC.

NOTE:

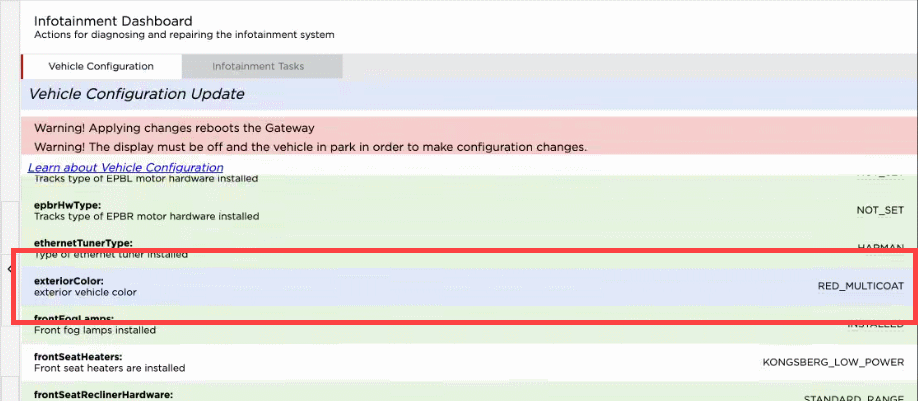

Once the new value is selected, the parameter background becomes blue.

Courtesy of TESLA, INC.

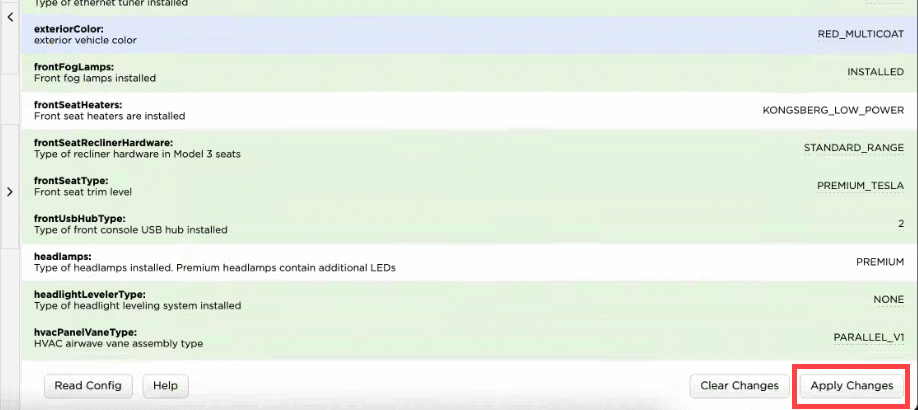

Click Apply Changes .

Courtesy of TESLA, INC.

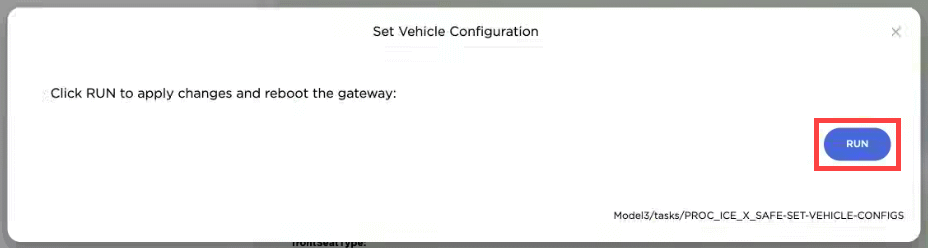

In the new window that opens, click Run to apply the changes and reboot the gateway.

Courtesy of TESLA, INC.

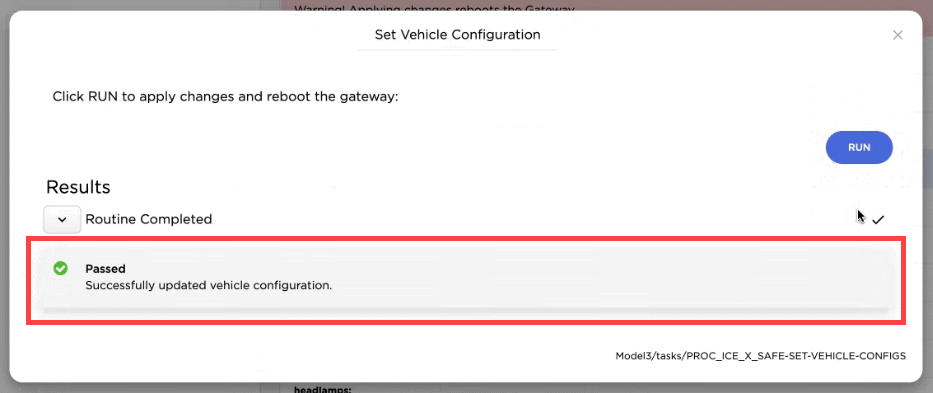

The progress is shown, and after reboot, the window indicates a successful update to the vehicle configuration.

Courtesy of TESLA, INC.
If another service procedure requested verification or modification of a gateway configuration parameter, return to that procedure now. Otherwise, continue to the next step.
Disconnect the laptop with Toolbox 3 from the vehicle. See Toolbox 3 - Connect and Disconnect .
