Ambient Light Module - Front Door Trim - LH - Remove and Replace: Install

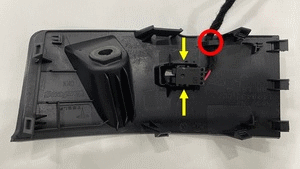

  1. Install the ambient module to the bolt cover.
    G00624457Courtesy of TESLA, INC.

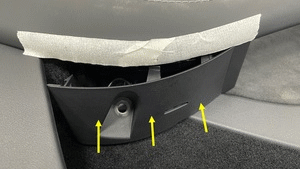

  2. Install the bolt cover to the trim panel.
    G00624458Courtesy of TESLA, INC.

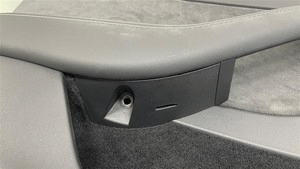

  3. Remove the masking tape from the trim panel.
    G00624459Courtesy of TESLA, INC.

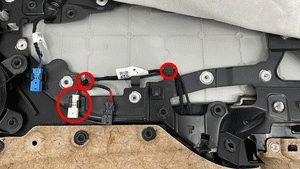

  4. Install the connector (x1) to the trim panel.
    G00624460Courtesy of TESLA, INC.
  5. Install the LH front door NVH pad. See NVH Pad - Door - Front - LH - Remove And Replace .
  6. Install the LH front door trim panel. See Panel - Door Trim - Front - LH - Remove And Install .
  7. Install the LH front door puddle light. See Puddle Light - Front Door - LH - Remove And Replace .
  8. Install the LH front door tweeter. See Tweeter - Front Door - LH - Remove And Replace .
  9. Raise the window and close the door.
