Wiper Module (RHD) - Remove And Replace: Remove
- Remove the cowl screen panel. See PANEL - COWL SCREEN (REMOVE AND REPLACE)
.

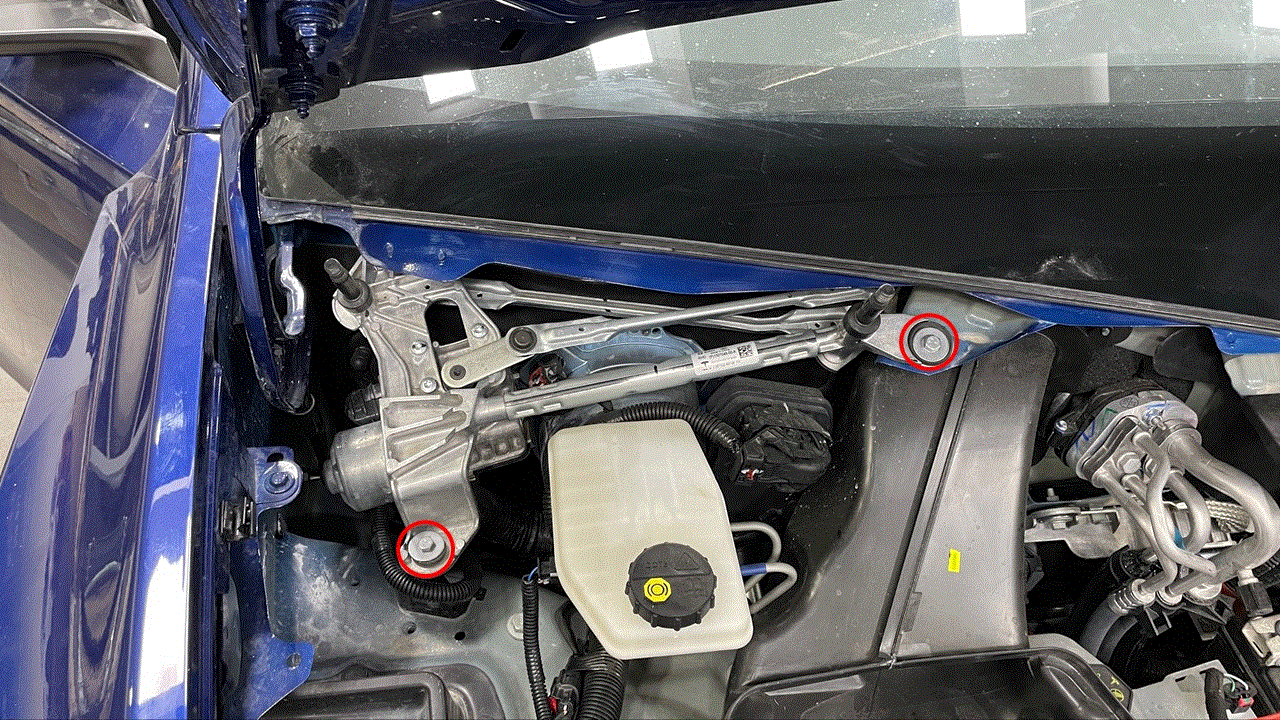

- Remove the bolts that attach the wiper module to the vehicle.
NOTE:
Use of the following tool(s) is recommended:
- 10 mm socket
- 2 in extension
 Courtesy of TESLA, INC.
|

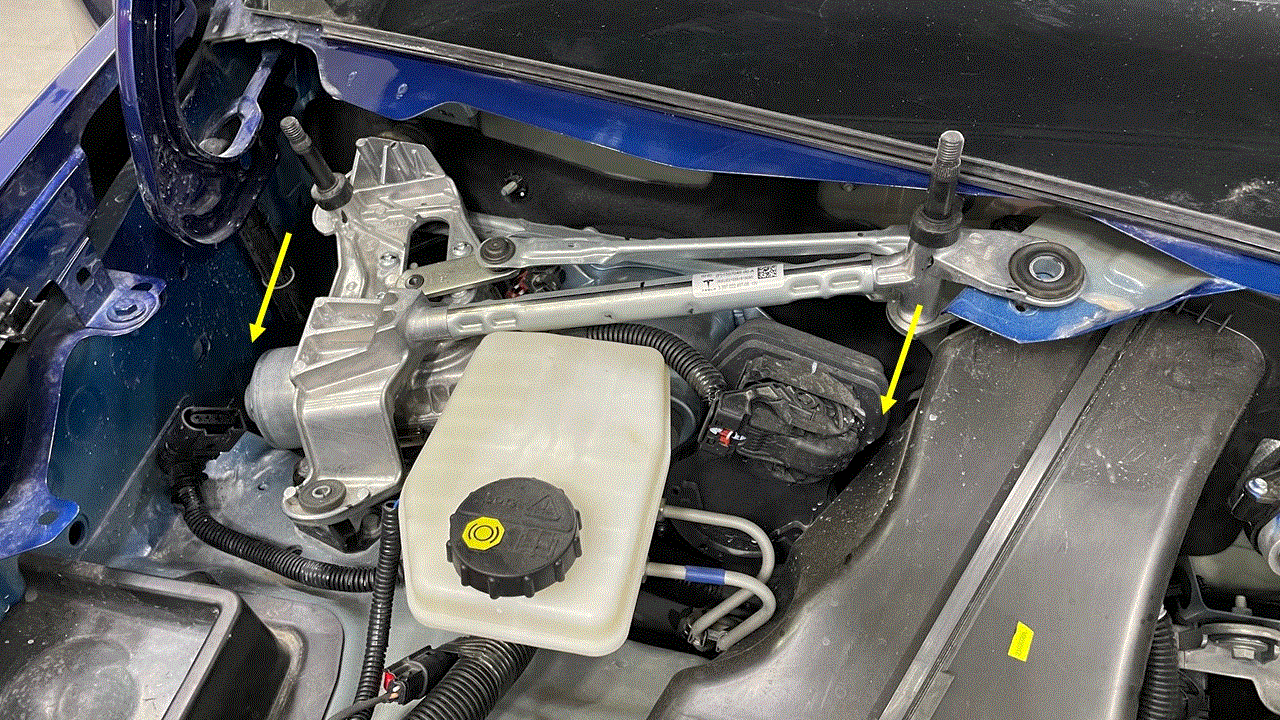

- Carefully pull the wiper module towards the front of the vehicle to release the rubber anchor from the bracket on the bulkhead.
 Courtesy of TESLA, INC.
|

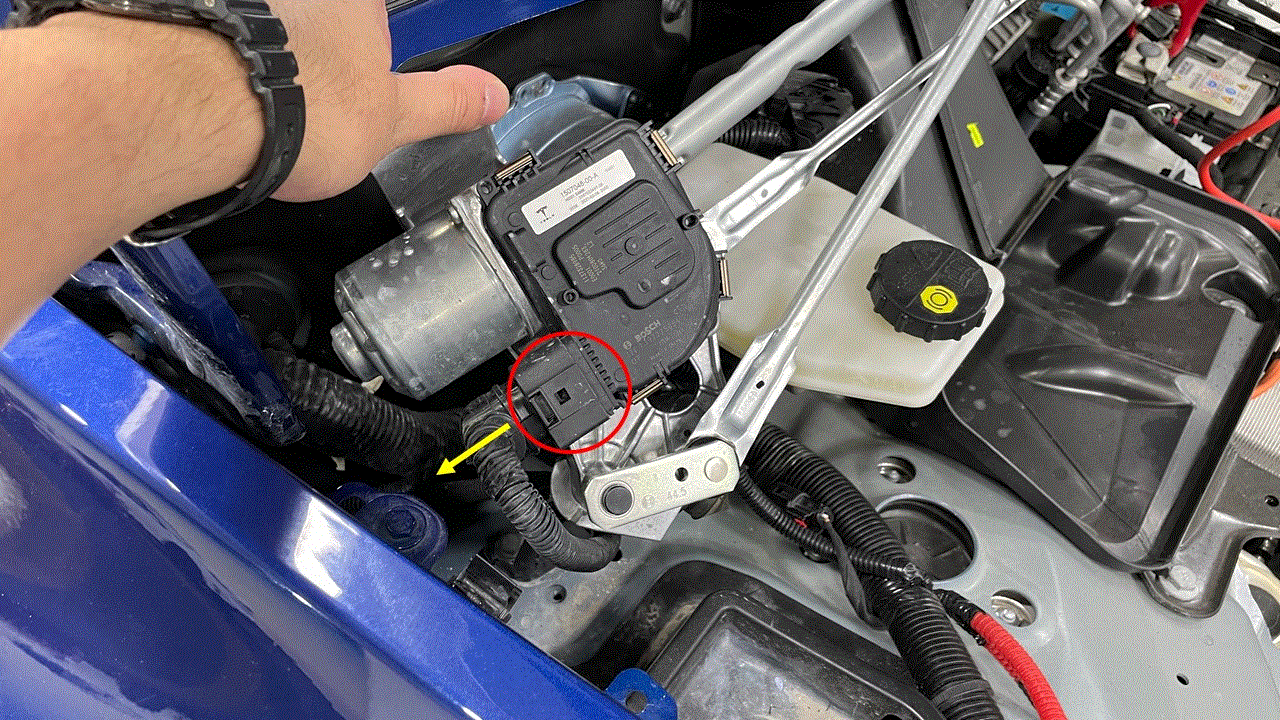

- Rotate the wiper module, and then disconnect the electrical connector from the wiper module.
 Courtesy of TESLA, INC.
|
- Remove the wiper module from the vehicle.
