Remove

  1. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace) .

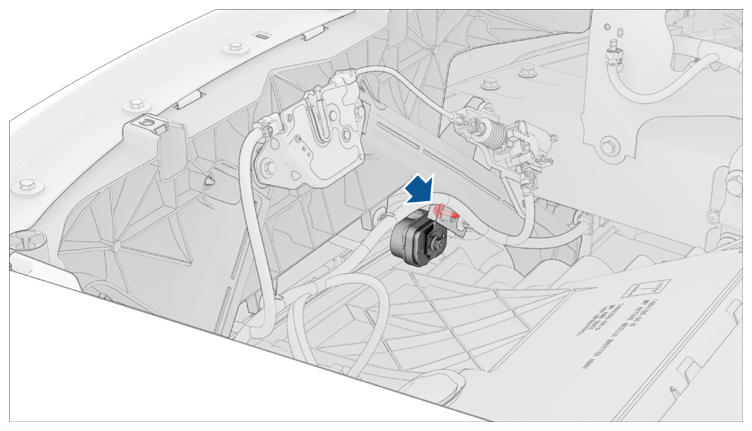

  2. Remove the bolt that attaches the battery backed siren bracket to the vehicle.

    8 N.m (5.9 ft-lbs)

    G14834043Courtesy of TESLA, INC.
  3. Remove the battery backed siren from the bracket.
  4. Disconnect the battery backed siren connector, and then remove the battery backed siren from the vehicle.
