Connector End View - X652 [01/09/2020 - 01/12/2021]

Location:

Fig 1: Connector Component Location - X652 [01/09/2020 - 01/12/2021]
G14847818Courtesy of TESLA, INC.

Connector Detail: AMP 936119-1

Color: BK

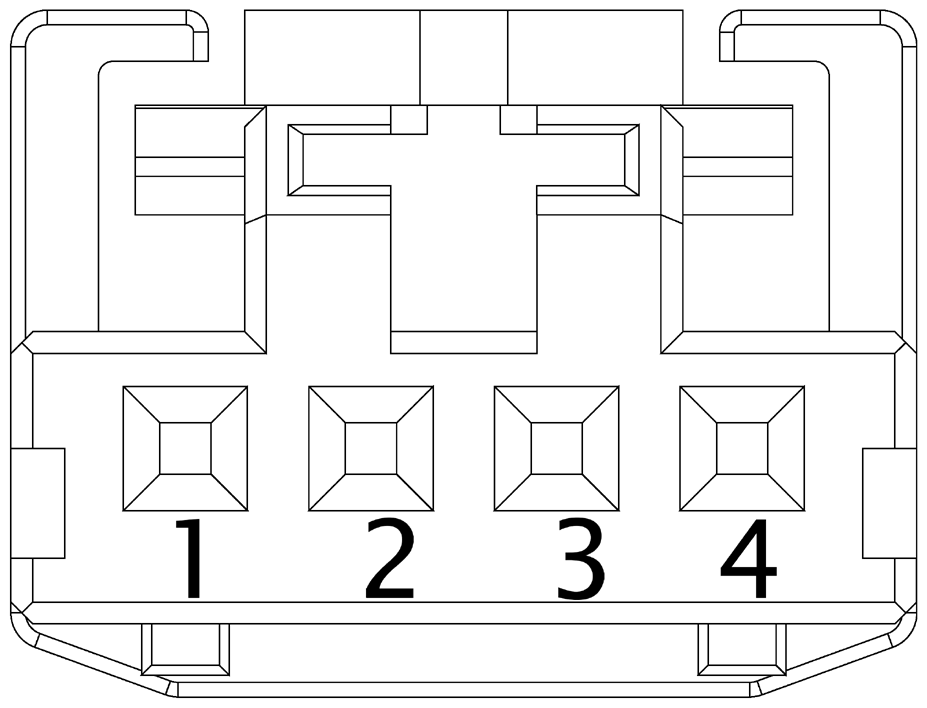

Fig 2: Connector End View - X652 [01/09/2020 - 01/12/2021]
G14847819Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity Color Size Plate Destination
1       X052-45
2       X052-44
3       X052-22
4       X052-20
