Ambient Light Module - Front Door Trim - LH - Remove and Replace: Remove

  1. Open the front LH door, and fully lower the window.
  2. Remove the LH front door tweeter. See Tweeter - Front Door - LH - Remove And Replace .
  3. Remove the LH front door puddle light. See Puddle Light - Front Door - LH - Remove And Replace .
  4. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH - Remove And Install .
  5. Remove the LH front door NVH pad. See NVH Pad - Door - Front - LH - Remove And Replace .

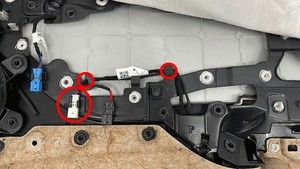

  6. Remove the connector (x1) from the trim panel and release the ambient module from the clips (x2).
    G00624451Courtesy of TESLA, INC.

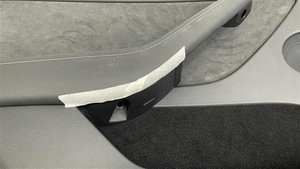

  7. Apply maksing tape around the work area to protect the trim panel.
    G00624452Courtesy of TESLA, INC.

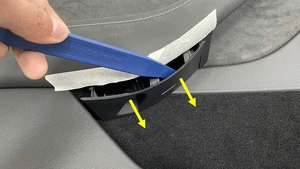

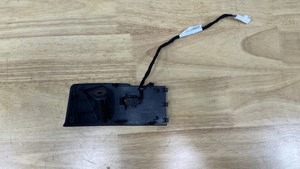

  8. Use a plastic trim tool to gently remove the bolt cover from the trim panel.
    G00624453Courtesy of TESLA, INC.
    G00624454Courtesy of TESLA, INC.

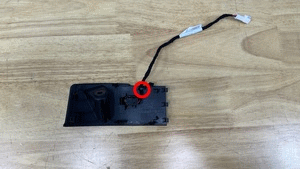

  9. Gently pry the tab to remove the ambient module from the bolt cover.
    G00624455Courtesy of TESLA, INC.
    G00624456Courtesy of TESLA, INC.
