Sensor - Impact - C-Pillar - LH - Remove And Replace: Install

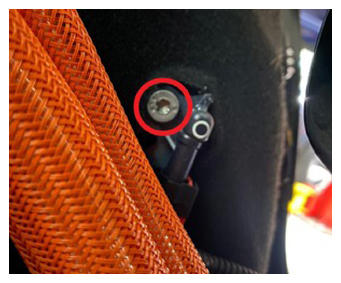

Position the LH C-pillar impact sensor on the vehicle, and then install a new bolt that attaches the sensor to the vehicle.
8 N.m (5.9 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
- Ratchet/torque wrench
- Torx T30 socket
Courtesy of TESLA, INC.

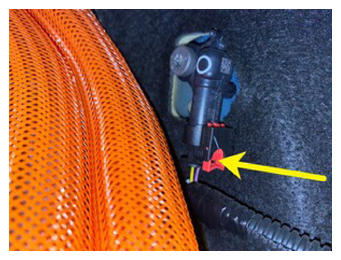

Connect the LH C-pillar impact sensor connector.

Courtesy of TESLA, INC.
Connect LV power. See LV Power (Disconnect and Connect) .
Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
Close the hood.
Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace) .
Install the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace) .
Install the LH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace) .
Unfold the LH 3rd row seat into original position.
Close the liftgate.
Install LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace) .
Calibrate the rear doors.
NOTE: If the "calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors.
Raise the LH and RH front windows.
Close the LH front door.
