Halfshaft - Front Drive Unit - LH - Remove And Replace: Remove

  1. Move the vehicle to a 2 post lift. See Raise Vehicle - 2 Post Lift .
  2. Remove the LH front wheel cap.
  3. Loosen the LH front axle nut.
  4. Remove the LH front wheel. See Wheel (Remove and Install) .

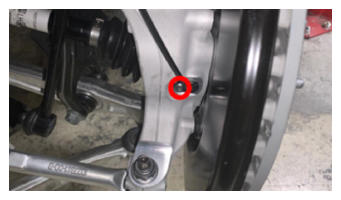

  5. Remove the screw that attaches the LH front wheel speed sensor to the LH front knuckle, and then remove the sensor from the knuckle.
    G15411937Courtesy of TESLA, INC.

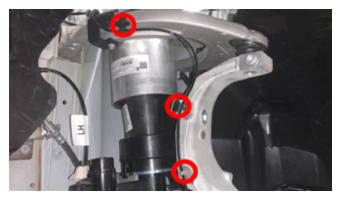

  6. Release the clips (x3) that attach LH front wheel speed sensor harness to the LH front knuckle, and then move the sensor aside.
    G15411938Courtesy of TESLA, INC.

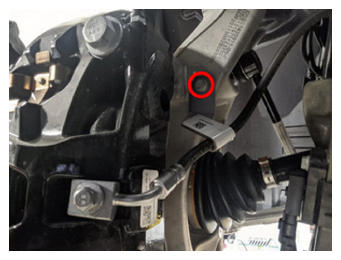

  7. Remove the bolt that attaches the LH front brake hose to the LH front knuckle.
    G15411939Courtesy of TESLA, INC.

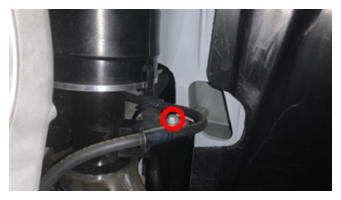

  8. Remove the bolt that attaches the LH front brake hose to the LH front active dampener.
    G15411940Courtesy of TESLA, INC.

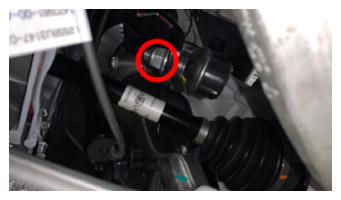

  9. Remove and discard the nut that attaches the LH front stabilizer bar drop link to the front stabilizer bar, and then remove the drop link from the stabilizer bar.
    NOTE: To prevent ball joint damage, use a T40 tool to prevent the LH drop link ball joint stud from turning while removing the nut.
    G15411941Courtesy of TESLA, INC.

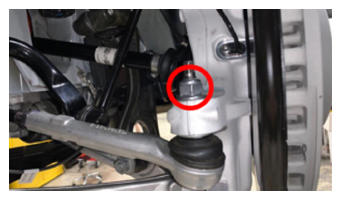

  10. Remove and discard the nut that attaches the LH tie rod to the LH front knuckle, and then remove the tie rod from the knuckle.
    G15411942Courtesy of TESLA, INC.

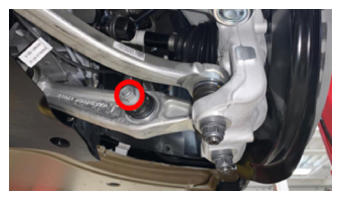

  11. Remove the bolt and nut that attach the LH front active dampener to the LH front lower aft link.
    G15411943Courtesy of TESLA, INC.

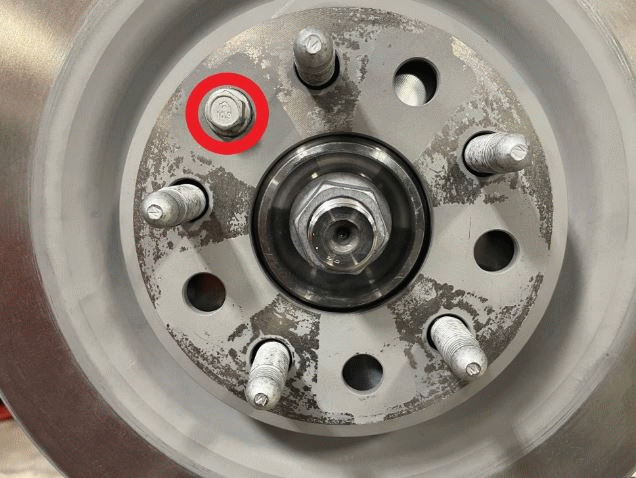

  12. If installed, remove and discard the bolt that attaches the brake rotor to the hub.
    NOTE: A new bolt will not  be installed.

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    G00634509Courtesy of TESLA, INC.

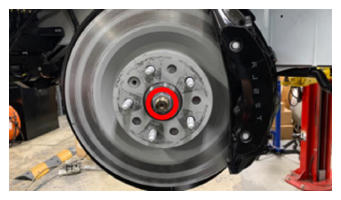

  13. Remove the nut and discard the washer that attach the LH front halfshaft to the LH front hub.
    NOTE: If washers are not present, procure a set so they can be installed later in this procedure.

    Tip: Use of the following tool(s) is recommended:

    • 32 mm deep impact socket
    G15411945Courtesy of TESLA, INC.

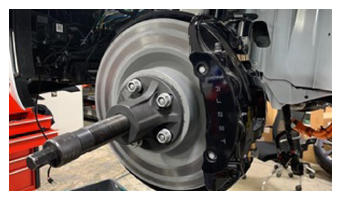

  14. Install the hydraulic hub puller onto the LH front hub, and then install and hand-tighten the nuts (x5) and washers (x5) that attach the puller to the hub.
    G15411946Courtesy of TESLA, INC.

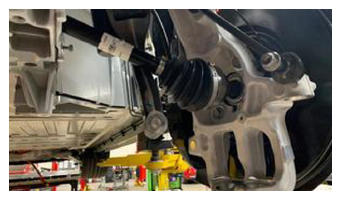

  15. Use the hydraulic hub puller to free the LH front halfshaft from the LH front hub splines.
    G15411947Courtesy of TESLA, INC.

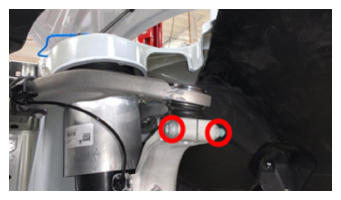

  16. Remove the bolt, and discard the nut that attach the LH front upper control arm to the LH front knuckle, and then remove the control arm from the knuckle.
    G15411948Courtesy of TESLA, INC.

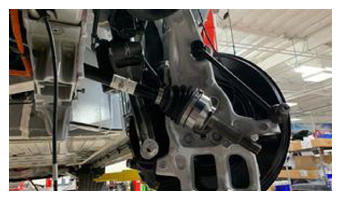

  17. Remove the LH front halfshaft from the LH front hub.
    G15411949Courtesy of TESLA, INC.

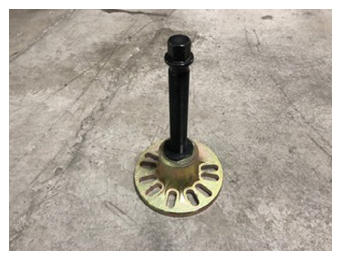

  18. Remove the nuts (x5) and washers (x5), and then remove the hydraulic hub puller from LH front hub.
    G15411950Courtesy of TESLA, INC.
  19. Remove the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace) .

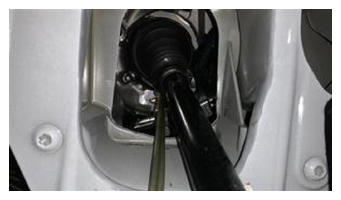

  20. Install the axle removal tool around the inner joint of the LH front halfshaft.
    NOTE: Make sure that the cable loop is not wrapped around the inner boot.
    G15411952Courtesy of TESLA, INC.

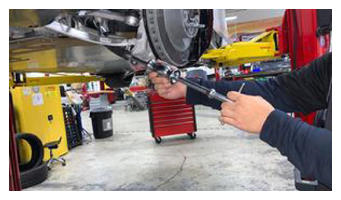

  21. Use the slide hammer to release the LH front halfshaft from the front drive unit, and then remove the halfshaft from the drive unit.
    G15411953Courtesy of TESLA, INC.
