Liftgate - Remove And Replace: Remove

  1. Open the LH and RH front doors.

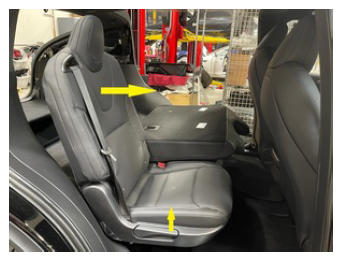

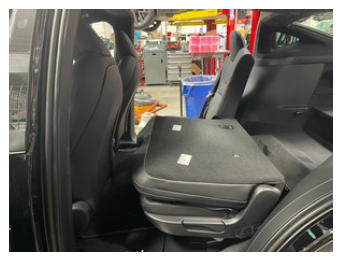

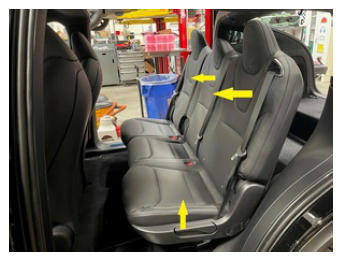

  2. Move the LH and RH front seats fully forward.
  3. Open the LH and RH rear doors.

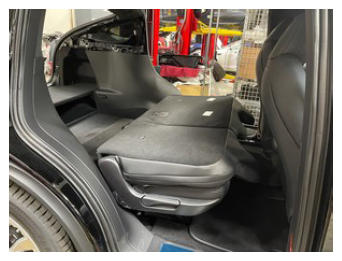

  4. Fold the LH and RH 2nd row seats into down position if equipped with bench seat.
    G15389906Courtesy of TESLA, INC.
    G15389907Courtesy of TESLA, INC.
    G15389908Courtesy of TESLA, INC.
    G15389909Courtesy of TESLA, INC.
  5. Open the liftgate.
  6. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  7. Remove the liftgate speaker grille. Grille - Speaker - Liftgate (Remove and Replace) .
  8. Remove the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace) .
  9. Remove the RH trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
  10. Remove the RH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace) .
  11. Remove the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace) .

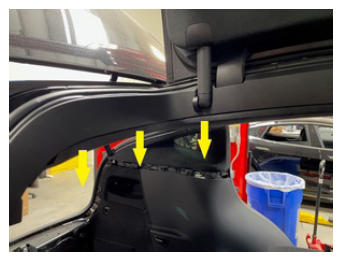

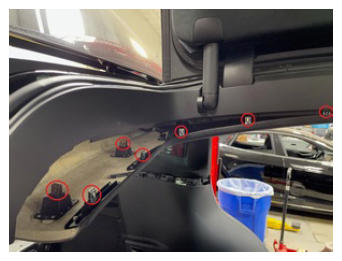

  12. Release the clips (x7) that partially attach the RH rear side of the headliner.
    G15389910Courtesy of TESLA, INC.
    G15389911Courtesy of TESLA, INC.
  13. Remove the RH active spoiler catch basin cover. See Catch Basin - Active Spoiler - LH (Remove and Replace) .

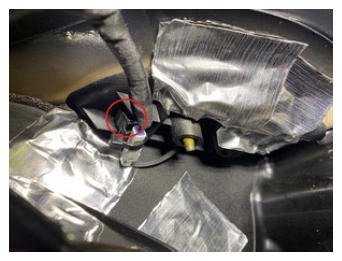

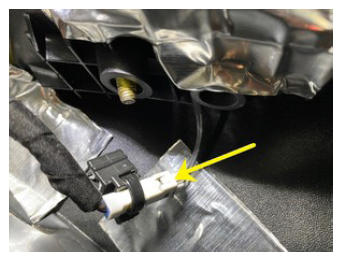

  14. Release the clip from the liftgate assembly, and then disconnect the high mounted brake light electrical connector.
    G15389912Courtesy of TESLA, INC.
    G15389913Courtesy of TESLA, INC.

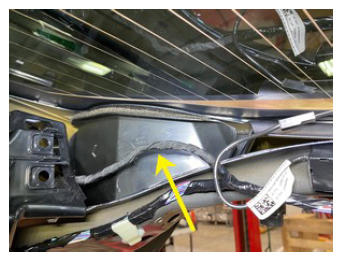

  15. Remove the LH catch basin cover.
    G15389914Courtesy of TESLA, INC.
  16. Remove the FM antenna amplifiers. See Antenna Amplifier - FM (Remove and Replace) .
  17. Remove the antenna ground noise filter. See Noise Filter - Ground - Antenna (Remove and Replace) .
  18. Remove the antenna LV noise filter. See Noise Filter - LV - Antenna (Remove and Replace) .
  19. Close the liftgate.
  20. Remove the high mounted brake light. See Light - Brake - High Mounted (Remove and Replace) .

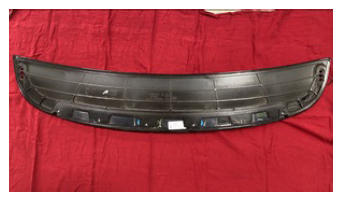

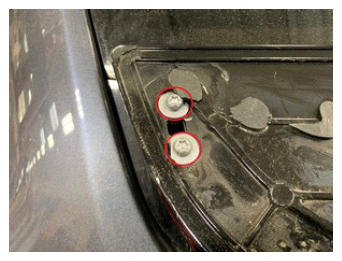

  21. Remove the screws (x4) that attach the spoiler assembly.

    6 N.m (4.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket

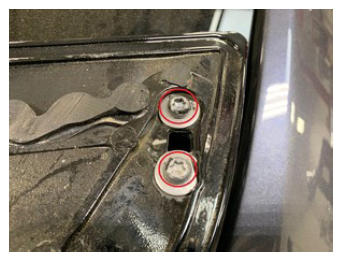

    G15389915Courtesy of TESLA, INC.
    G15389916Courtesy of TESLA, INC.
    G15389917Courtesy of TESLA, INC.
  22. Remove the backlight glass. See BACKLIGHT GLASS (REMOVE AND REPLACE) .

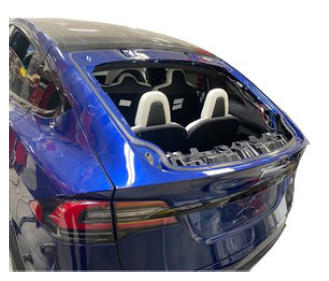

  23. Remove the masking tape from the liftgate assembly.
    G15389918Courtesy of TESLA, INC.
  24. Open the liftgate.

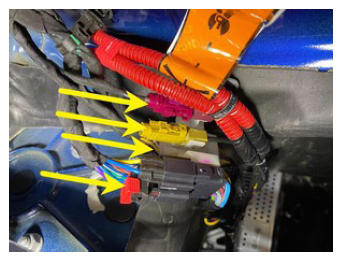

  25. Release the locking tab, and then disconnect the liftgate harness electrical connectors (x4).
    G15389919Courtesy of TESLA, INC.

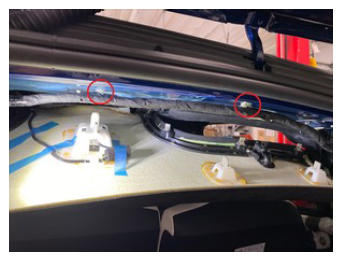

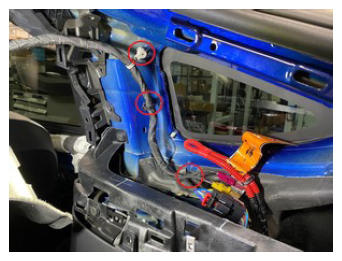

  26. Remove the clips (x4) that attach the liftgate electrical harness to the body.
    G15389920Courtesy of TESLA, INC.
    G15389921Courtesy of TESLA, INC.

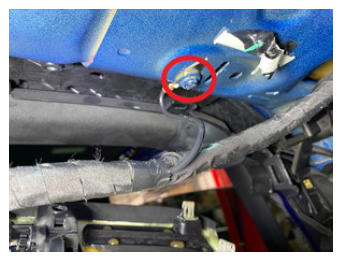

  27. Remove the bolt that attaches the ground strap to the body.

    9 N.m (6.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15389922Courtesy of TESLA, INC.

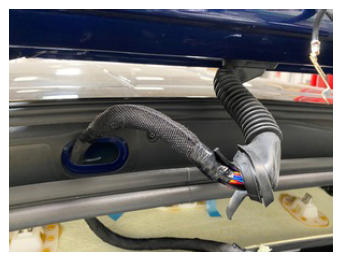

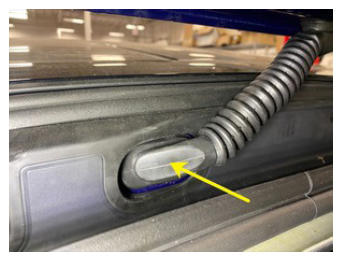

  28. Release the grommet, and then remove the harness from the vehicle.
    G15389923Courtesy of TESLA, INC.
    G15389924Courtesy of TESLA, INC.
  29. Remove the LH and RH liftgate speakers. See Speaker - Liftgate - LH (Remove and Replace) .
  30. Remove the LH and RH liftgate tweeters. See Tweeter - Liftgate - LH (Remove and Replace) .

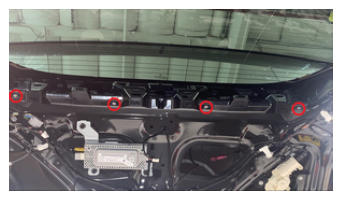

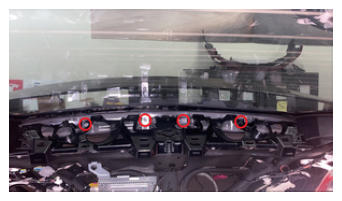

  31. Remove the patch bolts (x8) that attach the liftgate bracket trim.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 bit
    NOTE: Discard the bolts after removal.
    G15389925Courtesy of TESLA, INC.
    G15389926Courtesy of TESLA, INC.

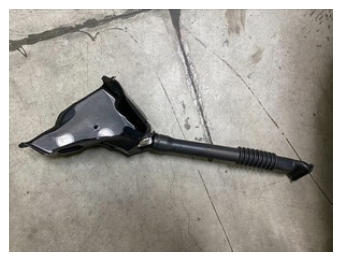

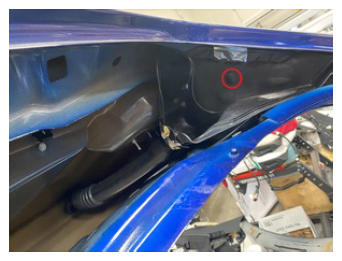

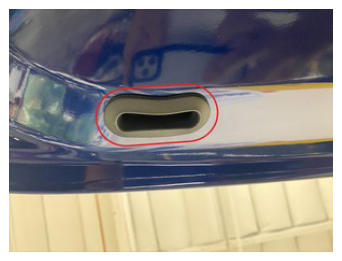

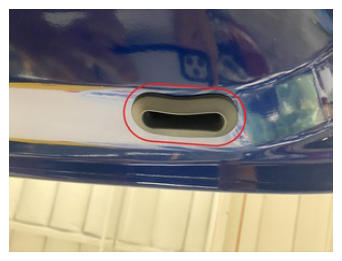

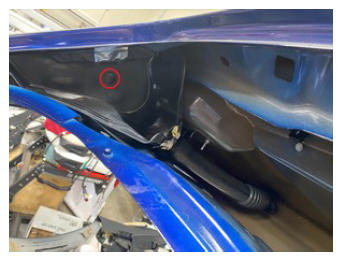

  32. Release the clips (x2) that attach the RH and LH liftgate water catch basin assemblies.
    G15389927Courtesy of TESLA, INC.
    G15389928Courtesy of TESLA, INC.
    G15389929Courtesy of TESLA, INC.
    G15389930Courtesy of TESLA, INC.
    G15389931Courtesy of TESLA, INC.
    G15389932Courtesy of TESLA, INC.

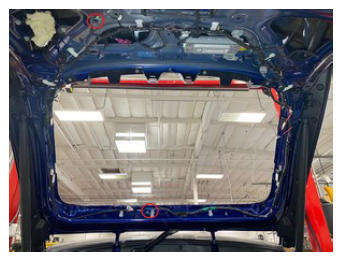

  33. Remove the bolts (x2) that attach the ground straps to the liftgate.

    8 N.m (5.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15389933Courtesy of TESLA, INC.

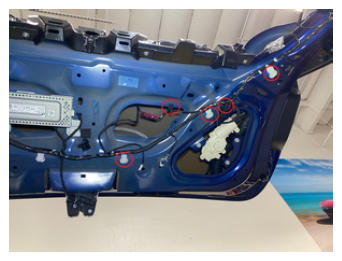

  34. Remove the clips (x17) that attach the liftgate harness to the liftgate assembly, and then remove the harness from the vehicle.
    G15389934Courtesy of TESLA, INC.
    G15389935Courtesy of TESLA, INC.
    G15389936Courtesy of TESLA, INC.

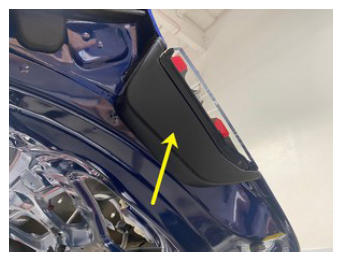

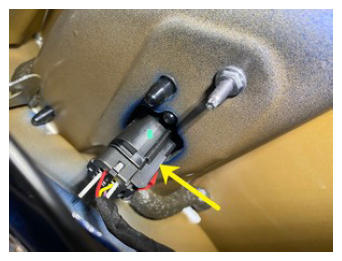

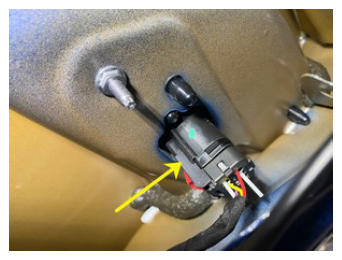

  35. Release the locking tabs, and then disconnect the LH and RH rear fog/reverse light electrical connectors (x2).
    G15389937Courtesy of TESLA, INC.
    G15389938Courtesy of TESLA, INC.

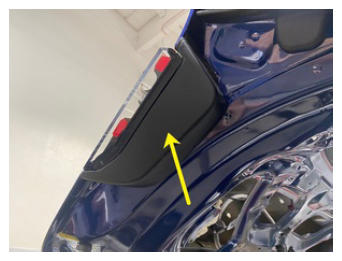

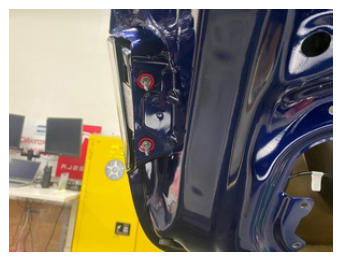

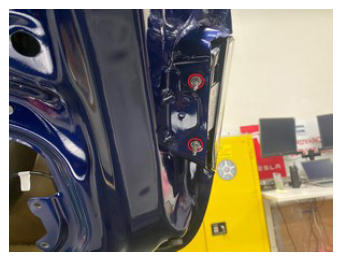

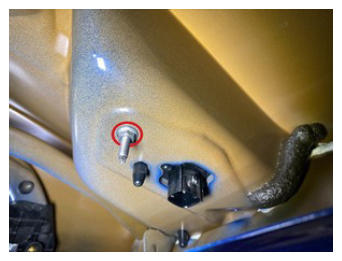

  36. Remove the nuts (x6) that attach the LH and RH rear fog/reverse light assemblies, and then remove them from the liftgate assembly.

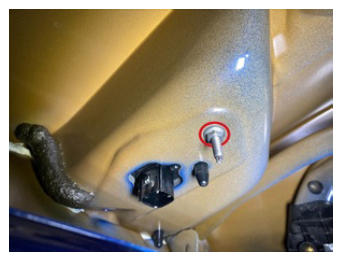

    4 N.m (2.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    NOTE: Remove the light trim covers to gain access to the fasteners that attach the light assemblies to the liftgate.
    G15389939Courtesy of TESLA, INC.
    G15389940Courtesy of TESLA, INC.
    G15389941Courtesy of TESLA, INC.
    G15389942Courtesy of TESLA, INC.
    G15389943Courtesy of TESLA, INC.
    G15389944Courtesy of TESLA, INC.

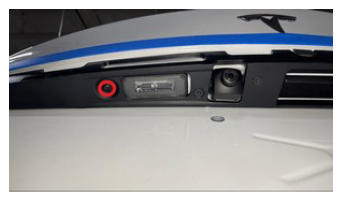

  37. Remove the bolts (x3) that attach the liftgate applique bracket.

    2 N.m (1.5 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    G15389945Courtesy of TESLA, INC.
    G15389946Courtesy of TESLA, INC.

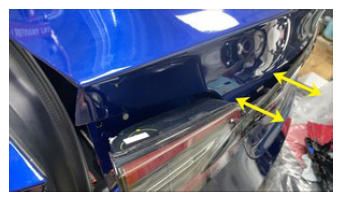

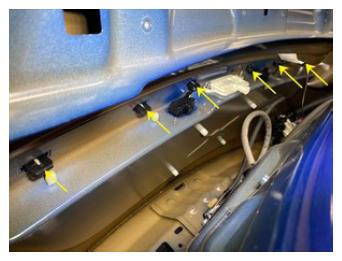

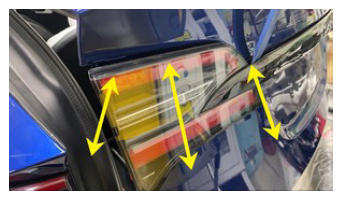

  38. Release the clips (x6) that attach the liftgate taillight and applique bracket assembly to the liftgate.
    NOTE: Note the center of the applique is secured by clips.
    NOTE: Take care not to damage the applique or body.
    NOTE: The applique can let rest on the liftgate.
    G15389947Courtesy of TESLA, INC.
    G15389948Courtesy of TESLA, INC.
    G15389949Courtesy of TESLA, INC.

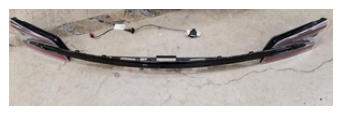

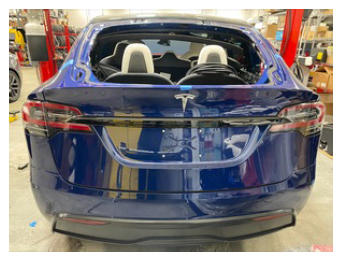

  39. Put the removed liftgate tail lights, applique, and bracket assembly in a safe area.
    G15389950Courtesy of TESLA, INC.
    G15389951Courtesy of TESLA, INC.
  40. Remove the rear facing camera. See Camera - Rear Facing (Remove and Replace) .

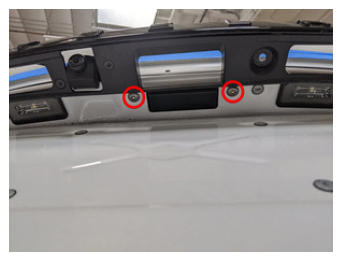

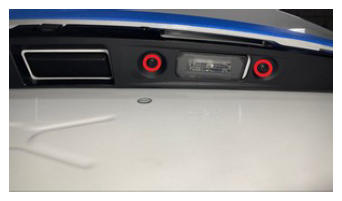

  41. Remove the bolts (x2) that attach the liftgate handle to the liftgate.

    14.4 N.m (10.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    NOTE: Support the liftgate handle from the inside when released.
    G15389952Courtesy of TESLA, INC.

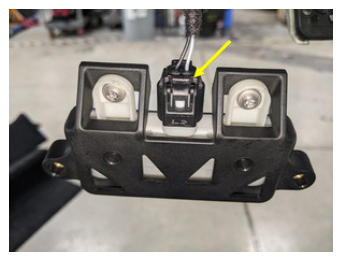

  42. Disconnect the liftgate handle assembly electrical connector.
    G15389953Courtesy of TESLA, INC.

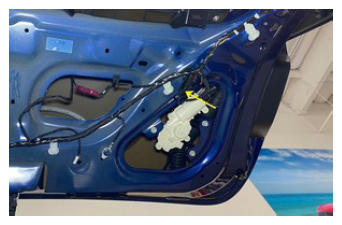

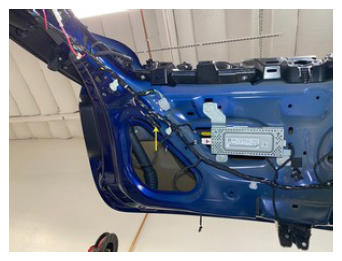

  43. Disconnect the LH and RH liftgate anti-pinch electrical connectors.
    NOTE: Use a pocket screwdriver to release the tab on the connectors.
    G15389954Courtesy of TESLA, INC.
    G15389955Courtesy of TESLA, INC.

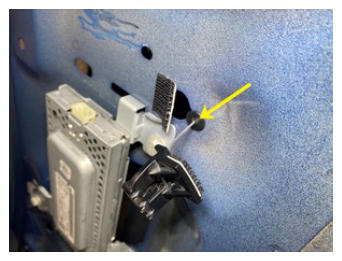

  44. Release the holding tab that attaches the liftgate latch power release cable to the liftgate.
    G15389956Courtesy of TESLA, INC.
  45. Remove the liftgate latch. See Latch - Liftgate (Remove and Replace) .
  46. Remove the liftgate cinching actuator. See Actuator - Cinching - Liftgate (Remove and Replace) .

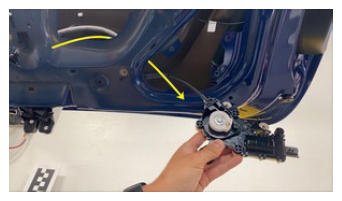

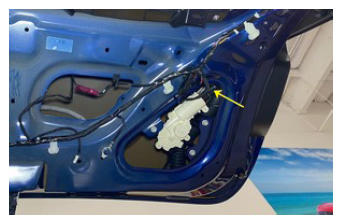

  47. Remove the liftgate high force cinching actuator with the liftgate latch power release from liftgate, and then disconnect the electrical connector.
    NOTE: Release the emergency release cable from the liftgate.
    G15389957Courtesy of TESLA, INC.
    G15389958Courtesy of TESLA, INC.

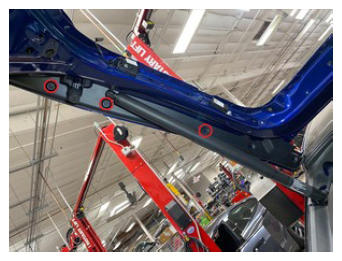

  48. Remove the remaining clips (x3) that attach the LH rear liftgate pinch strip to the liftgate.
    G15389959Courtesy of TESLA, INC.

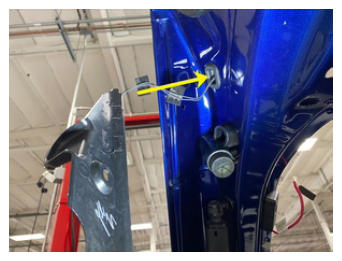

  49. Remove the LH pinch strip grommet, and then remove the pinch strip from the liftgate.
    G15389960Courtesy of TESLA, INC.

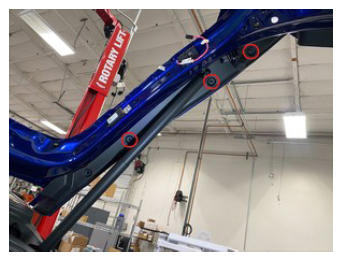

  50. Remove the remaining push pin clips (x3) that attach the RH rear liftgate pinch strip to the liftgate.
    G15389961Courtesy of TESLA, INC.

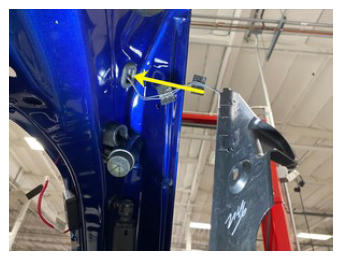

  51. Remove the RH pinch strip grommet, and then remove the pinch strip from the liftgate.
    G15389962Courtesy of TESLA, INC.

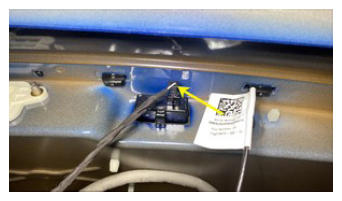

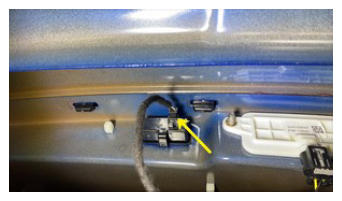

  52. Disconnect the RH and LH license plate light electrical connectors (x2).
    G15389963Courtesy of TESLA, INC.
    G15389964Courtesy of TESLA, INC.

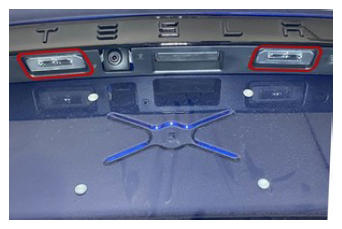

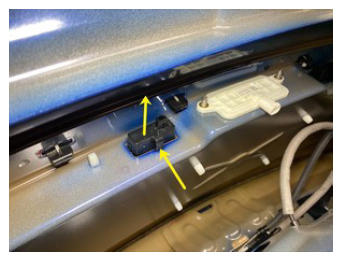

  53. Disconnect the electrical connectors (x2), and then remove the LH and RH license plate lights.
    NOTE: From both sides of the liftgate, press the locking tab on each license plate light to release.
    G15389965Courtesy of TESLA, INC.
    G15389966Courtesy of TESLA, INC.
  54. Remove the radio tuner. See Tuner - FM/HD (Remove and Replace) .
  55. Remove the liftgate drain plug.

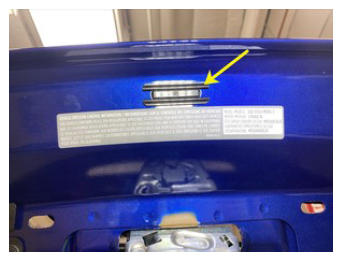

    G15389967Courtesy of TESLA, INC.

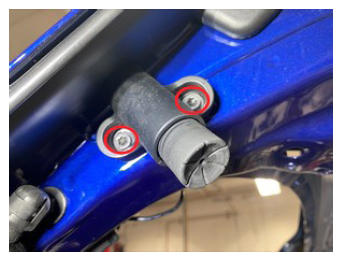

  56. Remove the screws (x4) that attach the LH and RH liftgate wedge dampers to the liftgate.

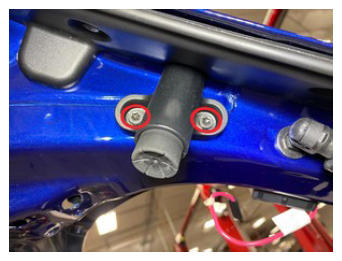

    12 N.m (8.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    G15389968Courtesy of TESLA, INC.
    G15389969Courtesy of TESLA, INC.

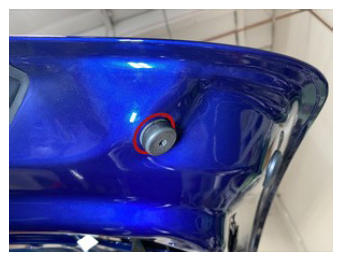

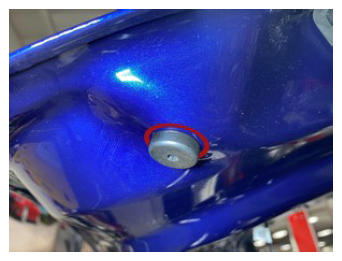

  57. Remove the LH and RH liftgate lower bumpers from the liftgate.
    G15389970Courtesy of TESLA, INC.
    G15389971Courtesy of TESLA, INC.

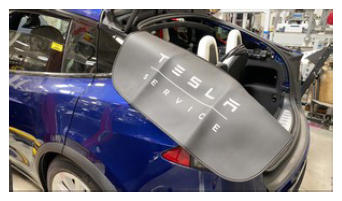

  58. Place a fender cover on the LH side of the vehicle.
    G15389972Courtesy of TESLA, INC.

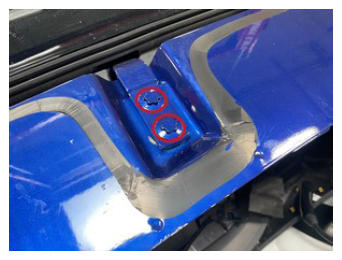

  59. Mark the fastener location for installation.
    NOTE: Location of bolts for hinge can be marked using masking tape, sharpie, or lightly scribing with pocket screwdriver.
    G15389973Courtesy of TESLA, INC.

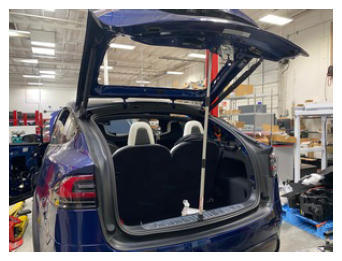

  60. Install a hood prop to support the liftgate.
    G15389974Courtesy of TESLA, INC.

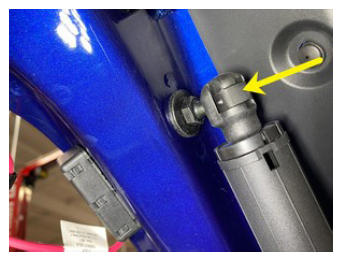

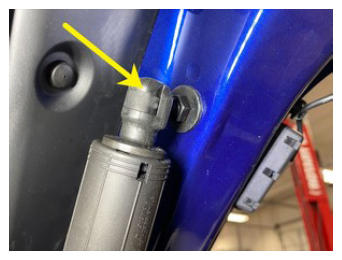

  61. Release the clips (x2) that attach the LH and RH liftgate struts to the liftgate.
    G15389975Courtesy of TESLA, INC.
    G15389976Courtesy of TESLA, INC.

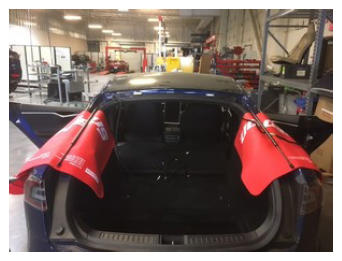

  62. With an assistant, remove the liftgate from the vehicle.
    G15389977Courtesy of TESLA, INC.

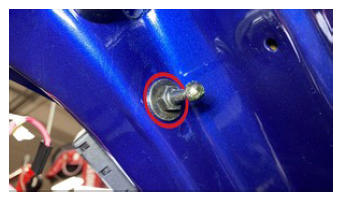

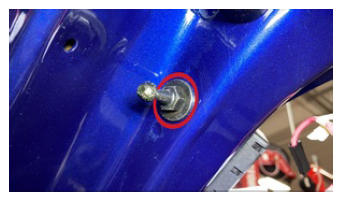

  63. Remove and discard the LH and RH liftgate strut ball studs from the liftgate.

    22 N.m (16.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    NOTE: Discard the strut ball stud after removal.
    G15389978Courtesy of TESLA, INC.
    G15389979Courtesy of TESLA, INC.
  64. With an assistant, remove the bolts (x4) that attach the liftgate hinges to body, and then remove the hinges from the vehicle.

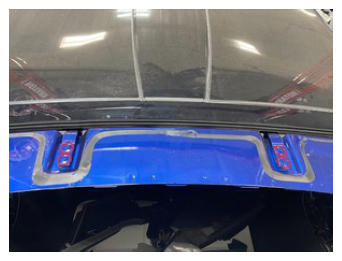

    38 N.m (28.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • External Torx E18
    G15389980Courtesy of TESLA, INC.
