Liftgate - Remove And Replace: Install

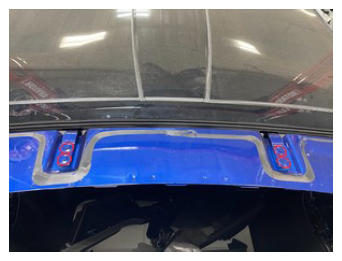

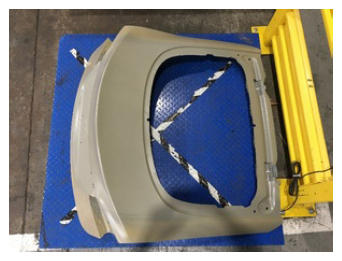

  1. With an assistant, install the liftgate onto the vehicle.

    38 N.m (28.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • External Torx E18
    G15389981Courtesy of TESLA, INC.
    G15389982Courtesy of TESLA, INC.

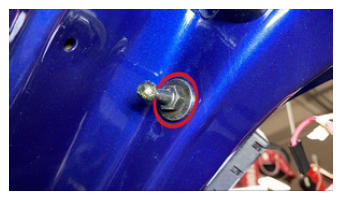

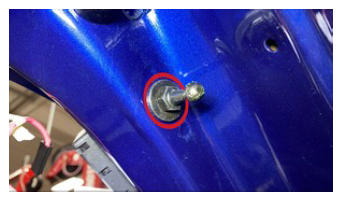

  2. Install the LH and RH liftgate strut ball studs onto the liftgate.

    22 N.m (16.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    NOTE: Install new patched ball studs.
    G15389983Courtesy of TESLA, INC.
    G15389984Courtesy of TESLA, INC.

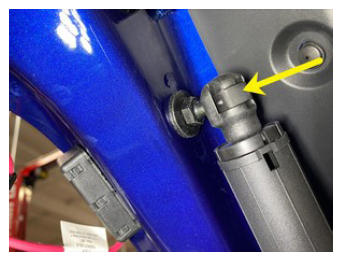

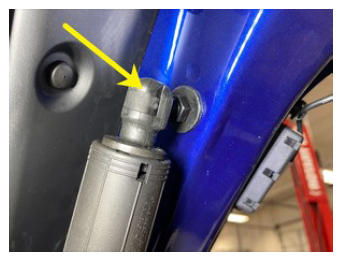

  3. Install the LH and RH liftgate struts to liftgate and secure them with strut clips (x2).
    G15389985Courtesy of TESLA, INC.
    G15389986Courtesy of TESLA, INC.

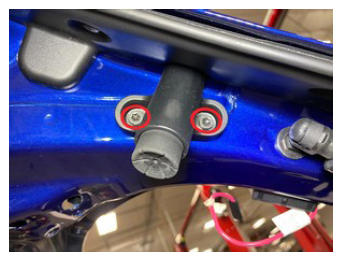

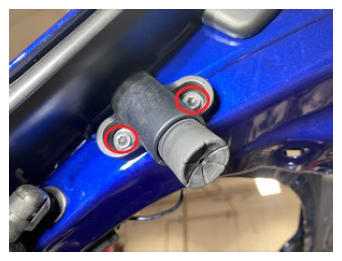

  4. Install the screws (x4) that attach the LH and RH liftgate wedge bumpers onto the liftgate.

    12 N.m (8.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    G15389987Courtesy of TESLA, INC.
    G15389988Courtesy of TESLA, INC.

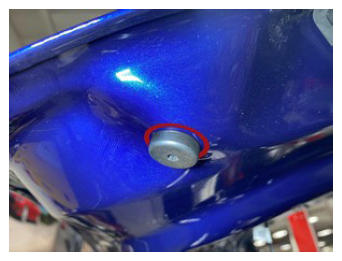

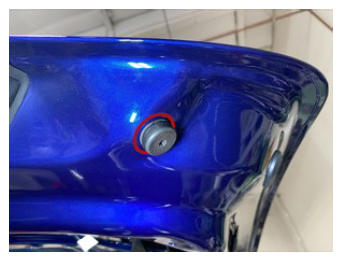

  5. Install the LH and RH liftgate lower bumper stops onto the liftgate.
    G15389989Courtesy of TESLA, INC.
    G15389990Courtesy of TESLA, INC.

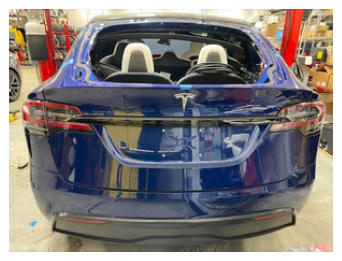

  6. Close the liftgate to check for gap/flush, and that the liftgate closes as expected.
    NOTE: Adjust the hinges if necessary, and then open the liftgate when done.
    G15389991Courtesy of TESLA, INC.

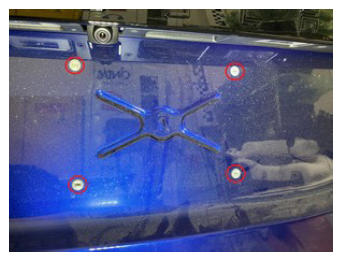

  7. Install the license plate frame screw grommets (x4) onto the liftgate.
    G15389992Courtesy of TESLA, INC.

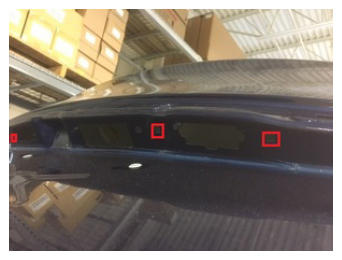

  8. Install the applique bracket screw grommets (x3) onto the liftgate.
    G15389993Courtesy of TESLA, INC.

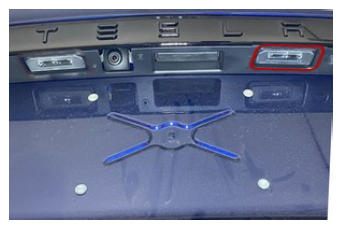

  9. Install the RH license plate light onto the liftgate.
    NOTE: Make sure you hear the locking tab snap into place holding the license plate light in place.
    G15389994Courtesy of TESLA, INC.

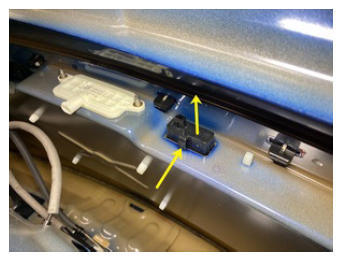

  10. Install the LH license plate light onto the liftgate.
    NOTE: Make sure you hear the locking tabs (x3) snap into place holding the license plate light in place.
    G15389995Courtesy of TESLA, INC.
    G15389996Courtesy of TESLA, INC.

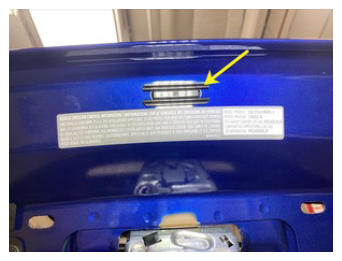

  11. Install the liftgate drain plug.
    G15389997Courtesy of TESLA, INC.

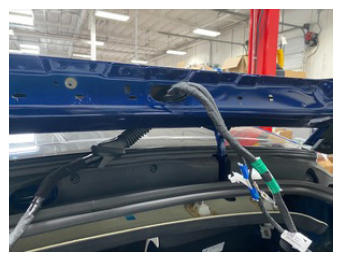

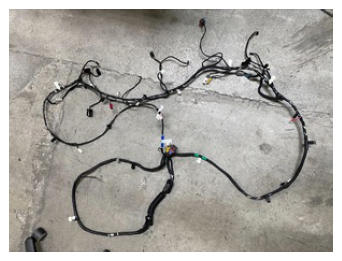

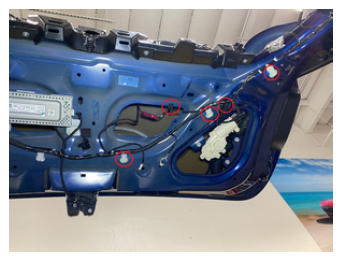

  12. Insert the liftgate harness through the top liftgate grommet hole, and then secure the harness with clips (x17).
    G15389998Courtesy of TESLA, INC.
    G15389999Courtesy of TESLA, INC.
    G15390000Courtesy of TESLA, INC.
    G15390001Courtesy of TESLA, INC.
    G15390002Courtesy of TESLA, INC.

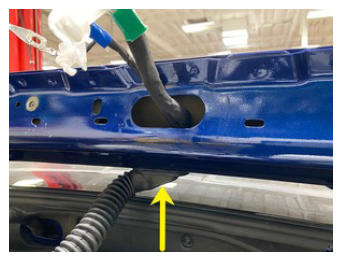

  13. Install the liftgate harness grommet.
    NOTE: Apply P-80 onto the grommet for easier fit.
    NOTE: Make sure the grommet is fully installed.
    G15390003Courtesy of TESLA, INC.

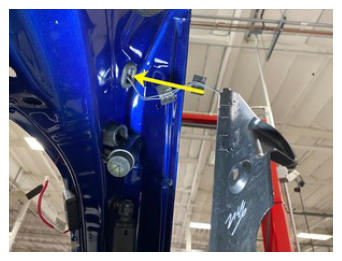

  14. Install the RH pinch strip grommet onto the liftgate.
    NOTE: Apply P-80 onto the grommet for easier fit.
    G15390004Courtesy of TESLA, INC.

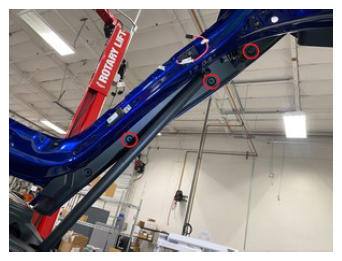

  15. Install the RH rear liftgate pinch strip assembly onto the liftgate and secure it with push clips (x3).
    G15390005Courtesy of TESLA, INC.

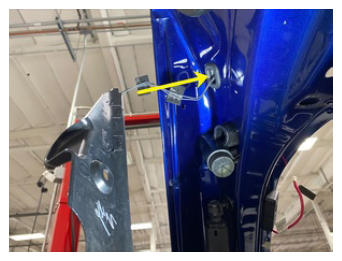

  16. Install the LH pinch strip grommet onto the liftgate.
    NOTE: Apply P-80 onto grommet for easier fit.
    G15390006Courtesy of TESLA, INC.

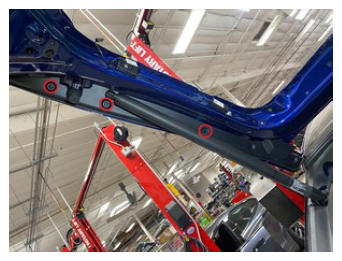

  17. Install the LH rear liftgate pinch strip assembly onto the liftgate and secure it with push clips (x3).
    G15390007Courtesy of TESLA, INC.

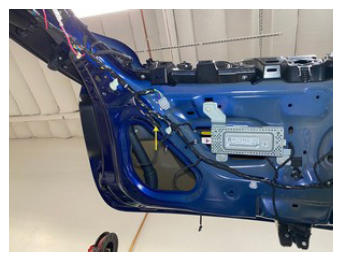

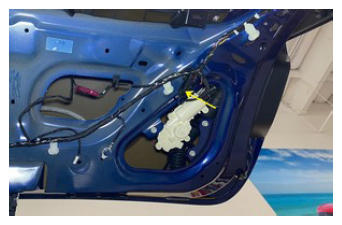

  18. Install the LH and RH liftgate anti pinch electrical connectors (x2).
    G15390008Courtesy of TESLA, INC.
    G15390009Courtesy of TESLA, INC.
  19. Install the backlight glass, but do not install the upper and lower trims or the speaker trim at this time. See BACKLIGHT GLASS (REMOVE AND REPLACE) .

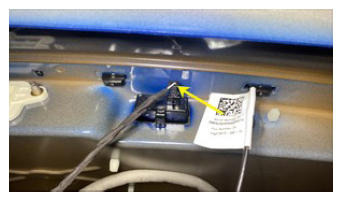

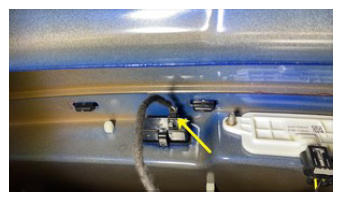

  20. Connect the RH and LH license plate light electrical connectors (x2).
    G15390010Courtesy of TESLA, INC.
    G15390011Courtesy of TESLA, INC.

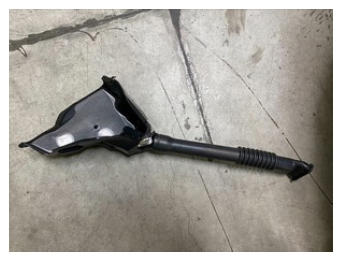

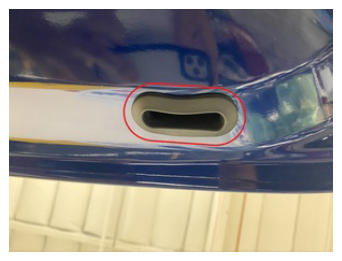

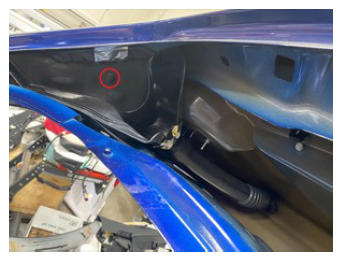

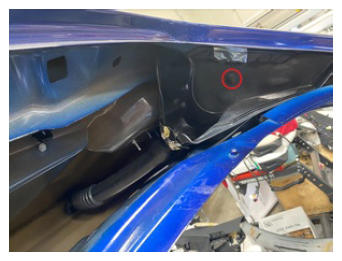

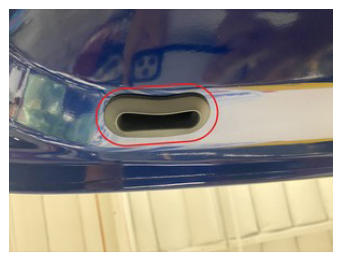

  21. Install the LH and RH liftgate water catch basin assemblies, and secure them with clips (x2).
    G15390012Courtesy of TESLA, INC.
    G15390013Courtesy of TESLA, INC.
    G15390014Courtesy of TESLA, INC.
    G15390015Courtesy of TESLA, INC.
    G15390016Courtesy of TESLA, INC.
    G15390017Courtesy of TESLA, INC.

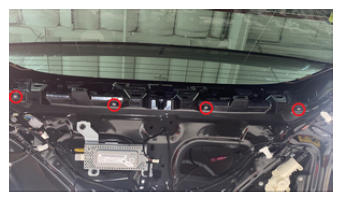

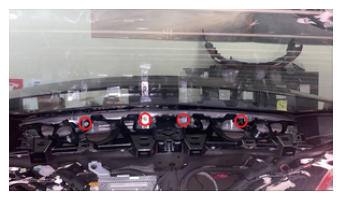

  22. Install new patch bolts (x8) that attach the liftgate bracket trim to the liftgate.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 bit
    NOTE: Install new bolts.
    G15390018Courtesy of TESLA, INC.
    G15390019Courtesy of TESLA, INC.
  23. Install the LH and RH liftgate tweeters. See Tweeter - Liftgate - LH (Remove and Replace) .
  24. Install the LH and RH liftgate speakers. See Speaker - Liftgate - LH (Remove and Replace) .

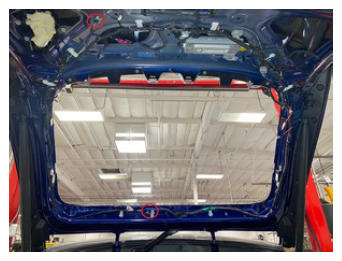

  25. Install the bolts (x2) that attach the ground strap to the liftgate.

    8 N.m (5.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15390020Courtesy of TESLA, INC.
  26. Remove the radio tuner. See Tuner - FM/HD (Remove and Replace) .

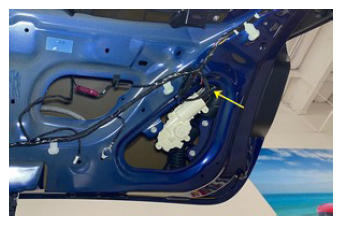

  27. Connect the liftgate high force cinching actuator electrical connector.
    NOTE: Engage the locking tabs.
    G15390021Courtesy of TESLA, INC.

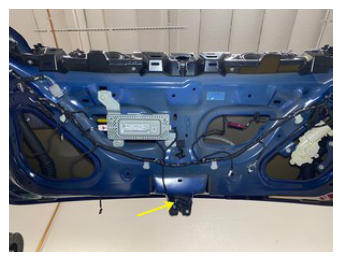

  28. Connect the liftgate latch power release electrical connector.
    G15390022Courtesy of TESLA, INC.
  29. Install the bolts (x2) that attach the harness ground straps to the liftgate.

    9 N.m (6.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15390023Courtesy of TESLA, INC.

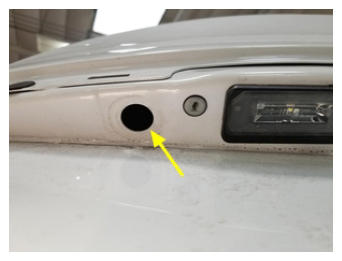

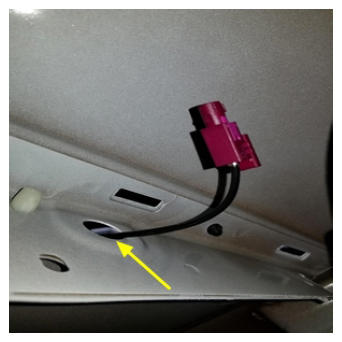

  30. Install the rear facing camera.
    NOTE: Feed the camera electrical connector and grommet seal through the liftgate.
    G15390024Courtesy of TESLA, INC.
    G15390025Courtesy of TESLA, INC.

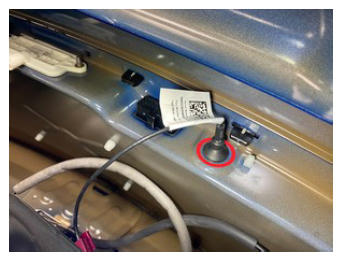

  31. Install the grommet to the liftgate.
    G15390026Courtesy of TESLA, INC.

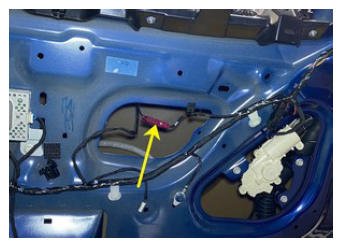

  32. Connect the rear facing camera electrical connector.
    G15390027Courtesy of TESLA, INC.

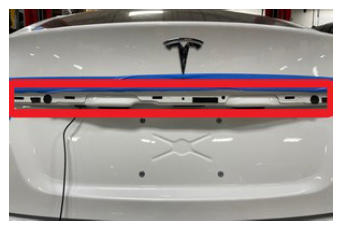

  33. Clean the mating surfaces of the liftgate applique bracket with an IPA wipe.
    NOTE: Clean away any residue. Use your thumb to help roll off the adhesive. Allow 1 minute for the IPA to dry before continuing.
    G15390028Courtesy of TESLA, INC.

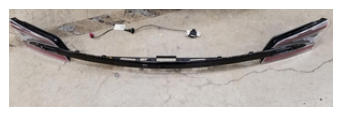

  34. Place the liftgate taillight and applique bracket assembly onto the liftgate body.
    NOTE: Do not fully secure the applique yet. Rest on the liftgate and route rear facing camera onto the applique bracket.
    G15390029Courtesy of TESLA, INC.
    G15390030Courtesy of TESLA, INC.

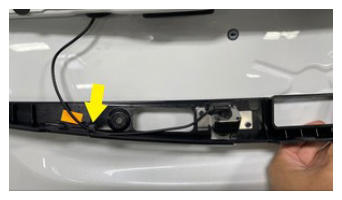

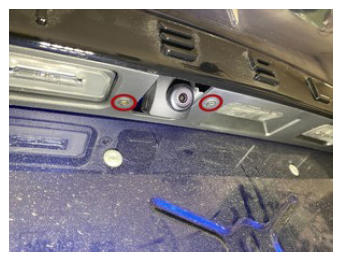

  35. Install new bolts (x2) that attach the rear facing camera to the liftgate bracket.

    1 N.m (.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    NOTE: (x1) hook.
    NOTE: Install new bolts.
    NOTE: Secure the rear facing camera electrical harness.
    G15390031Courtesy of TESLA, INC.
    G15390032Courtesy of TESLA, INC.

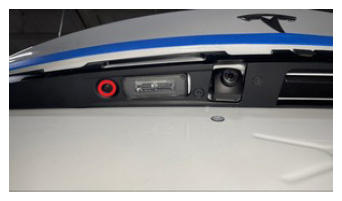

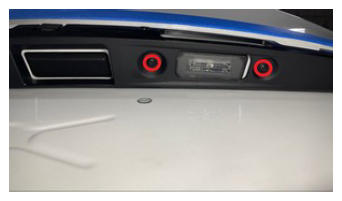

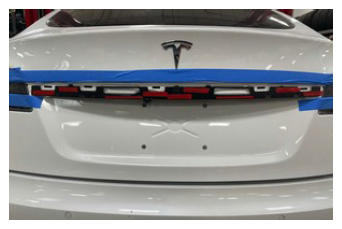

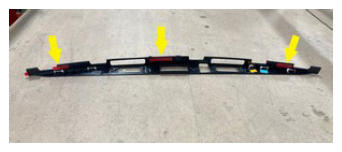

  36. Secure the liftgate applique bracket, and then install bolts (x3).

    2 N.m (1.5 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    NOTE: Apply double sided tape if needed. Peel away the red tape, as needed.
    G15390033Courtesy of TESLA, INC.
    G15390034Courtesy of TESLA, INC.
    G15390035Courtesy of TESLA, INC.
    G15390036Courtesy of TESLA, INC.

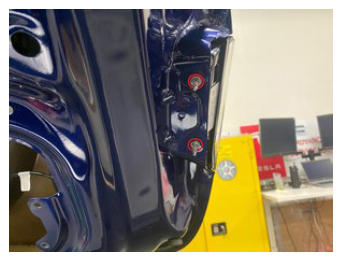

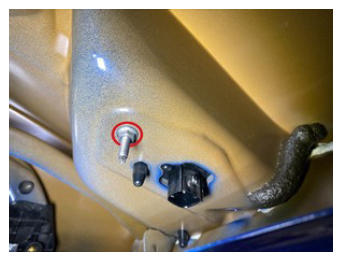

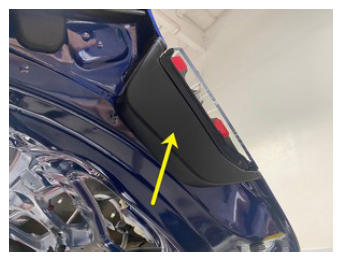

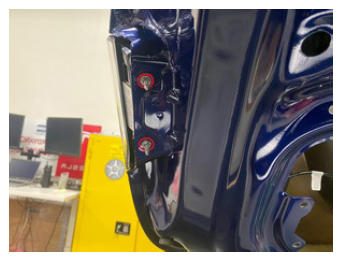

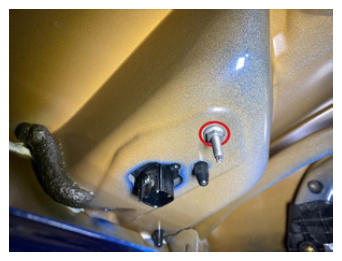

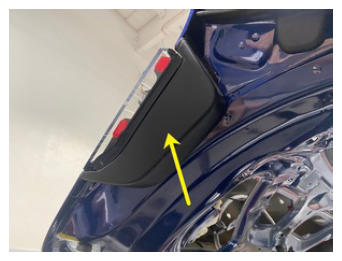

  37. Install the nuts (x6) that attach the LH and RH taillight assemblies.

    4 N.m (2.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    NOTE: (x2) taillight trim covers.
    G15390037Courtesy of TESLA, INC.
    G15390038Courtesy of TESLA, INC.
    G15390039Courtesy of TESLA, INC.
    G15390040Courtesy of TESLA, INC.
    G15390041Courtesy of TESLA, INC.
    G15390042Courtesy of TESLA, INC.

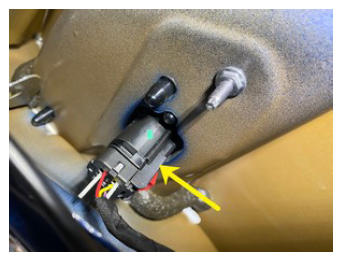

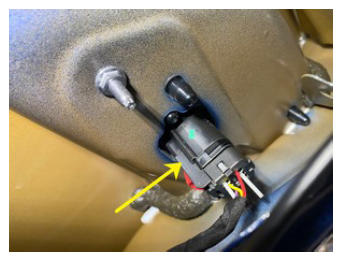

  38. Connect the LH and RH taillight electrical connectors.
    NOTE: Secure the locking tabs.
    G15390043Courtesy of TESLA, INC.
    G15390044Courtesy of TESLA, INC.
  39. Install the antenna LV noise filter. See Noise Filter - LV - Antenna (Remove and Replace) .
  40. Install the FM antenna amplifiers. See Antenna Amplifier - FM (Remove and Replace) .
  41. Install the antenna ground noise filter. See Noise Filter - Ground - Antenna (Remove and Replace) .

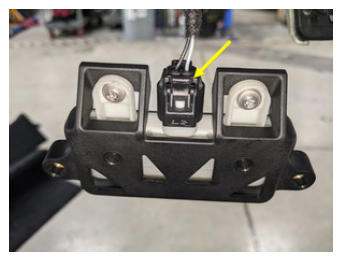

  42. Connect the liftgate handle assembly electrical connector.
    G15390045Courtesy of TESLA, INC.

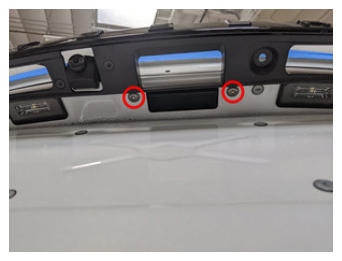

  43. Install the bolts (x2) that attach the liftgate handle to the liftgate.

    14.4 N.m (10.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    NOTE: Support the liftgate handle from the interior.
    G15390046Courtesy of TESLA, INC.

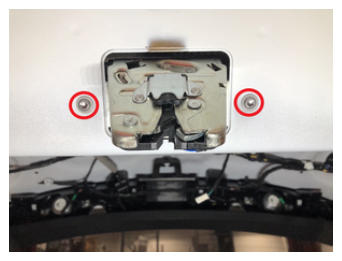

  44. Install the bolts (x2) that attach the liftgate latch to the liftgate.

    10 N.m (7.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    G15390047Courtesy of TESLA, INC.

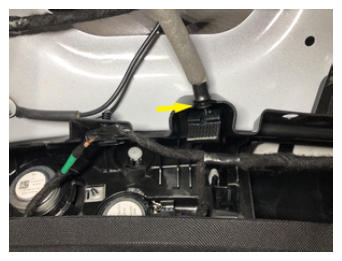

  45. Install the liftgate latch power release cable to the liftgate.
    NOTE: (x1) holding tab
    G15390048Courtesy of TESLA, INC.

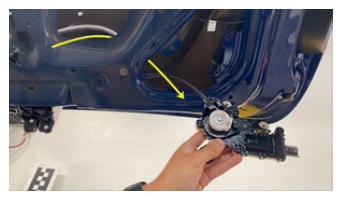

  46. Connect the cable to the liftgate high force cinching actuator, and then position the actuator into the liftgate.
    NOTE: (x2) holding tabs
    G15390049Courtesy of TESLA, INC.
  47. Install the bolts (x3) that attach the liftgate cinching actuator to the liftgate.

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15390050Courtesy of TESLA, INC.
  48. Close the liftgate to check for gap/flush and that the latch closes as expected.
    NOTE: Adjust the hinges if necessary, and then open the liftgate when done.
    G15390051Courtesy of TESLA, INC.

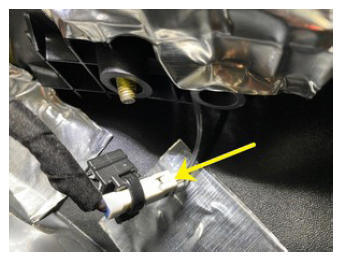

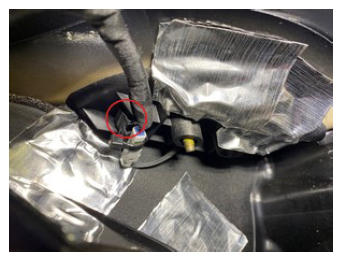

  49. Connect the electrical harness to the high mounted brake light assembly.
    NOTE: Secure the clip onto the liftgate.
    G15390052Courtesy of TESLA, INC.
    G15390053Courtesy of TESLA, INC.

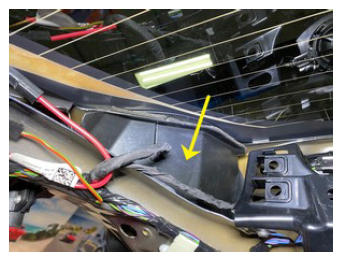

  50. Install the RH catch basin cover.
    NOTE: Position the electrical harness onto the catch basin cover.
    G15390054Courtesy of TESLA, INC.

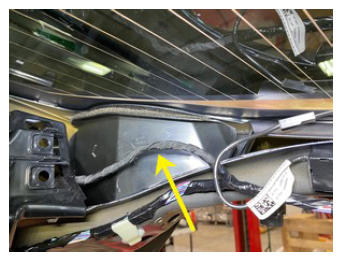

  51. Install the LH catch basin cover.
    G15390055Courtesy of TESLA, INC.

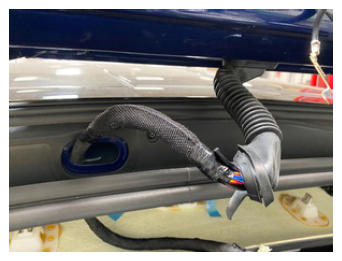

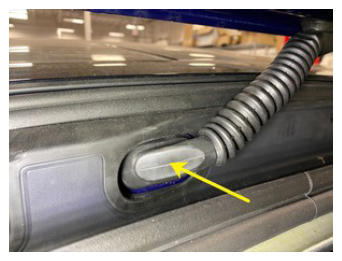

  52. Position the electrical harness into the vehicle and secure the grommet.
    G15390056Courtesy of TESLA, INC.
    G15390057Courtesy of TESLA, INC.

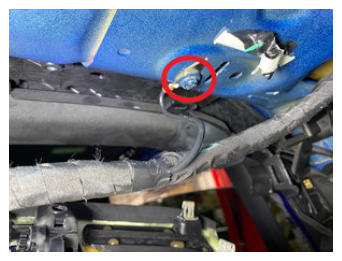

  53. Install the bolt that attaches the ground strap to the body.

    9 N.m (6.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15390058Courtesy of TESLA, INC.

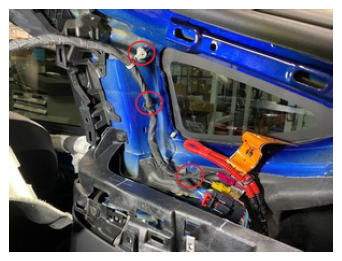

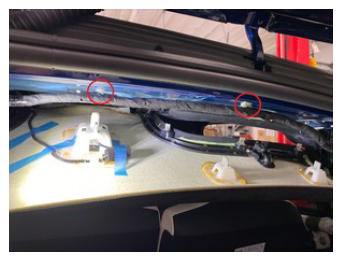

  54. Install the clips (x5) that attach the liftgate electrical harness to the body.
    G15390059Courtesy of TESLA, INC.
    G15390060Courtesy of TESLA, INC.

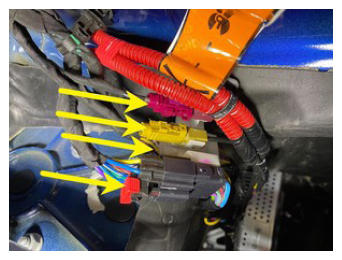

  55. Connect the liftgate harness electrical connectors.
    NOTE: Secure the locking tabs.
    G15390061Courtesy of TESLA, INC.

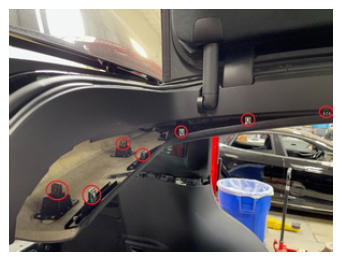

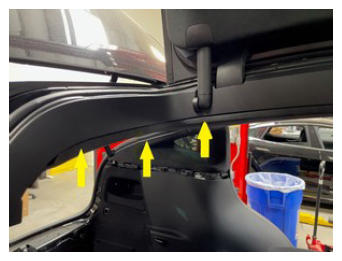

  56. Install the partially released headliner corner. Secure the headliner with clips (x7).
    G15390062Courtesy of TESLA, INC.
    G15390063Courtesy of TESLA, INC.
  57. Install the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace) .
  58. Install the RH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace) .
  59. Install the RH trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
  60. Install the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace) .
  61. Install the liftgate speaker grille. Grille - Speaker - Liftgate (Remove and Replace) .
  62. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  63. Close the liftgate.

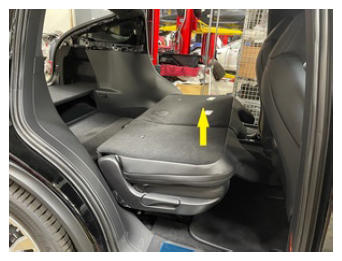

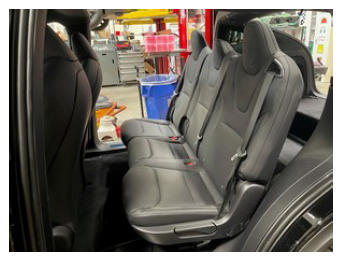

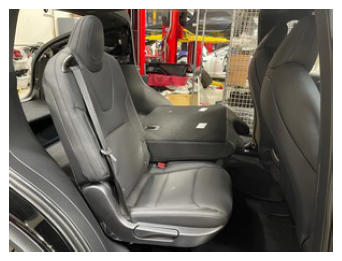

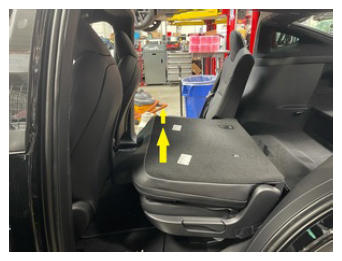

  64. Fold 2nd row seats into vertical position, if equipped.
    G15390064Courtesy of TESLA, INC.
    G15390065Courtesy of TESLA, INC.
    G15390066Courtesy of TESLA, INC.
    G15390067Courtesy of TESLA, INC.
  65. Close the LH and RH rear doors.
  66. Move the driver and front passenger seats back to their original position.
  67. Close the LH and RH front doors.
