SD Card - Car Computer (HW3) - Remove and Replace: Remove
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
- Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
- Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
- Remove the passenger footwell cover. See COVER - FOOTWELL - PASSENGER (LHD) (REMOVE AND REPLACE) .

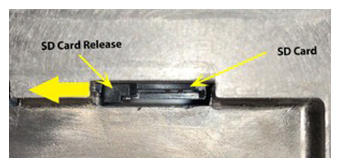

- Slide the locking tab away from the SD card to eject it from the car computer.NOTE: The SD card may eject quickly and fall into vehicle.NOTE: Use tweezers to remove the SD card if the card remains in the car computer after it has been released.
Tip: Use of the following tool(s) is recommended:

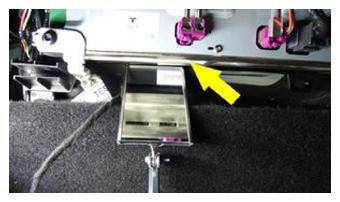

- Rectangular Inspection Mirror
- Tweezers
- Pocket Screwdriver
- Destroy the SD card by cutting the card in half through the center, and then cut each piece into half, resulting in 4 pieces.CAUTION: It is mandatory to destroy the SD card to protect user data.
