Sensor - Radar - Front - Remove and Replace: Install

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.

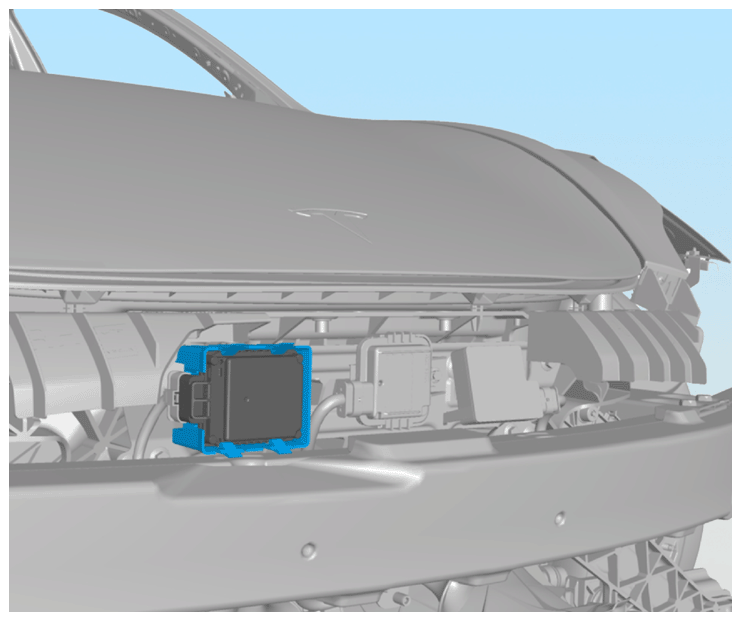

  1. Install the front radar sensor into the bracket.
    G14744079Courtesy of TESLA, INC.

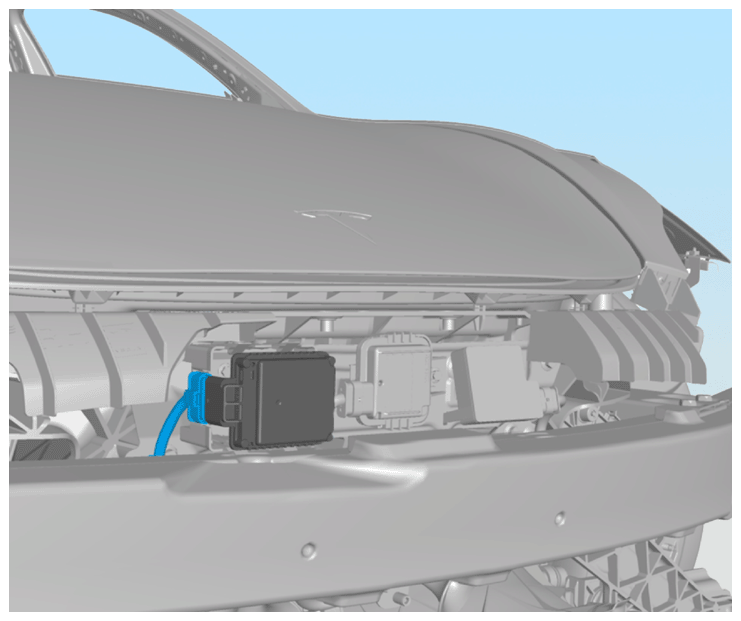

  2. Connect the front radar sensor electrical connector.
    G14744080Courtesy of TESLA, INC.

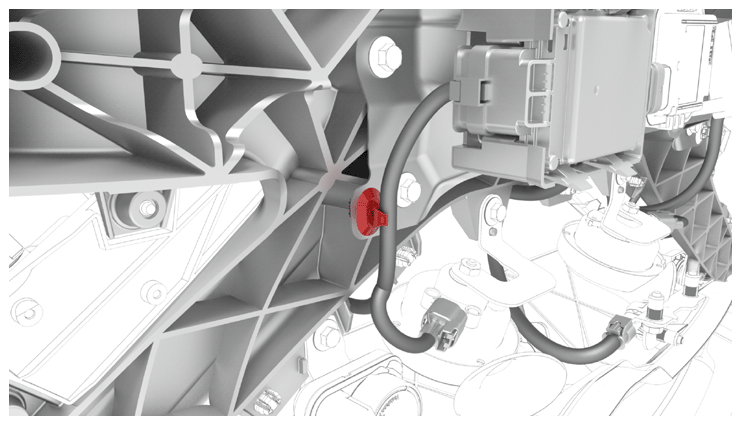

  3. Connect the front radar sensor wiring harness to the front end carrier clip.
    G14744081Courtesy of TESLA, INC.
  4. Install the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .
  5. Reinstall the vehicle firmware. See SOFTWARE REINSTALL - TOUCHSCREEN .
  6. Check the vehicle wheel alignment, and adjust if necessary. See FOUR WHEEL ALIGNMENT CHECK .
  7. Perform the front radar sensor calibration procedure. See SENSOR - RADAR - FRONT (CALIBRATION) .
