Heater - Radar - Remove And Replace: Remove

  1. Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .

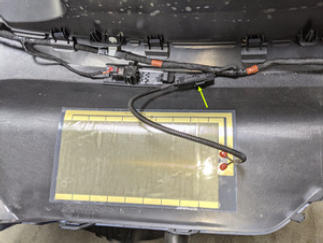

  2. Disconnect the radar heater electrical connector.
    G15437617Courtesy of TESLA, INC.

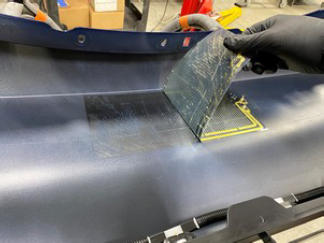

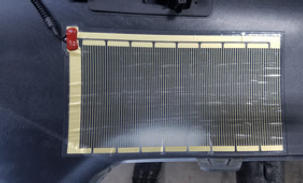

  3. Release a corner of the adhesive, peel the radar heater away from the front fascia assembly to remove and then discard it.
    G15437618Courtesy of TESLA, INC.
    G15437619Courtesy of TESLA, INC.
