Heater - Radar - Remove And Replace: Install

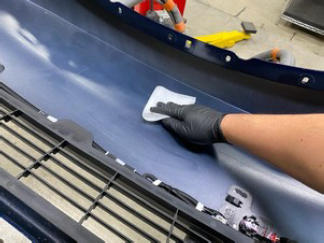

  1. Use IPA wipes to clean the area where the radar heater will be installed.
    NOTE: Allow 1 minute for the IPA to dry
    NOTE: Confirm the part number for the vehicle color.
    G15437620Courtesy of TESLA, INC.

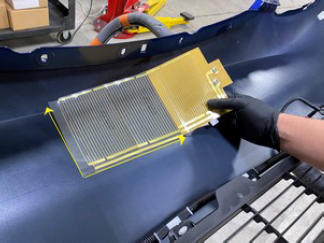

  2. Peel the adhesive backing, and then install the radar heater onto the front fascia assembly.

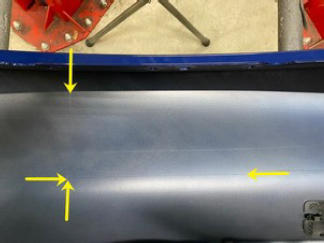

    NOTE: Align the radar heater to the etching on the front fascia.
    NOTE: Make sure there are no creases or bubbles.
    G15437621Courtesy of TESLA, INC.
    G15437622Courtesy of TESLA, INC.

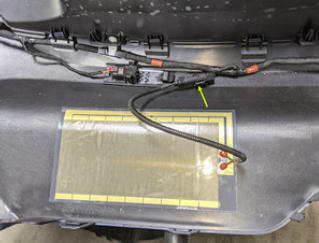

  3. Connect the radar heater mat electrical connector.
    G15437623Courtesy of TESLA, INC.
  4. Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .
