Sensor - Radar - Front - Remove And Replace: Install

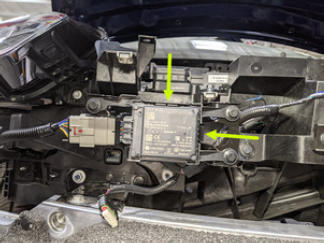

  1. Position the front radar sensor into the vehicle and install the tabs (x2) that attach the front radar sensor to the front end carrier.
    G15437703Courtesy of TESLA, INC.

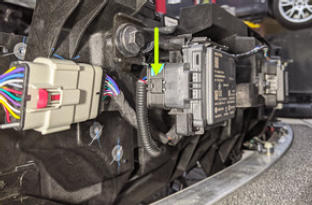

  2. Connect the electrical connector from the front radar sensor.
    G15437704Courtesy of TESLA, INC.
  3. Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .
  4. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3 (Connect and Disconnect) .
  5. Unlock the vehicle gateway. See Gateway (Unlock) .
  6. In Toolbox 3, click the Actions  tab, type "Service-Redeploy" into the search field, click SERVICE CAN REDEPLOY  , click Run  , and allow the routine to complete.
  7. Adjust the ride height. See Ride Height (Adjust) .
  8. Calibrate the front radar sensor. See Sensor - Radar - Front (Calibration) .
  9. Disconnect Toolbox and remove the laptop from the vehicle. See Toolbox 3 (Connect and Disconnect) .
