Puddle Light - Liftgate - Remove And Replace: Install

  1. Position the liftgate puddle light into the lower liftgate trim, and then secure the locking tabs (x5) that attach the light to the trim.
    NOTE: Make sure all the locking tabs are fully secured around the puddle light.

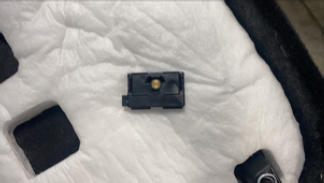

    G15437970Courtesy of TESLA, INC.

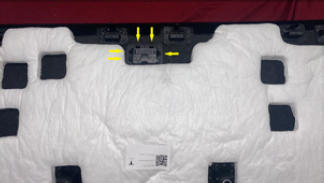

    G15437971Courtesy of TESLA, INC.

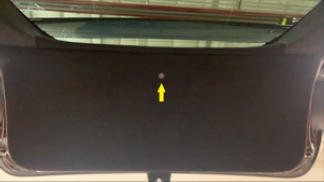

    G15437972Courtesy of TESLA, INC.
  2. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
