Subwoofer - Remove And Replace: Install

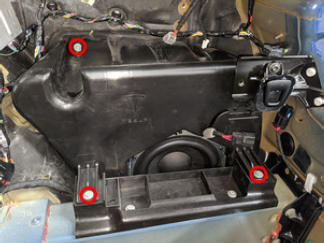

  1. Position the subwoofer on the vehicle, and then install the bolts (x3) that attach the subwoofer to the vehicle.

    10 N.m (7.4 ft-lbs)

    NOTE: Guide the subwoofer around the RH rear trunk tie down bracket and the RH body harness during installation.

    Tip: Use of the following tool(s) is recommended:

    • 10 in extension
    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    G15409076Courtesy of TESLA, INC.
  2. Connect the subwoofer connector, and then install the tabs (x2) that attach the connector to the subwoofer.

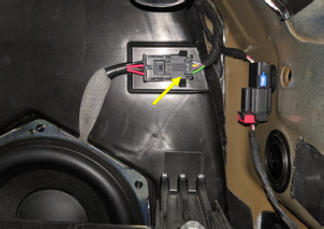

    G15409077Courtesy of TESLA, INC.
  3. Install the RH trunk trim bracket. See Bracket - Trim - Trunk - RH (Remove and Replace) .
  4. Install the RH trunk side trim. See Trim - Side - Trunk - RH (Remove and Replace) .
  5. Install the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace) .
  6. Unfold the RH 3rd row seat back into original position.
  7. Install the RH lower C-pillar. See Trim - C-Pillar - Lower - LH (Remove and Replace) .
  8. Install the RH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove And Replace) .
  9. Install the RH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace) .
  10. Install the clips (x6) that attach the rear wall load support to the vehicle.

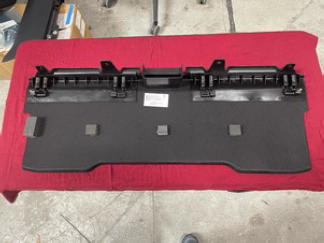

    G15409078Courtesy of TESLA, INC.

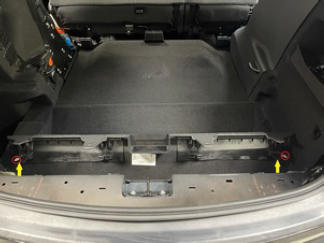

    G15409079Courtesy of TESLA, INC.

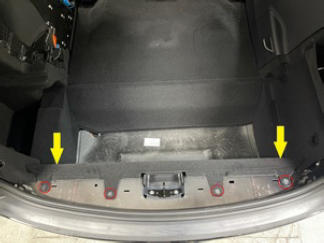

    G15409080Courtesy of TESLA, INC.
  11. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
  12. Install the LH and RH rear trunk garnishes. See Garnish - Rear Trunk - Side - LH (Remove and Replace) .
  13. Install the rear trunk carpet. See Carpet - Rear Trunk (7 Seat) (Remove and Replace) .
  14. Install the rear trunk floor NVH insulator. See NVH Insulator - Floor - Rear Trunk (Remove and Replace) .
  15. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  16. Close the liftgate.
  17. Move the RH monopost seat to original position.
  18. Close the RH falcon wing door.
  19. Move the RH front seat to original position.
  20. Raise the RH front window.
  21. Close the RH front door.
