Wiper Module - Remove And Replace: Remove

  1. Disconnect LV power. See LV POWER (DISCONNECT AND CONNECT) .
  2. Remove the cowl screen. See Panel - Cowl Screen (Remove and Replace) .

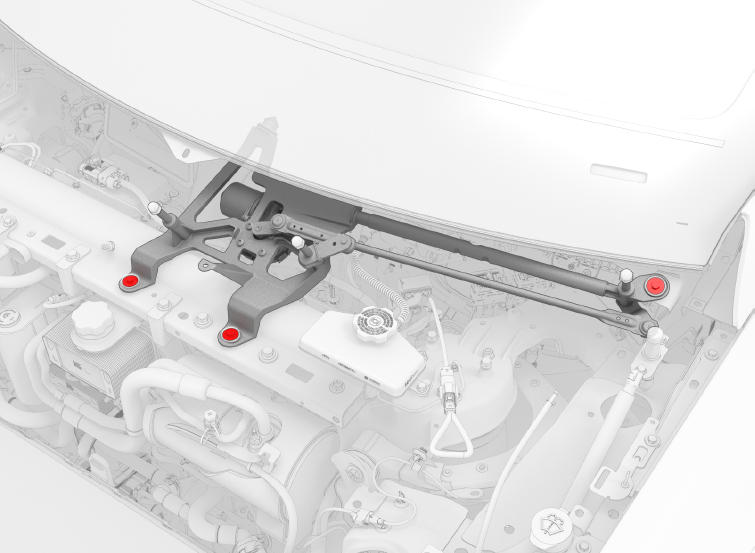

  3. Remove the bolts that attach the wiper module to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Ratchet/torque wrench
    G15438428Courtesy of TESLA, INC.

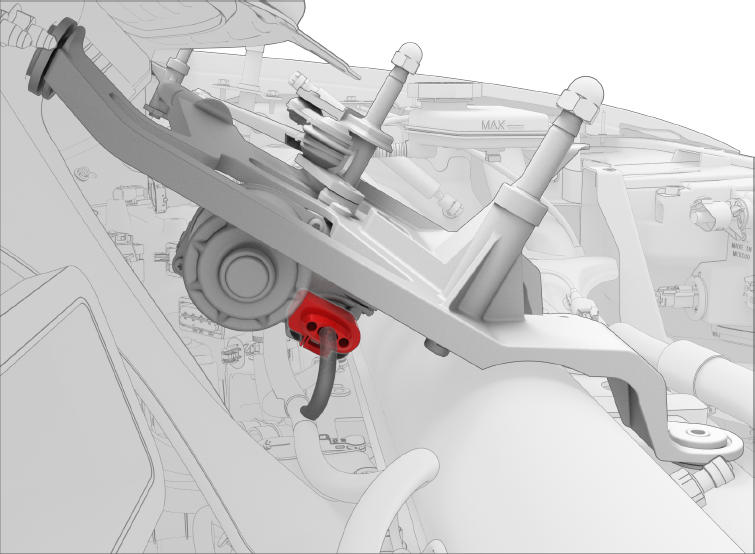

  4. Disconnect the electrical connector from the wiper module, and remove the wiper module from the vehicle.
    G15438429Courtesy of TESLA, INC.
