Wiper Module - Remove And Replace: Install

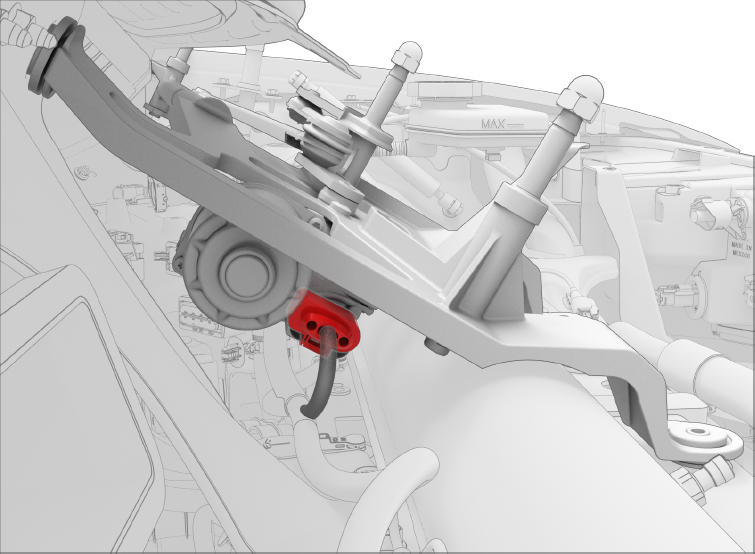

  1. Connect the electrical connector to the wiper module.
    G15438430Courtesy of TESLA, INC.

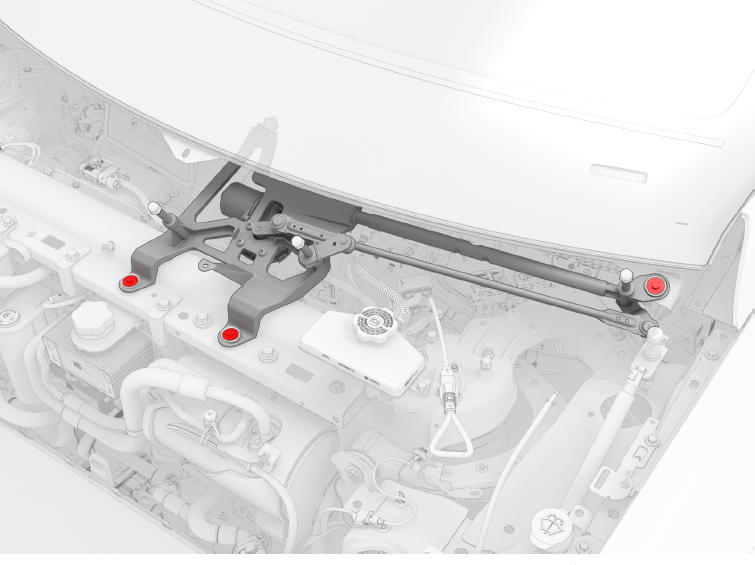

  2. Position the wiper module to the vehicle, and then install the bolts that attach the wiper module to the vehicle.

    9 N.m (6.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Ratchet/torque wrench
    G15438431Courtesy of TESLA, INC.
  3. Install the cowl screen. See Panel - Cowl Screen (Remove and Replace) .
  4. Connect LV power. See LV POWER (DISCONNECT AND CONNECT) .
  5. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors.
