Module - Bluetooth Low Energy (BLE) - Rear - Remove And Replace: Remove

  1. Remove the rear fascia assembly from the vehicle. See Fascia Assembly - Rear (Remove and Install) .

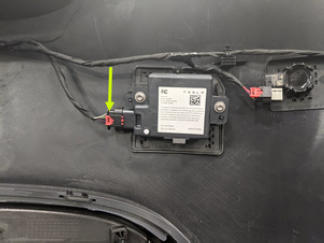

  2. Release the connector lock, and then disconnect the LH rear BLE module electrical connector.
    CAUTION: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G15438292Courtesy of TESLA, INC.

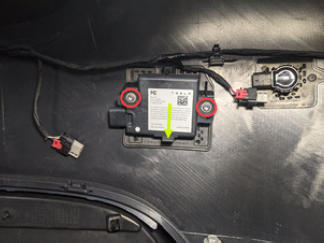

  3. Remove the screws (x2) and release the tab that attach the LH rear BLE module to the upper rear fascia assembly, and then remove the module from the fascia.

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    G15438293Courtesy of TESLA, INC.
