Module - Bluetooth Low Energy (BLE) - Rear - Remove And Replace: Install

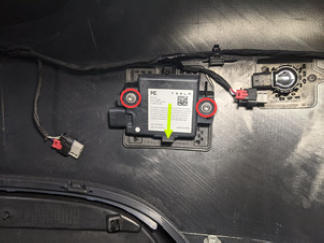

Position the LH rear BLE module into the upper rear fascia assembly, and then install the screws (x2) and secure the tab that attach the module to the fascia.
3 N.m (2.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
Courtesy of TESLA, INC.

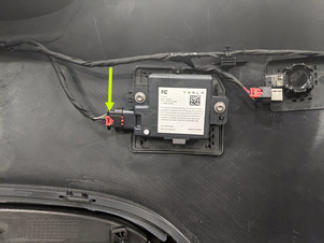

Connect the LH rear BLE module electrical connector, and then engage the locking tab.
NOTE: LH shown; RH similar

Courtesy of TESLA, INC.
Install the rear fascia assembly. See Fascia Assembly - Rear (Remove and Install) .
Connect a laptop with Toolbox 3 to the vehicle.
Click the Actions tab, and then search for "Service-Redeploy".
Click SERVICE CAN REDEPLOY , and then click Run and allow the routine to complete.
NOTE: Select "X" at top right of window to close once complete. The routine will state pass but update will continue to run in the background. The UI will show update progress.
In Toolbox, click TEST-SELF_VCSEC_X_ENDPOINT-COMM , and then click Run Network and allow the routine to complete
NOTE: Click the X at top right of window to close once complete.
Disconnect Toolbox 3 and remove the laptop from the vehicle.
