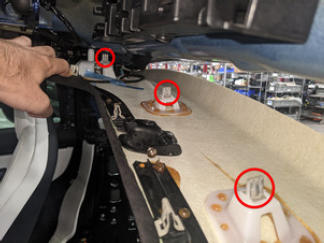

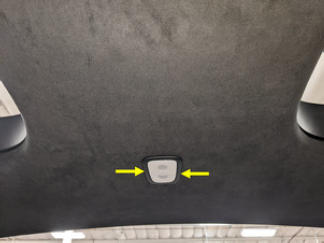

- Position the rear map light onto the vehicle, and then install the clips (x2) that attach the light to the headliner.
NOTE:
Route the harness up into the headliner.
 Courtesy of TESLA, INC.
|

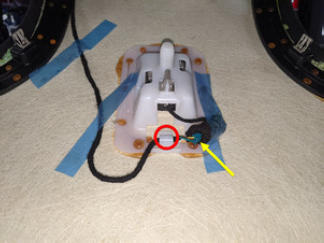

- Position the rear map light connector on the harness guide, and then connect the light connector.
NOTE:
Secure any NVH measurements noted.
 Courtesy of TESLA, INC.
|

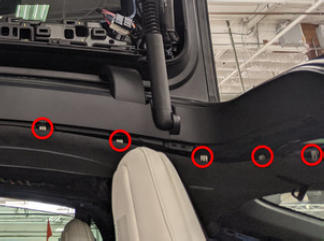

- Install the clips (x8) that attach the LH headliner to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the LH and RH side rear coat hook. See Coat Hook - Rear - LH (Remove and Replace)
.
- Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace)
.
- Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace)
.
- Install the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace)
.
- Install the LH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace)
.
- Unfold the LH 3rd row seat to original position.
- Close the liftgate.
- Install the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace)
.
- Close the LH and RH falcon wing doors.
- Raise the LH and RH front windows.
- Close the LH and RH front doors.
