Actuator - Pedestrian Protection - LH (EMEA) - Remove and Replace: Remove

  1. Disconnect LV power. See LV Power (Disconnect and Connect) .
  2. Remove the cowl screen panel. See Panel - Cowl Screen (Remove and Replace) .

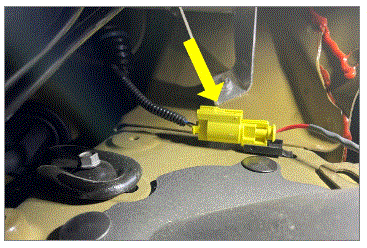

  3. Disconnect the LH pedestrian protection actuator connector, and then release the connector from the body.
    G00645881Courtesy of TESLA, INC.

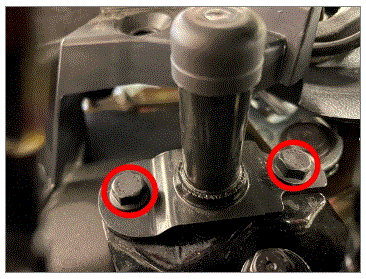

  4. Remove the bolts (x2) that attach the LH pedestrian protection actuator to the vehicle.
    G00645882Courtesy of TESLA, INC.
