Subwoofer - Remove And Replace: Remove

  1. Open the RH front door.
  2. Lower the RH front window.
  3. Move the RH front seat forward.
  4. Open the RH falcon wing door.
  5. Move the RH monopost seat forward.
  6. Remove the RH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove And Replace) .
  7. Open the liftgate.
  8. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  9. Remove the rear trunk floor NVH insulator. See NVH Insulator - Floor - Rear Trunk (Remove and Replace) .
  10. Remove the rear trunk carpet. See Carpet - Rear Trunk (7 Seat) (Remove and Replace) .
  11. Remove the LH and RH rear trunk garnishes. See Garnish - Rear Trunk - Side - LH (Remove and Replace) .
  12. Remove the RH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace) .
  13. Remove the RH lower C-pillar. See Trim - C-Pillar - Lower - LH (Remove and Replace) .
  14. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
  15. Release the clips (x6) that attach the rear wall load support to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • Clip pry tool
    • Plastic trim tool

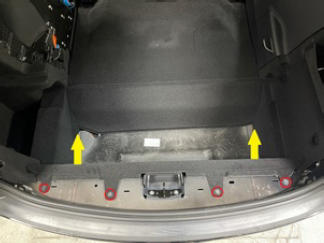

    G15409070Courtesy of TESLA, INC.

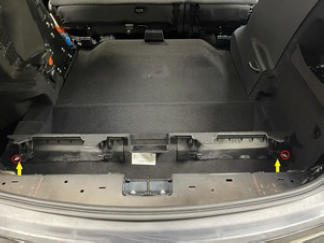

    G15409071Courtesy of TESLA, INC.

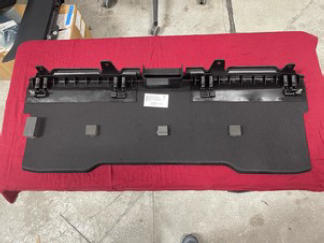

    G15409072Courtesy of TESLA, INC.
  16. Fold the RH 3rd row seat back downwards.
  17. Remove the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace) .
  18. Remove the RH trunk side trim. See Trim - Side - Trunk - RH (Remove and Replace) .
  19. Remove the RH trunk trim bracket. See Bracket - Trim - Trunk - RH (Remove and Replace) .
  20. Release the tabs (x2) that attach the subwoofer connector to the vehicle, and then disconnect the connector.

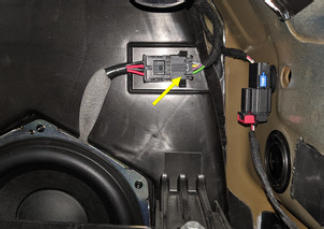

    G15409073Courtesy of TESLA, INC.
  21. Remove the bolts (x3) that attach the subwoofer to the vehicle, and then remove the subwoofer from the vehicle.
    NOTE: Guide the subwoofer around the RH rear trunk tie down bracket and the RH body harness during removal.

    Tip: Use of the following tool(s) is recommended:

    • 10 in extension
    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench

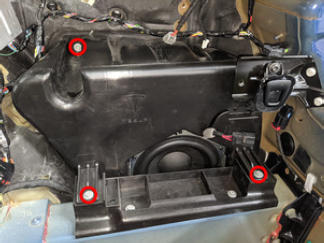

    G15409074Courtesy of TESLA, INC.

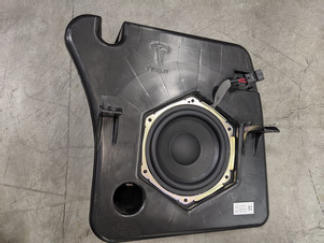

    G15409075Courtesy of TESLA, INC.
