Subframe Assembly - Front - Remove And Install: Remove

  1. Move the vehicle to a 2 post lift. See Raise Vehicle - 2 Post Lift .
  2. Remove the LH and RH front wheels. See Wheel (Remove and Install) .
  3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  4. Disconnect LV power. See LV Power (Disconnect and Connect) .
  5. Set the steering wheel straight ahead.
  6. Place a protector sheet onto the driver seat, and then install the steering wheel lock.
  7. Remove the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace) .
  8. Remove the front fascia valance. See Valance - Front Fascia (Remove and Replace) .
  9. Remove the front skid plate. See SKIDPLATE - FRONT (REMOVE AND REPLACE) .

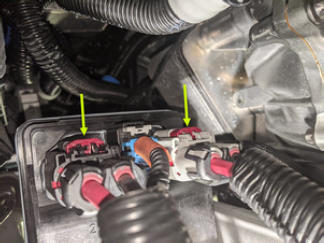

  10. Slide the red locking tab, press the release, and then disconnect the electrical connectors (x2) from the steering rack.
    G15409293Courtesy of TESLA, INC.

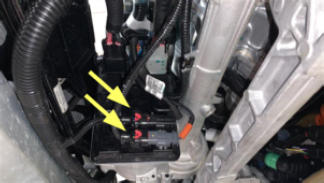

  11. Slide the red locking tabs, press the releases, and then disconnect the electrical connectors (x2) from the EPAS CAN.
    G15409294Courtesy of TESLA, INC.

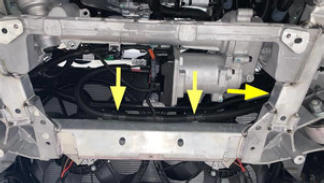

  12. Release the clips (x3) that attach the electrical harness to the front subframe, separate the electrical harness from the subframe, and then tuck it up and aside.
    G15409295Courtesy of TESLA, INC.

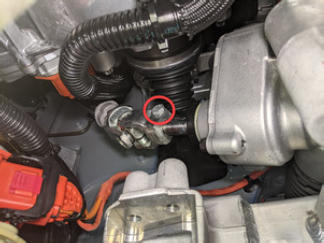

  13. Remove the bolt that attaches the steering column intermediate shaft to the steering rack input shaft.

    30 N.m (22.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    G15409296Courtesy of TESLA, INC.

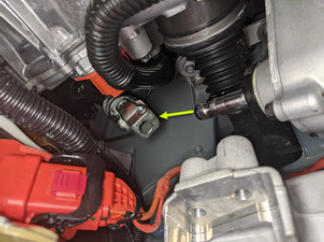

  14. Slide the steering column intermediate shaft up and off of the steering rack input shaft.
    G15409297Courtesy of TESLA, INC.

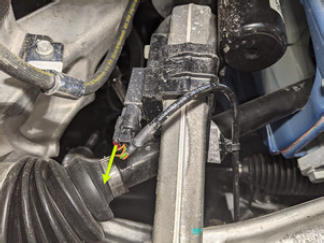

  15. Disconnect the electrical harness from the LH front wheel speed sensor connector.
    G15409298Courtesy of TESLA, INC.

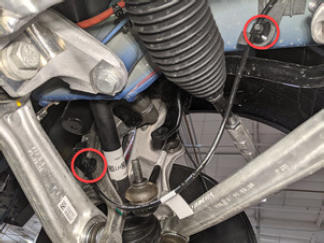

  16. Release the clips (x2) that attach the LH ANC connection to the LH front knuckle, and then disconnect the electrical connector.
    NOTE: Route the electrical harness above the front stabilizer bar.
    G15409299Courtesy of TESLA, INC.

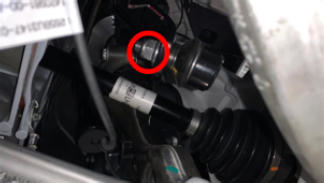

  17. Remove and discard the nut that attaches the LH front stabilizer bar link to the front stabilizer bar, and then remove the link from the stabilizer bar.

    70 N.m (51.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 15 mm socket
    • 5 mm hex
    NOTE: To prevent ball joint damage, use a 5 mm hex wrench to prevent the LH link ball joint stud from turning while removing the nut.
    G15409300Courtesy of TESLA, INC.
  18. Remove the nut and bolt that attach the LH front active damper to the front lower aft link.

    140 N.m (103.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 21 mm socket
    • 21 mm combination wrench
    G15409301Courtesy of TESLA, INC.
  19. Remove and discard the nut that attaches the LH aft link to the LH front knuckle, and then remove the aft link from the knuckle.

    180 N.m (132.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 22 mm socket
    • Torx T45 socket
    NOTE: To prevent ball joint damage, use a T45 socket to prevent the LH aft link ball joint stud from turning while removing the nut.
    G15409302Courtesy of TESLA, INC.

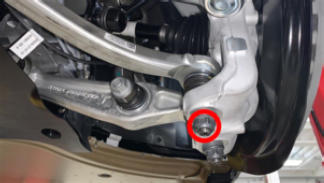

  20. Remove and discard the nut that attaches the LH fore link to the LH front knuckle, and then remove the fore link from the knuckle.

    180 N.m (132.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 22 mm socket
    • Torx T45 socket
    NOTE: To prevent ball joint damage, use a T45 socket to prevent the LH fore link ball joint stud from turning while removing the nut.
    G15409303Courtesy of TESLA, INC.

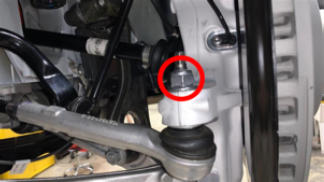

  21. Remove and discard the nyloc nut that attaches the LH tie rod to the LH front knuckle, and then remove the tie rod from the knuckle.

    102 N.m (75.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 21 mm socket
    G15409304Courtesy of TESLA, INC.
  22. Repeat step  21 for the RH side of the vehicle.
  23. Break loose the front subframe bolts, but do not remove the bolts at this time.
    NOTE: Torque specifications:
    Depending on the vehicle manufacture date, the bolts might be as follows:
    • Front-most bolts (16 mm or 18 mm):
      • M12 1.75 x 75 bolt (1063242-00-B) and M12 x 24 x 2.5 washer (1103852-00-A): 80 N.m
      • M12 1.75 x 115 bolt (1608611-00-C): 80 N.m
    • Middle bolts (18 mm): 80 N.m
    • Rear-most bolts (21 mm):
      • M14 2.0 x 58 bolt (1133941-00-C): 115 N.m
      • M14 2.0 x 67 bolt (1638540-00-A): 145 N.m

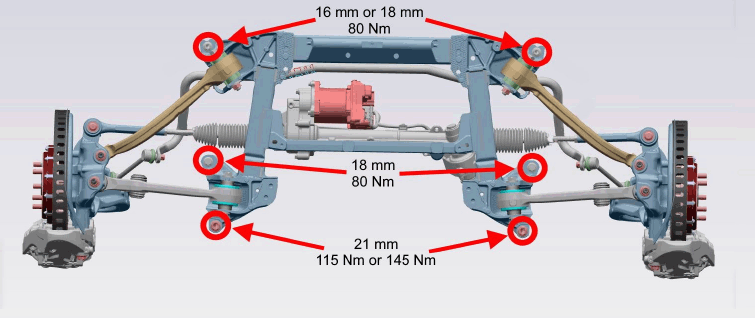

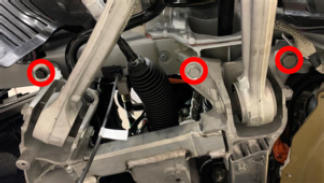

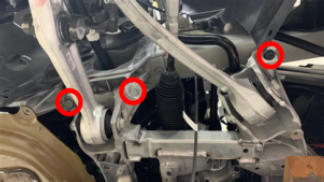

    Fig 1: Front And Rear-Most Subframe Bolts With Torque Specification
    G15409305Courtesy of TESLA, INC.
    G15409306Courtesy of TESLA, INC.
    G15409307Courtesy of TESLA, INC.

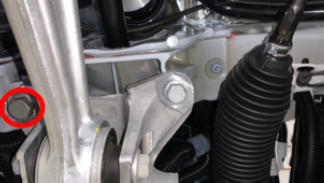

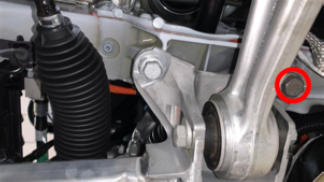

  24. Remove the rear-most subframe bolts with a battery-powered drill.
    NOTE: 21 mm: 115 N.m or 145 N.m

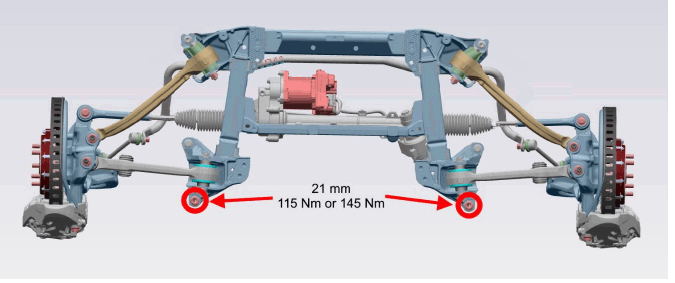

    Fig 2: Rear-Most Subframe Bolts With Torque Specification
    G15409308Courtesy of TESLA, INC.
    G15409309Courtesy of TESLA, INC.
    G15409310Courtesy of TESLA, INC.

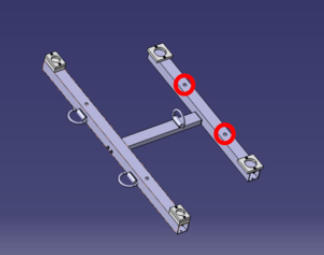

  25. Remove the forward-most bolts (x2) from the subframe fixture (1066521-00-A, 1657054-00-A).
    NOTE: The bolts will interfere with the subframe if they are not removed. Return the bolts to the subframe fixture when finished with this procedure.
    G15409311Courtesy of TESLA, INC.

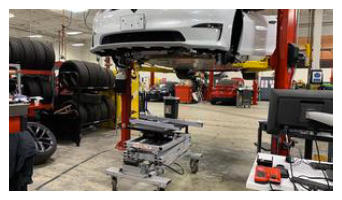

  26. Move the subframe lifting tool to underneath the front subframe area.
    G13957028Courtesy of TESLA, INC.

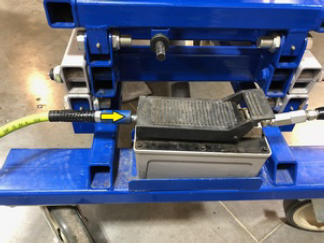

  27. Connect the shop supply air to the subframe lifting tool.
    G15409312Courtesy of TESLA, INC.

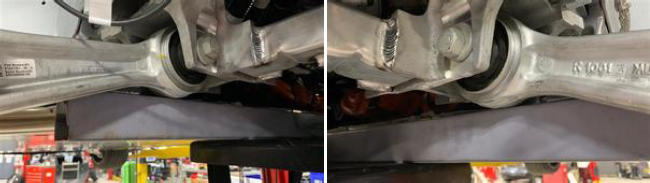

  28. With the help of an assistant, raise the powertrain table and subframe fixture into position.
    NOTE: The lower aft links will rest on the fixture.
    G15409313Courtesy of TESLA, INC.

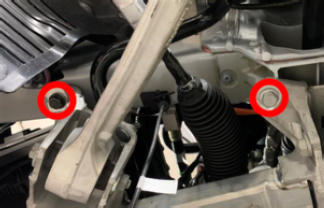

  29. Remove the remaining front subframe bolts with a battery-powered drill.
    NOTE: 16 mm or 18 mm: 80 N.m
    NOTE: Take note of fastener positions for installation.

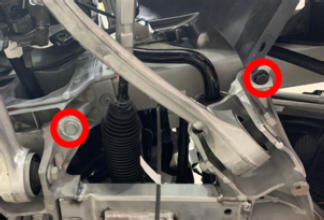

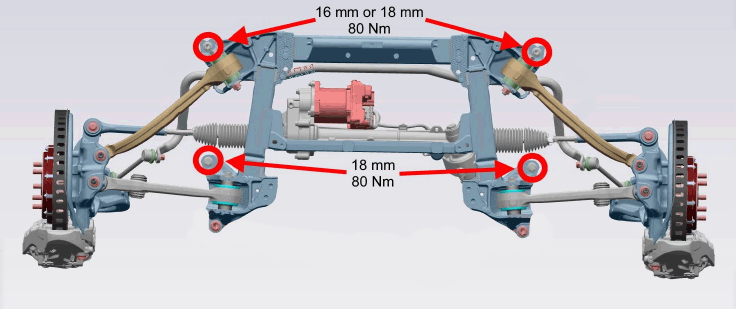

    Fig 3: Front Subframe Bolts With Torque Specification
    G15409314Courtesy of TESLA, INC.
    G15409315Courtesy of TESLA, INC.
    G15409316Courtesy of TESLA, INC.

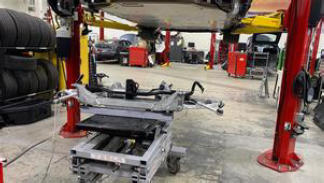

  30. With the help of an assistant, carefully lower the front subframe from the body.
    NOTE: Hold the knuckles aside, and guide the active damper forks around suspension links.
    G15409317Courtesy of TESLA, INC.

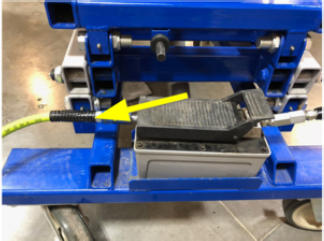

  31. Disconnect the shop supply air from the subframe lifting tool.
    G15409318Courtesy of TESLA, INC.

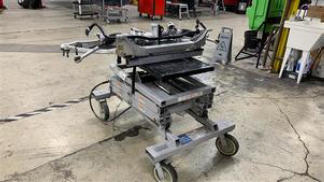

  32. Move the subframe lifting tool and front subframe out from under the vehicle.
    G15409319Courtesy of TESLA, INC.
