Center Console Assembly - 1st Row - Remove And Install: Install

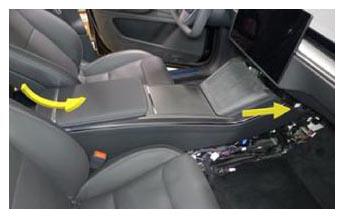

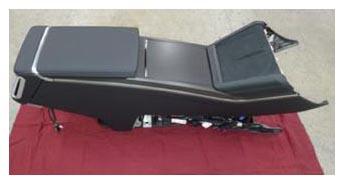

With assistance, carefully maneuver the front of the 1st row center console assembly under and into the instrument panel carrier, and then lower the rear of the console into place.

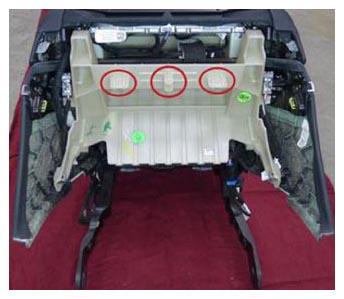

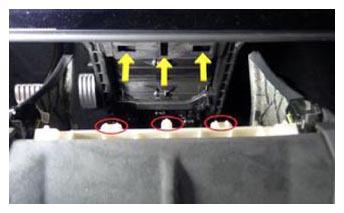

NOTE: Align the datums (x3) with the instrument panel carrier, and then engage the console forward.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

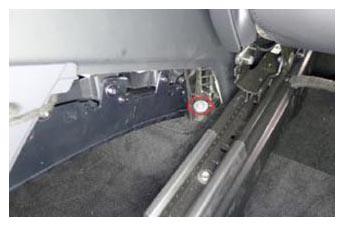

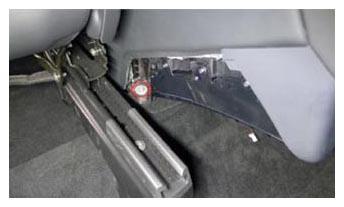

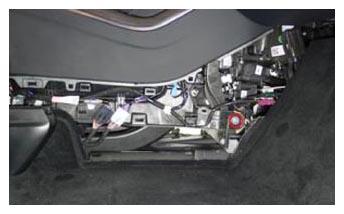

Install the bolts (x2) that attach the LH and RH center console lower brackets to the instrument panel carrier.
10 N.m (7.4 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Cordless 1/4 in Hex Driver
- Nutsetter 1/4 in Dr. 6 in. X 10 mm Magnetic Deep
- Socket 1/4 in Dr. 6 pt. Std. x 10 mm
- Socket 1/4 in Dr. 12 pt. Std. x 10 mm Deep
- Torque Wrench 1/4 in Dr.
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

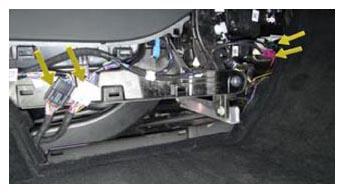

Connect the 1st row center console assembly connectors (x4).
NOTE: Ensure all connector locks engage.

Courtesy of TESLA, INC.

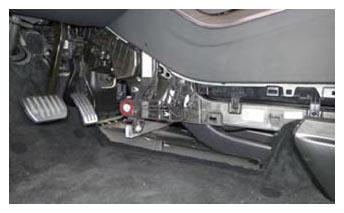

Install the bolts (x2) that attach the LH and RH center console carrier brackets to the vehicle.
12 N.m (8.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Cordless 1/4 in Dr. Ratchet
- Extension 1/4 in Dr. x 10 in
- Socket 1/4 in Dr. 6 pt. Swivel Ball 10 mm
- Torque Wrench 1/4 in Dr.
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the RH center console side panel carpet. See CARPET - SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
Install the passenger footwell cover. See Cover - Footwell - Passenger (Remove and Replace) .
Install the RH front floor mat.
Install the LH center console side panel carpet. See CARPET - SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
Install the driver inboard footwell cover. See Cover - Footwell - Inboard - Driver (Remove and Replace) .
Install the driver outboard footwell cover. See Cover - Footwell - Outboard - Driver (Remove and Replace) .
Install the LH front floor mat.
Move the LH and RH front seats forward.
Raise the LH and RH front seat backrests.

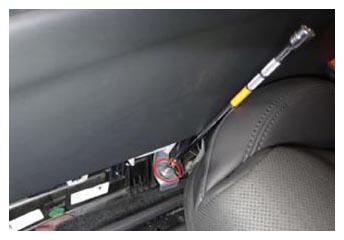

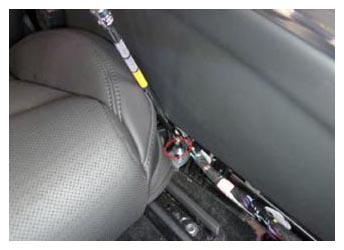

Install the bolts (x2) that attach the LH and RH rear console carriers to the vehicle.
12 N.m (8.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Cordless 1/4 in Dr. Ratchet
- Extension 1/4 in Dr. x 6 in Locking
- Socket 1/4 in Dr. 6 pt. Swivel Ball 10 mm
- Ratchet/torque wrench
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the center console lower rear panel. See PANEL - LOWER REAR - CENTER CONSOLE (REMOVE AND REPLACE) .
Move the LH and RH front seats to original position.
Raise the LH and RH front windows.
Close all four doors.
