Puddle Light - Liftgate - Remove And Replace: Remove

  1. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  2. Release the locking tabs (x5) that attach the liftgate puddle light to the lower liftgate trim, and then remove the light from the trim.
    NOTE: Be careful not to over stretch the locking tabs when removing the puddle light.

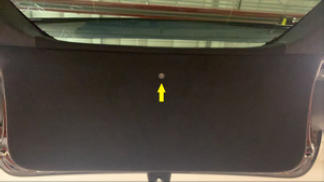

    G15437967Courtesy of TESLA, INC.

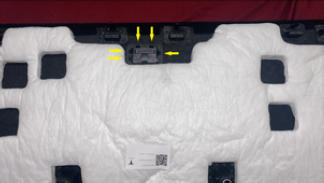

    G15437968Courtesy of TESLA, INC.

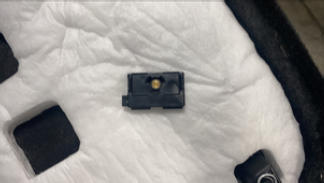

    G15437969Courtesy of TESLA, INC.
