Light - Map - Front - Remove And Replace: Install

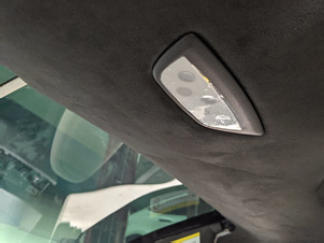

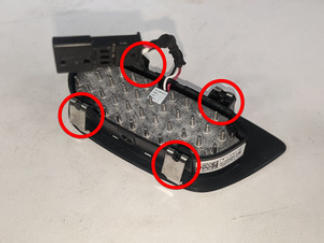

Position the front map light into the headliner, and then secure the clips (x4) that attach the light to the headliner.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

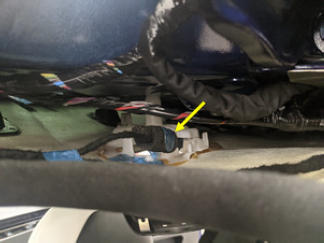

Connect the front map light electrical connector.
NOTE: Secure any noted NVH mitigation.

Courtesy of TESLA, INC.

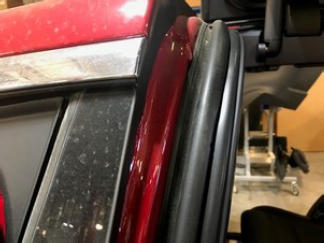

Make sure the LH falcon door seal is seated behind the B-pillar racetrack.

Courtesy of TESLA, INC.

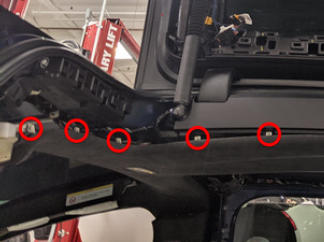

Secure the clips (x5) that attach the LH front portion of the headliner to the vehicle.

Courtesy of TESLA, INC.

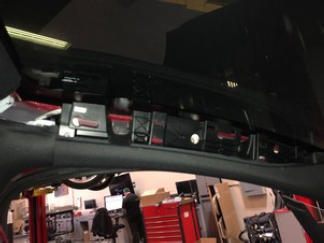

Install the screw that attaches the front of the headliner to the body.
2 N.m (1.5 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
Courtesy of TESLA, INC.

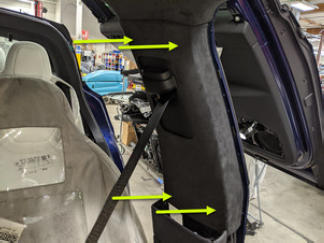

Connect the LH falcon wing door button electrical connector, and then secure the clips (x3) and magnets (x2) that attach the LH upper B-pillar trim to the B-pillar.
NOTE: Replace any damaged clips.

Courtesy of TESLA, INC.
Install the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove And Replace) .
Position the LH upper A-pillar onto the A-pillar.

Courtesy of TESLA, INC.

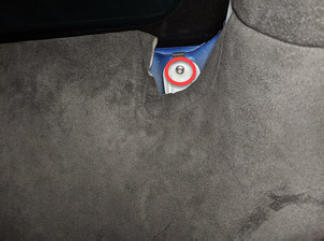

Install a new nut that attaches the LH upper A-pillar trim to the vehicle.
5 N.m (3.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.
Install the screw that attaches the LH upper A-pillar trim to the vehicle.
2.5 N.m (1.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T20 socket
Courtesy of TESLA, INC.
Install the LH sun visor bezel A-pillar trim. See Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace) .
Move driver seat to the original position.
Raise the front windows and close all the doors.
