Wiper Module - Remove And Replace: Remove

  1. Use the touchscreen to put the wipers in "Wiper Service Mode".
  2. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  3. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  4. Remove the LH and RH wiper arms. See Wiper Arm - LH (Remove And Replace) .
  5. Remove the LH and RH shock tower covers. See Cover - Shock Tower - LH (Remove and Replace) .
  6. Remove the wiper cowl screen panel. See Hose - Washer - Cowl Screen (Remove And Replace) .
  7. Remove the LH shock tower V brace. See V Brace - Shock Tower - LH (Remove and Replace) .
  8. Remove the bolts (x3) that attach the wiper module to the vehicle. Rotate the module forward and up to access the electrical connector, then disconnect the electrical connector from the wiper module.
    NOTE: 3x bolts, 10 mm, 8 N.m
    CAUTION: Carefully pivot the wiper module during removal to avoid damage to windshield.

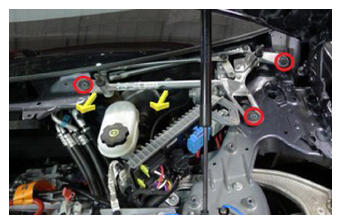

    G15093049Courtesy of TESLA, INC.

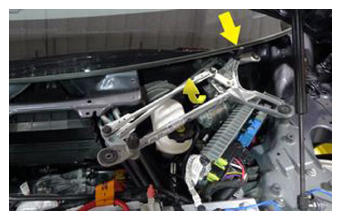

    G15093050Courtesy of TESLA, INC.

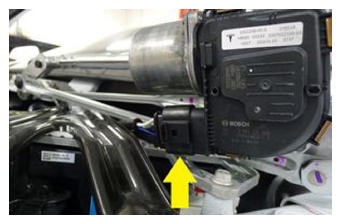

    G15093051Courtesy of TESLA, INC.
