Module - Bluetooth Low Energy (BLE) - Rear - Remove And Replace: Remove

  1. Remove the rear fascia assembly. See Fascia Assembly - Rear (Remove and Install) .

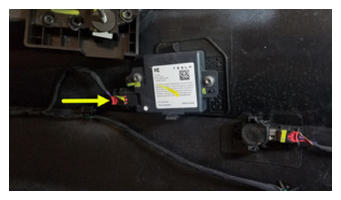

  2. Disconnect the rear BLE assembly electrical connector.
    CAUTION: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G15092836Courtesy of TESLA, INC.

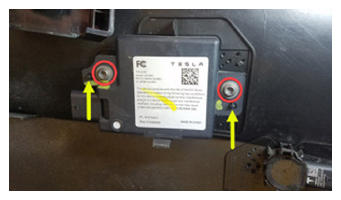

  3. Remove the two screws that attach the rear BLE assembly to the fascia.
    NOTE: 2x screws, T25, 2x datums
    G15092837Courtesy of TESLA, INC.
