Sensor - Shotgun Accelerometer - RH - Remove and Replace: Remove

  1. Disconnect LV power. See LV Power (Disconnect and Connect) .
  2. Remove the underhood storage unit. See Underhood Storage Unit (Remove And Install) .

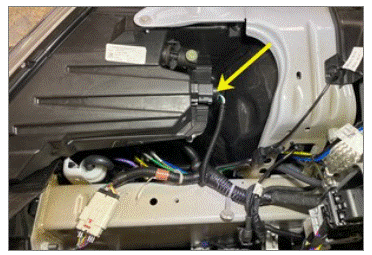

  3. Disconnect the electrical connector from the RH headlight.
    G00651607Courtesy of TESLA, INC.

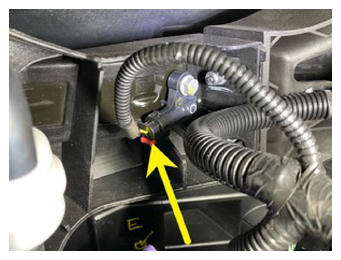

  4. Disconnect the electrical connector from the RH shotgun accelerometer sensor.
    NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G15100108Courtesy of TESLA, INC.

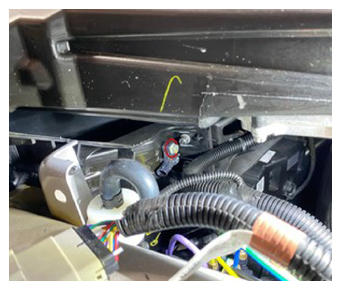

  5. Remove the bolt that attaches the sensor to the vehicle, and then remove the sensor from the vehicle.
    G15100109Courtesy of TESLA, INC.
    G15100111Courtesy of TESLA, INC.
