Sensor - Shotgun Accelerometer - RH - Remove and Replace: Install

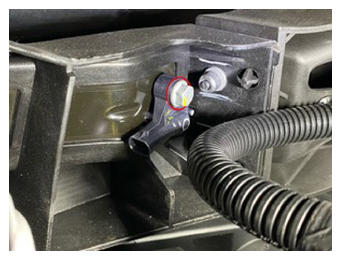

Position the sensor on the vehicle, and then install the bolt that attaches the sensor to the vehicle.
NOTE: 10 N.m (7.4 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
- Ratchet/torque wrench
- Drive locking 6 in extension
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

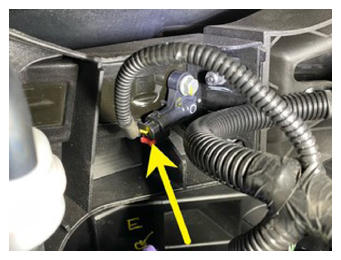

Connect the electrical connector to the RH shotgun accelerometer sensor.
NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

Courtesy of TESLA, INC.

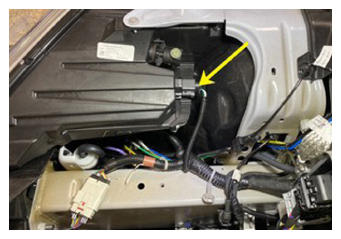

Connect the electrical connector to the RH headlight.

Courtesy of TESLA, INC.
Connect 12V power. See LV Power (Disconnect and Connect) .
Install the underhood storage unit. See Underhood Storage Unit (Remove And Install) .
