Seatbelt Intermediate Web Guide - Remove And Replace: Remove
- Open the LH doors.
- Move the driver seat fully forward.
- Remove the LH upper B-pillar trim. See Trim - B- Pillar - Upper - LH (Remove and Replace) .

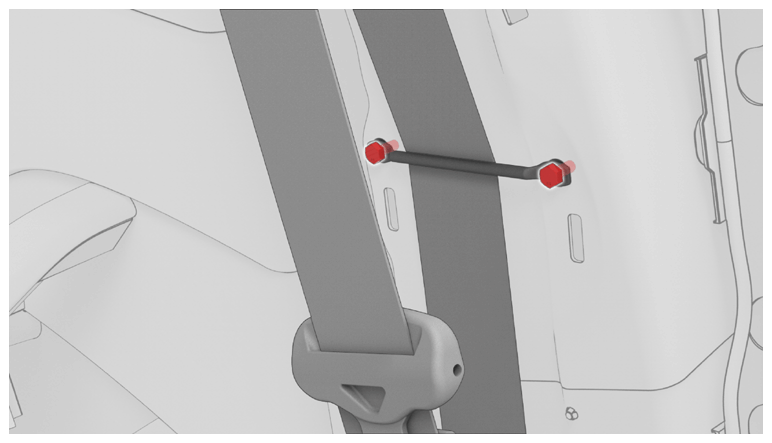

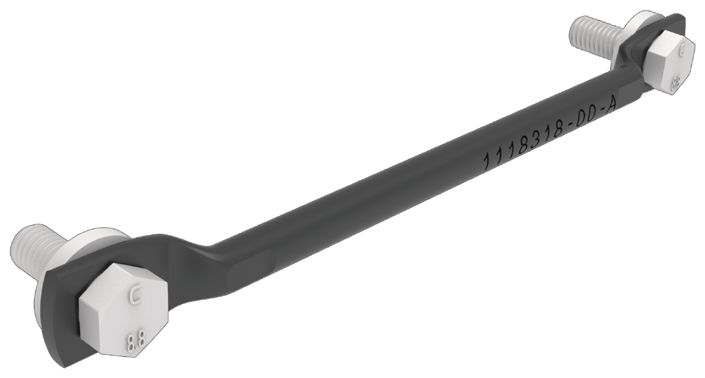

- Remove the bolts that attach the LH seat belt intermediate web guide to the B-pillar, and then remove the guide from the vehicle.
Tip: Use of the following tool(s) is recommended:
- 8 mm socket
