Adaptive Air Spring Module - Front - LH - Remove And Replace: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Tesla Model S, 2019 Tesla Model S, 2018 Tesla Model S, 2017 Tesla Model S, and 2016 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the vehicle on a 2-post lift, but do not raise it at this stage. See Raise Vehicle - 2 Post Lift .
  2. Open the LH front door and lower the window.
  3. Enable Jack Mode. See Jack Mode Activation .
  4. Depressurize the front LH air spring module. See AIR SUSPENSION - PRESSURIZE/DEPRESSURIZE - ONE AIR SPRING .
  5. Remove the rear center underhood apron. See Underhood Apron - Rear (Remove And Replace) .
  6. Disconnect the LH HEPA duct drain hose from the HEPA intake duct.
  7. Remove the LH front wheel.
  8. Remove the LH front wheel arch liner. See Wheel Arch Liner - Front - LH (Remove and Replace) .

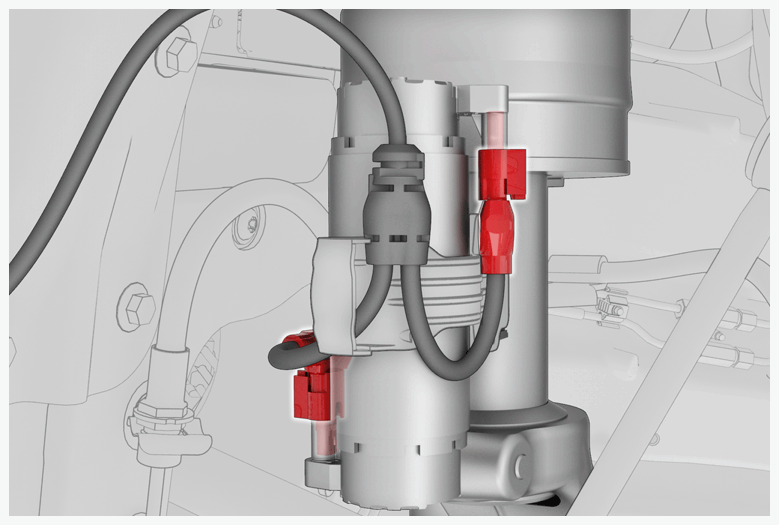

  9. Release the LH damper harness connectors (x2) from the LH front air spring module.
    G14980691Courtesy of TESLA, INC.

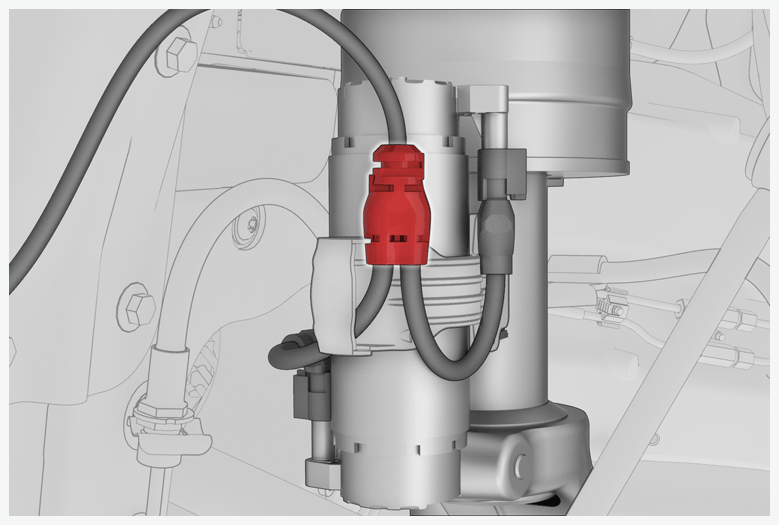

  10. Release the LH adaptive air spring module harness from the bracket.
    G14980692Courtesy of TESLA, INC.

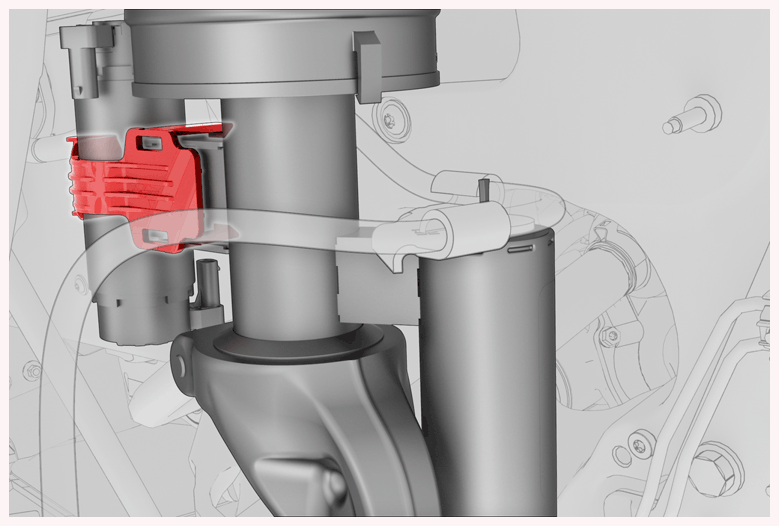

  11. Release the tabs (x2) that attach the LH damper harness bracket to the LH front air spring module.
    G14980693Courtesy of TESLA, INC.
  12. Remove the bolt (torque 6 N.m) that attaches the flexible brake hose bracket to the LH air spring module.

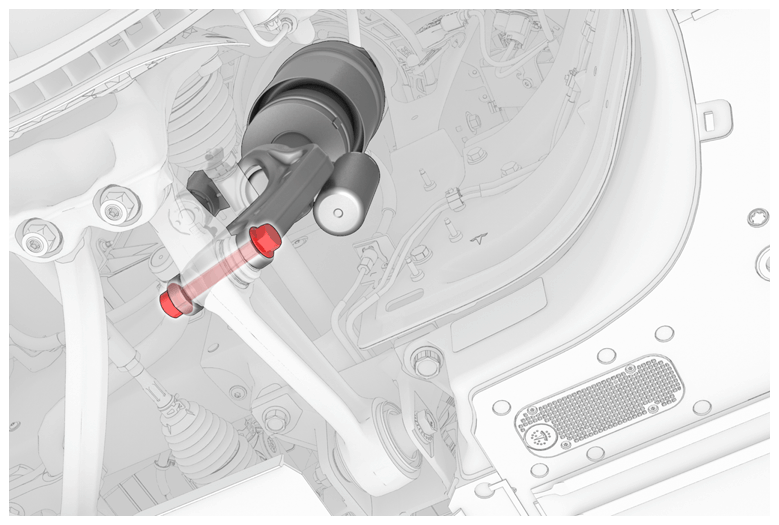

  13. Remove the nut and bolt (torque 140 N.m) that attach the LH front air spring module to the LH front lower aft link assembly.
    G14980694Courtesy of TESLA, INC.

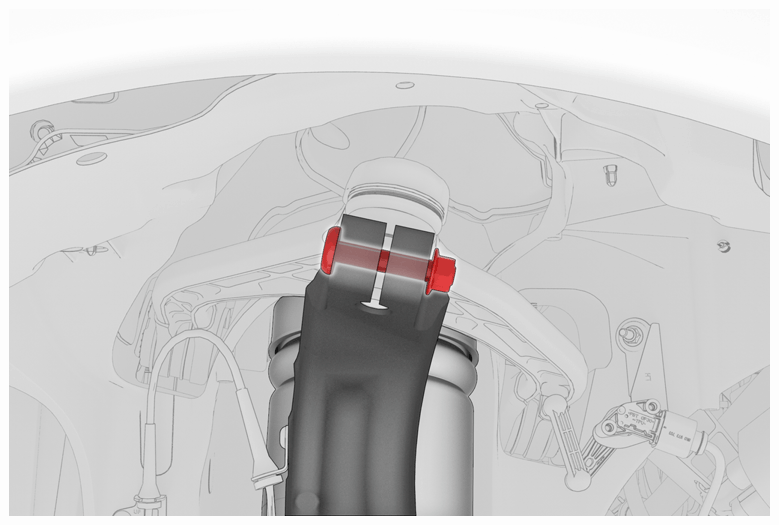

  14. Remove the nut (torque 60 N.m) that attaches the upper control arm ball joint to the knuckle, and then disconnect the LH knuckle from the upper control arm.
    NOTE: Compress the upper control arm ball joint to the knuckle, and then remove the bolt. Support the knuckle while the ball joint is released.
    G14980695Courtesy of TESLA, INC.
  15. Lower the vehicle to a comfortable working height.

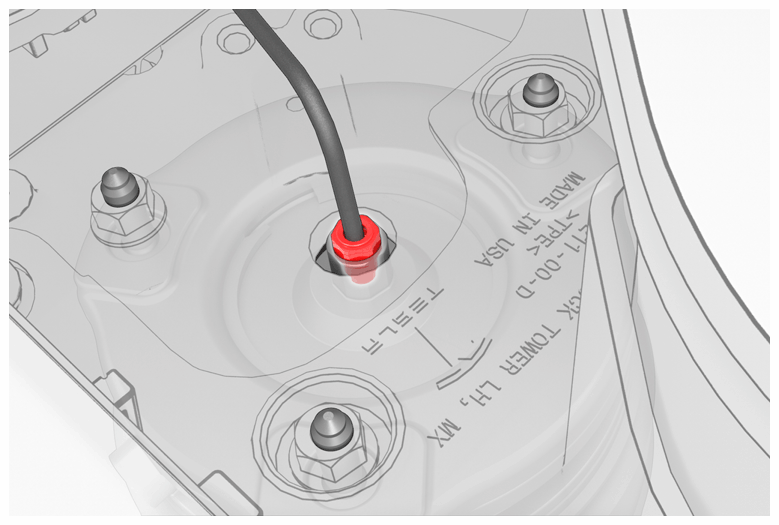

  16. Release the nut that (2 N.m) attaches the air line fitting to the LH air spring module.
    NOTE: Once air leak can be heard, stop turning until all air is released.
    G14980696Courtesy of TESLA, INC.

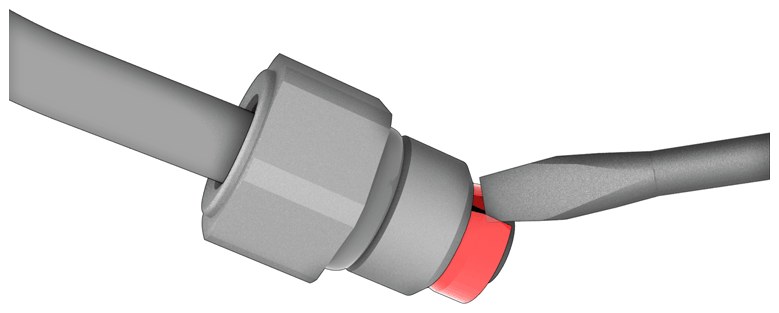

  17. For each released end of an air suspension line, use a flat blade screwdriver to snap off the old collet, and discard the collet and nut (VOSS fitting).
    G14980697Courtesy of TESLA, INC.

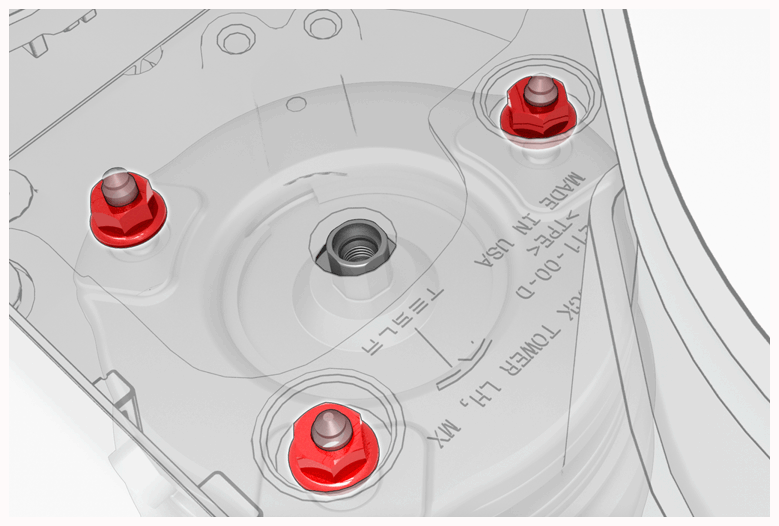

  18. Remove the nuts (torque 39 N.m) that attach the front LH air spring module to the shock tower.
    G14980698Courtesy of TESLA, INC.
  19. Carefully remove the air spring module from the vehicle.
