Remove and Install
WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
- Open LH front door
- Lower LH front window
- Open RH front door
- Lower RH front window
- Move RH front seat backward
- Open hood

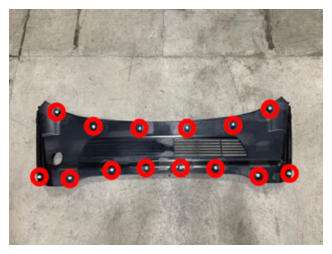

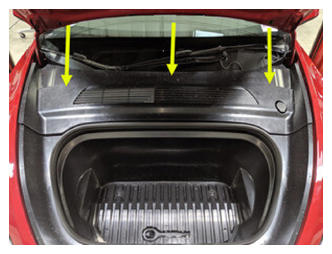

- Remove rear apronNOTE: 14x clips
- Power off vehicle from center displayNOTE: Via Controls > Safety & Security > Vehicle Power > Power Off

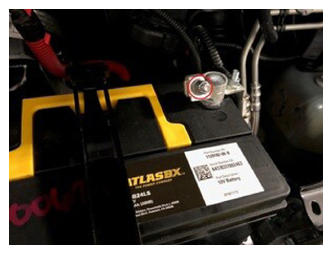

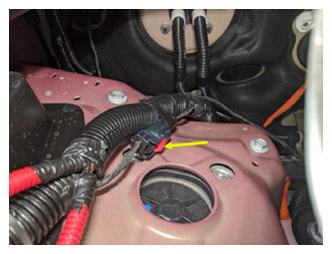

- Disconnect 12V negative terminal and first responders loopNOTE: 1x nut, 10 mm, 6 N.m, 1x connector, Ensure vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V, Negative terminal should be disconnected before FRL, Allow 2 minutes for all electrical circuits to fully discharge

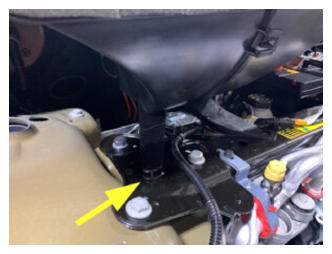

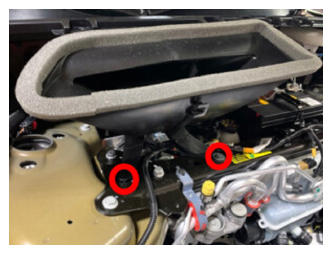

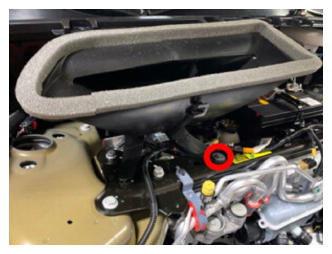

- Remove fresh air intake ductNOTE: 1x bolt, 10 mm, 4 N.m, 2x clips, 1x pin, Remove bolt, Gently pry pin out from thermal beam, then remove from bulkhead studs
- Place absorbent material below car computer coolant hose connection points to collect any spilled coolant

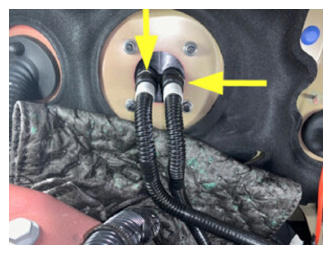

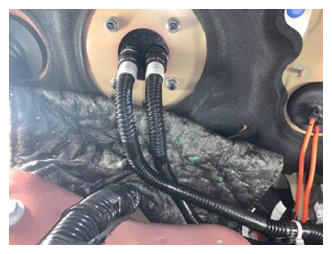

- Release coolant hoses from car computerNOTE: 2x spring clips

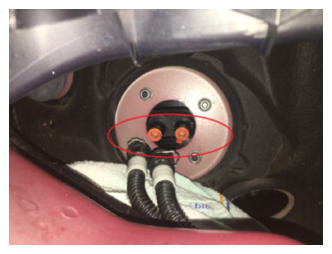

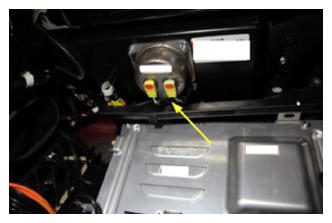

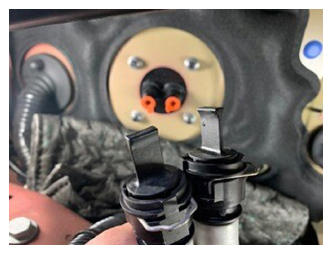

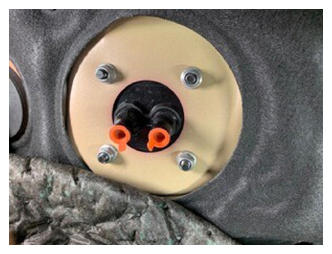

- Install coolant plugs into coolant outlets of car computer that is being removed from vehicle
- Install coolant plugs in hosesNOTE: 2x plugs, Do not need to engage spring clips

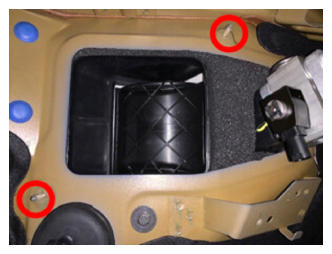

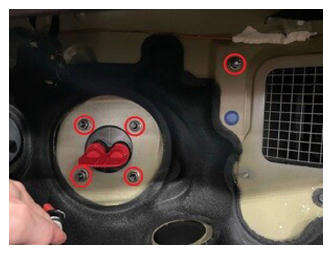

- Remove nuts securing car computer to bulkheadNOTE: 5x nyloc nuts, 13 mm, 7.1 N.m, Discard nuts after removal

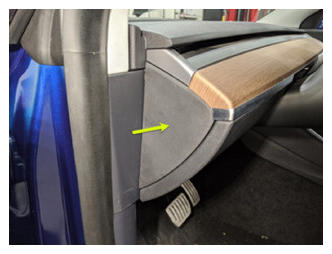

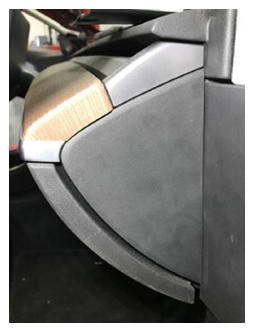

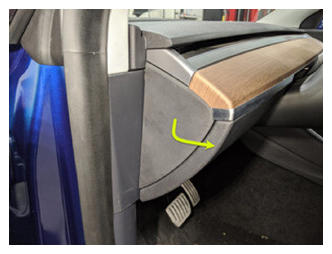

- Remove LH IP end capNOTE: 3x clips
- Remove LH air wave bezel cap from main decor assemblyNOTE: 2x clips

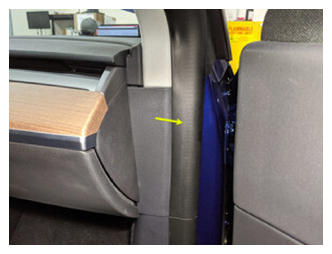

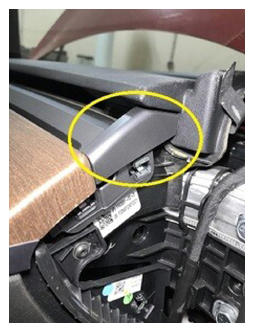

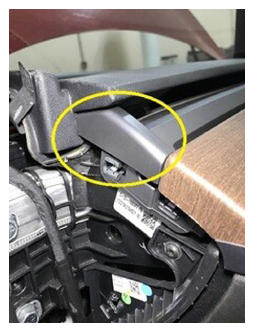

- Remove RH mid A-pillar assemblyNOTE: 1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove
- Remove RH air wave bezel cap from main decor assemblyNOTE: 2x clips

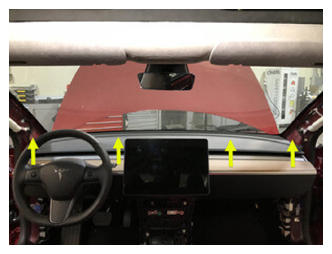

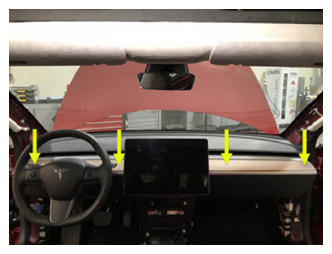

- Remove main decor assemblyNOTE: 15x clips, 1x center clip, Replace securing clips as needed
- Remove clips securing RH footwell assemblyNOTE: 4x push clips
- Disconnect RH footwell assembly connectors and remove from vehicleNOTE: 2x connectors

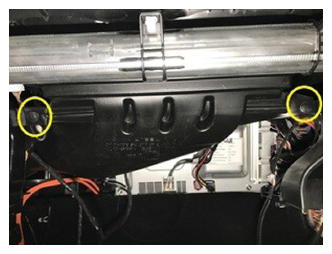

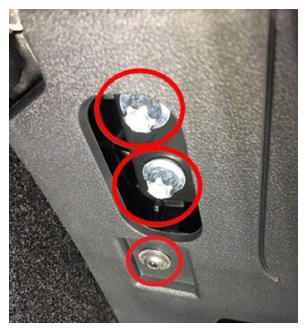

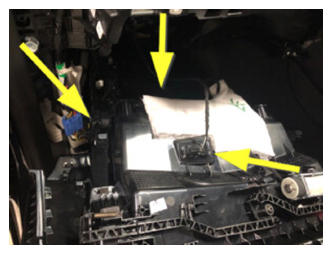

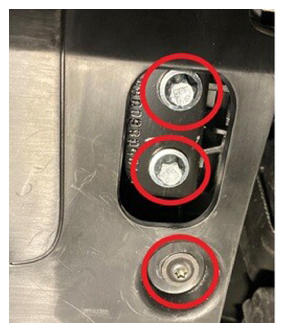

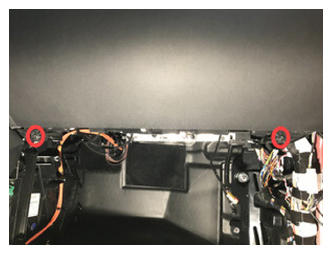

- Remove fasteners securing passenger knee air bag to vehicleNOTE: 2x screws, T20, 2 N.m, 1x push clip, 4x patch bolts, E10, 8 N.m, Discard patch bolts after removal, Support the knee air bag while lowering, The connector/harness length is very short

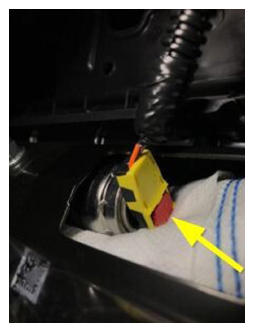

- Remove the passenger knee air bag from vehicleNOTE: 1x connector, Release locking tab

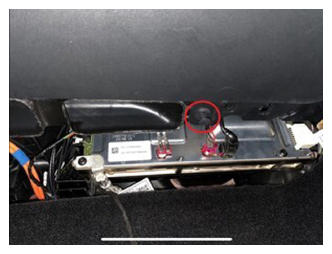

- Disconnect glove box USB cable from car computerNOTE: 1x connector, Depress latch on top of USB cable to release internal latches, then release from car computer

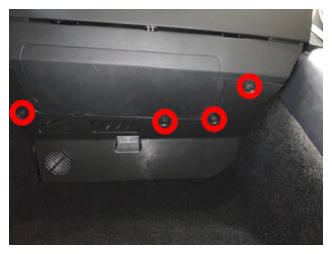

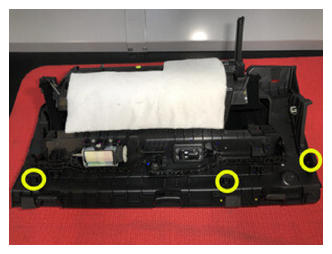

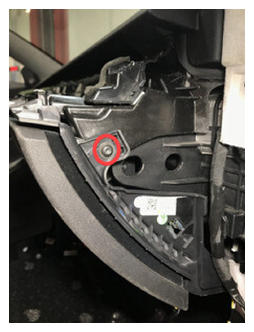

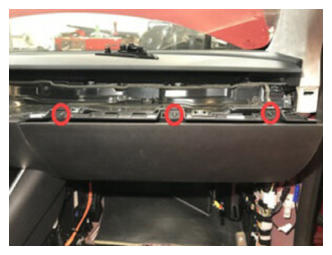

- Remove screws securing glove box assembly to IP carrierNOTE: 6x screws, T20, 2.3 N.m
- Remove the glove box from IP carrierNOTE: 3x clips

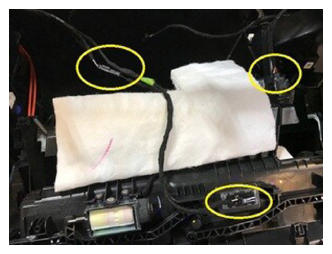

- Disconnect glove box assembly connectorsNOTE: 3x connectors
- Remove the passenger footwell air ductNOTE: 1x push clip

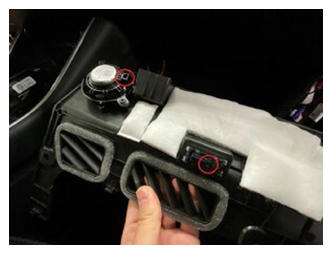

- Remove the RH IP air wave ductNOTE: 2x push clips

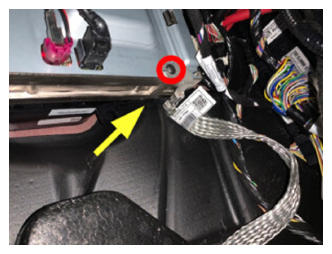

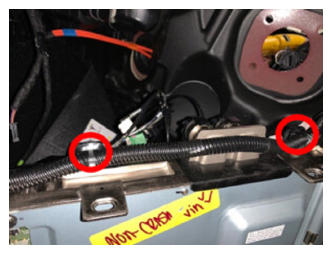

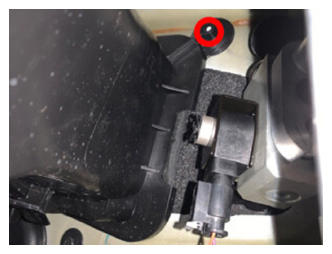

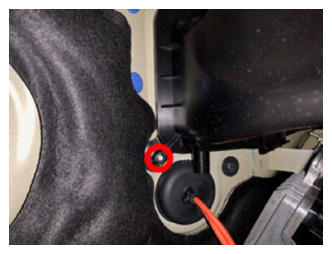

- Release ground strap from car computerNOTE: 1x bolt, T25, 1x nut, 8 mm, 3.5 N.m, Nut located on backside, Discard nut after removal

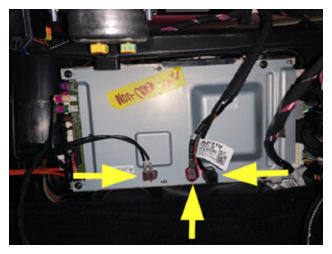

- Disconnect connectors on front side of car computerNOTE: 3x connectors, If equipped, release locking tab, then remove connector body

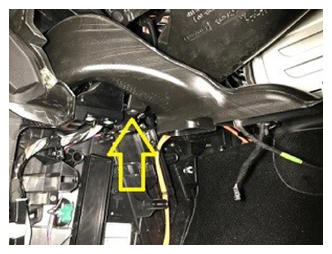

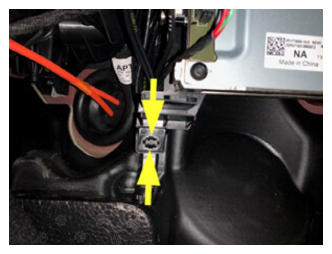

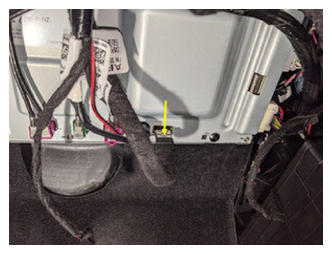

- Release harness guide clipNOTE: 1x clip, Pinch release tabs with needle nose pliers

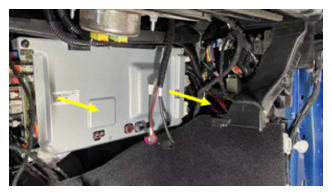

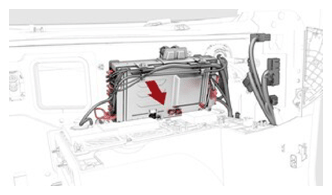

- Slide car computer inward to allow access to connectors and harness clipsNOTE: Be careful not to strain harness and connectors
- Remove car computer shroudNOTE: 4x clips

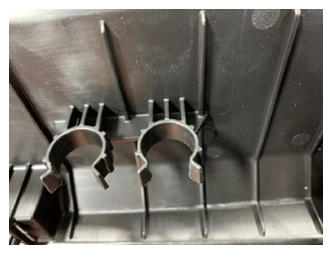

- Release harness clips from top of car computerNOTE: 2x clips

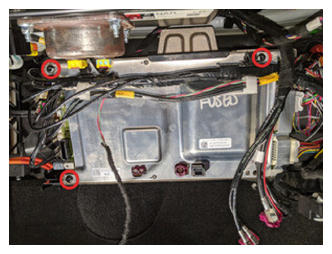

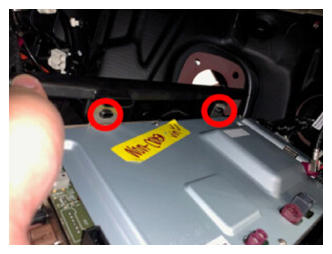

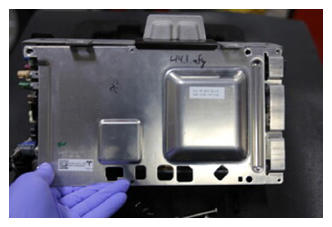

- Remove fasteners securing car computer cover to car computer bodyNOTE: 3x bolts, T25, 3x nuts, 8 mm, 3.5 N.m, Discard nyloc nuts after removal

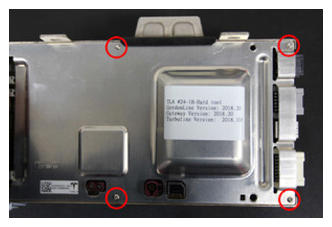

- Remove the top cover fastenersNOTE: 4x screws, T10, 1.4 N.m, Discard after removal

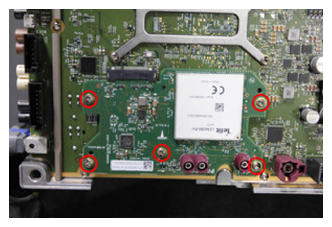

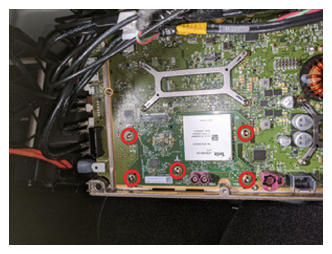

- Remove the connectivity board mounting screwsNOTE: 5x screws, T10, 0.7 N.m, Discard after removal

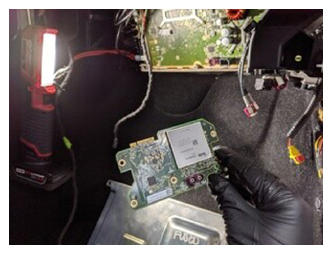

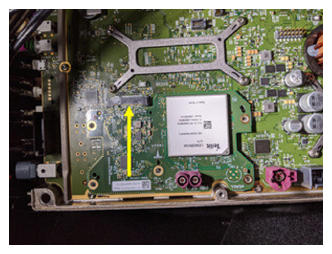

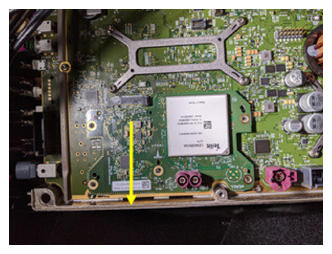

- Slide the connectivity board down to separate connector and removeNOTE: 1x connector
- Slide the connectivity board in to the PCB connectorNOTE: 1x connector
- Install mounting screws to secure connectivity boardNOTE: 5x screws, T10, 0.7 N.m, Install new fasteners

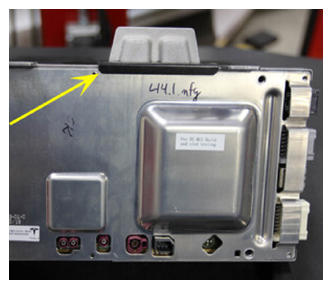

- Slide top cover onto car computer assemblyNOTE: Top cover must be underneath top gasket seal
- Install top cover mounting screwsNOTE: 4x screws, T10, 1.4 N.m, Install new screws
- Install fasteners securing car computer covers to car computer body bracketNOTE: 3x bolts, T25, 3x nuts, 8 mm, 3.5 N.m, Install new nyloc nuts
- Secure harness to top of car computerNOTE: 2x clips
- Install car computer shroud onto car computerNOTE: 4x clips

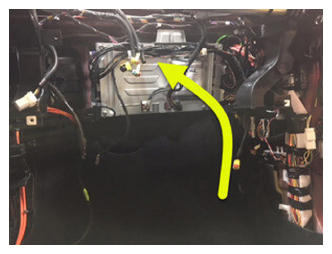

- Slide car computer into position on bulkheadNOTE: Use caution during installation due to minimal clearance between shroud and passenger airbag connectors and harness
- Secure harness guide clipNOTE: 1x clip
- Connect connectors on the front side of car computerNOTE: 3x connectors, If equipped, fully seat connector, then engage locking tab

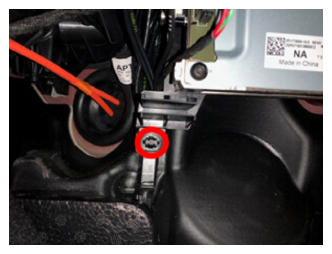

- Secure ground cable to car computerNOTE: 1x bolt, T25, 1x nut, 8 mm, 3.5 N.m, Install new nyloc nut
- Install nuts securing car computer to the bulkheadNOTE: 5x nyloc nuts, 13 mm, 7.1 N.m, Install new nyloc nuts
- Verify there are no coolant plugs in the car computer coolant necks
- Remove plugs from hosesNOTE: 2x plugs, Engage spring clips after removal

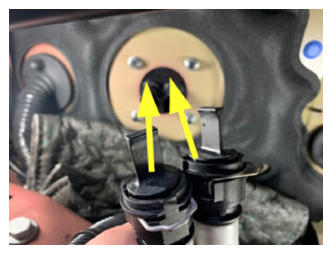

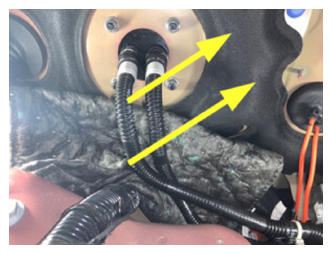

- Secure hoses to car computer coolant inlet/outletNOTE: 2x spring clips, Perform push-pull-push test to ensure the hoses are fully seated

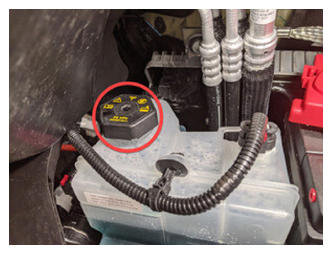

- Remove coolant bottle cap

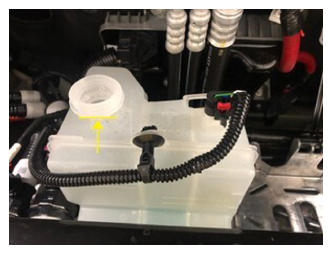

- Fill coolant bottle to base of neck as indicated
- Remove absorbent material from below car computer coolant hose connection points
- Install the RH IP air wave ductNOTE: 2x push clips
- Install the passenger footwell air ductNOTE: 1x push clip

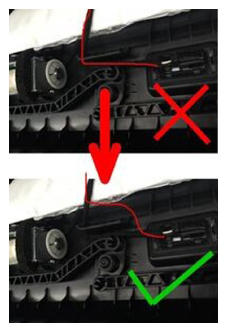

- Connect glove box assembly connectorsNOTE: 3x connectors, New puddle lamp harness routing prevent blocking movement of pawls
- Install the glove box into IP carrierNOTE: 3x clips

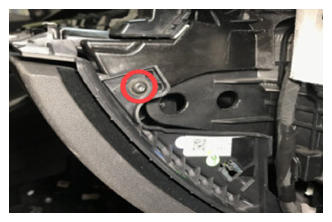

- Install screws securing glove box assembly to IP carrierNOTE: 6x screws, T20, 2.3 N.m
- Connect glove box USB cable to car computerNOTE: 1x connector
- Install the passenger knee air bag into vehicleNOTE: 1x connector, Engage locking tab, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connector
- Install fasteners securing passenger knee air bag to vehicleNOTE: 4x patch bolts, E10, 8 N.m, 2x screws, T20, 2 N.m, 1x push clip, Install new patch bolts
- Connect the RH footwell assembly connectorsNOTE: 2x connectors
- Install clips securing RH footwell assemblyNOTE: 4x push clips
- Install main decor assemblyNOTE: 15x clips, 1x center clip
- Install LH air wave bezel cap to main decor assemblyNOTE: 2x clips
- Install LH IP end capNOTE: 3x clips
- Install RH air wave bezel cap to main decor assemblyNOTE: 2x clips
- Install RH IP end capNOTE: 3x clips
- Connect first responder loop and 12V negative terminalNOTE: 1x nut, 10 mm, 6 N.m, 1x connector, Engage locking tab, Connect FRL first before connecting 12V to avoid damage to car computer
- Connect to vehicle using Toolbox 3.0
- Select 'TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGE ', click 'Run', and allow routine to completeNOTE: Make sure vehicle is not in drive state, Plan is still running despite the stop message, Coolant pumps will be audible, Test lasts approximately 10 mins, Idle speed = ~1500 RPM, Test will vary speeds from 3500-6500 RPM and actuate valve between SERIES and PARALLEL, Putting vehicle into drive state will stop this routine, If speeds hover at 7000 RPM, that means the pumps are air locked, perform vacuum fill again, Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle, Select 'X' at top right of window to close once complete
- Install fresh air intake ductNOTE: 1x bolt, 10 mm bolt, 4 N.m, 2x clips, 1x pin, Set clips on bulkhead studs, Secure to thermal bar
- Install rear apronNOTE: 14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips
- Close hood
- Move RH front seat to original position
- Raise RH front window
- Close RH front door
- Raise LH front window
- Close LH front door
