Tweeter Assembly - Front Door - LH (with Tether) - Remove and Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the LH front door and lower the LH front window.
  2. Carefully release the clips (x2) and body hook that attach the LH front door tweeter assembly to the door trim panel and body, disconnect the connector, and then hang the assembly aside.
    NOTE:

    Release the tweeter assembly upwards to release the clips.

    NOTE:

    The tether will still be connected.

    NOTE:

    Tethered units can be used to replaced non-tethered tweeters. However, if the vehicle is equipped with a tethered tweeter, then it must be replaced with a tethered unit in all instances.

    G00596898Courtesy of TESLA, INC.

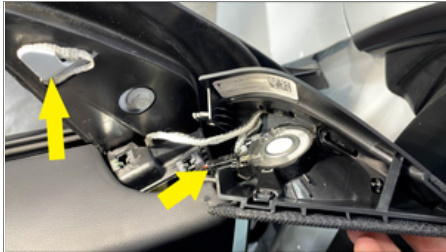

    G00596899Courtesy of TESLA, INC.
    G00596900Courtesy of TESLA, INC.
  3. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH - Remove And Install .
  4. Take note of the tether routing, and then unhook the tether to remove the LH front door tweeter assembly from the door assembly.
    G00587139Courtesy of TESLA, INC.

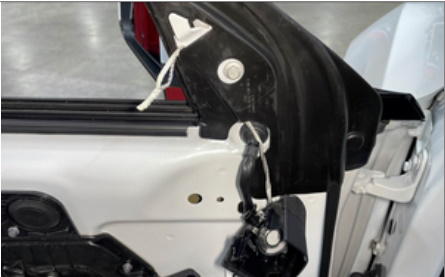

    G00587140Courtesy of TESLA, INC.
    G00587141Courtesy of TESLA, INC.
