Accelerator - Remove and Replace: Remove

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Disconnect 12V/LV power.. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  4. Remove the driver knee airbag. See AIRBAG - KNEE - DRIVER (REMOVE AND INSTALL) .
  5. Remove the LH footwell duct. See DUCT - FOOTWELL - LH (LHD) (REMOVE AND REPLACE) .

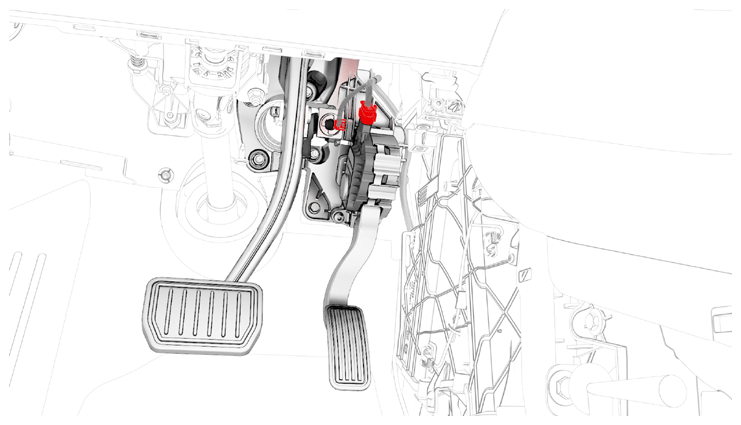

  6. Disconnect the electrical connector from the accelerator.
    G14744480Courtesy of TESLA, INC.
    CAUTION: If the connector locking tab is red, pull the red locking tab away from the pedal housing.
  7. Remove the bolt that attaches the accelerator to the body.
    G14744481Courtesy of TESLA, INC.
  8. Slide the accelerator downwards, and then remove the accelerator from the vehicle.
