Firmware Update - Mobile Connector - 2nd Generation: Update

NOTE: Charge the vehicle to at least 55% before continuing with this procedure.
  1. Open the LH front door.
  2. Connect the Gen 2 Mobile Connector to a wall outlet.
  3. Use the button on the Gen 2 Mobile Connector to open the charge port door, and then connect the Mobile Connector to the vehicle.

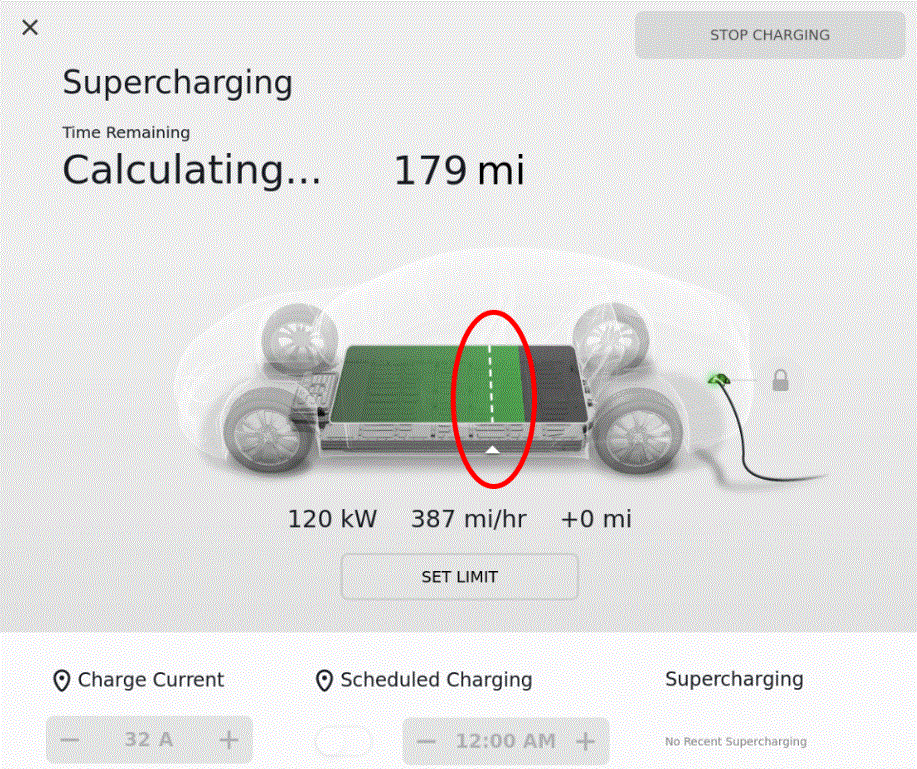

  4. On the touchscreen charging menu, touchSet Limit, and then set the charge limit below the current charge level.
    G00619705Courtesy of TESLA, INC
  5. The Gen 2 Mobile Connector firmware update will begin within 1 minute.
    NOTE: A notification will appear on the instrument panel, stating "Charge Connector Update in Progress".
  6. The Gen 2 Mobile Connector firmware update will finish within 3 minutes.
    NOTE: Ignore any charging related error messages that appear on the instrument panel.
  7. Disconnect the Gen 2 Mobile Connector from the vehicle, and then close the charge port door.
  8. Disconnect the Gen 2 Mobile Connector from the wall outlet.
  9. Connect the Gen 2 Mobile Connector to the wall outlet.
  10. Use the button on the Gen 2 Mobile Connector to open the charge port door, and then connect the Gen 2 Mobile Connector to the vehicle.

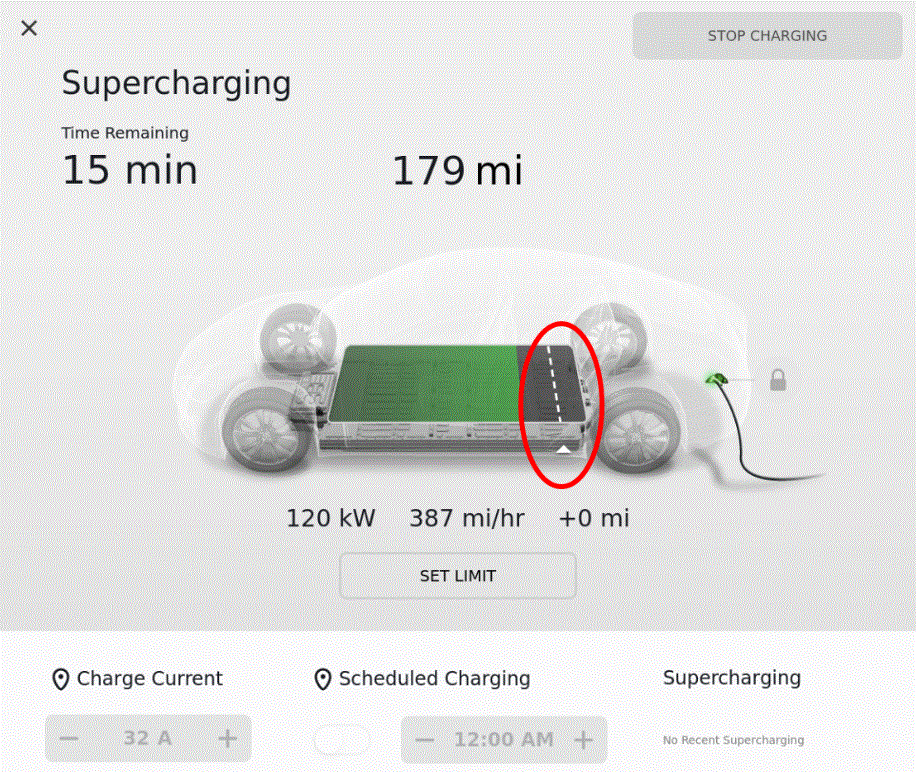

  11. On the touchscreen charging menu, touchSet Limit, and then set the charge limit above the current charge level.
    G00619706Courtesy of TESLA INC
  12. Make sure that the vehicle begins charging.
  13. Disconnect the Gen 2 Mobile Connector from the vehicle, and then close the charge port door.
  14. Disconnect the Gen 2 Mobile Connector from the wall outlet.
