SD Card - Car Computer - Remove And Replace: Remove
- Open the RH front door and lower the RH front window.

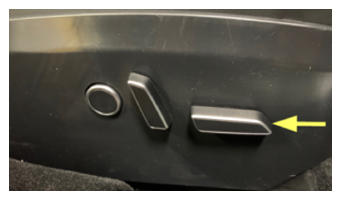

- Move the front passenger seat fully rearwards.
- Open the hood.
- Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
- Disconnect LV power. See LV Power - Disconnect And Connect .
- Remove the front passenger floor mat.
- Remove the passenger footwell cover. See Cover - Footwell - Passenger - Remove And Replace .
- Remove the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH - Remove And Replace ).
- Remove the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH - Remove And Replace .

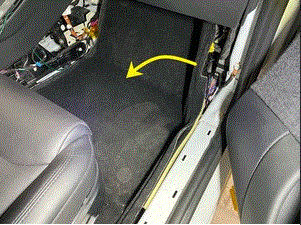

- Fold the RH front cabin carpet aside for access.
- Remove the RH center console side panel. See Side Panel - Center Console - LH - Remove And Replace .

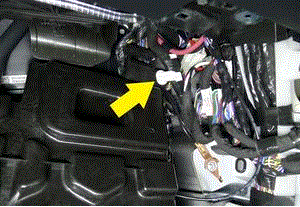

- Release harness from RH footrest panel. NOTE: 1x clip
- Remove the front passenger footrest panel. See Panel - Footrest - Front Passenger (LHD) - Remove And Replace .

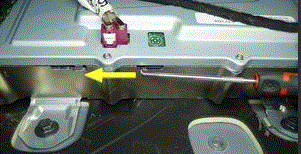

- Release the SD card from the slot in the car computer, and then remove the SD card from the vehicle.NOTE: x1 retaining tab.NOTE: Eject the SD card by sliding the locking tab away from the SD card. The SD card may eject quickly and fall. Once ejected and the SD card is still in car computer slot, it can be removed with tweezers.NOTE: Destroy the removed SD card.
