Tuner - FM/HD/XM - Remove And Replace: Remove

  1. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  2. Disconnect the coax connector on the tuner harness from the FM/HD tuner.

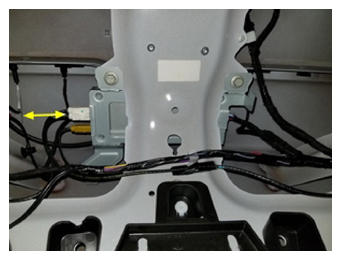

    G15101223Courtesy of TESLA, INC.

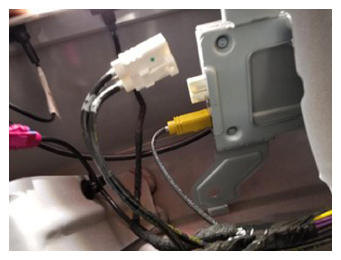

    G15101224Courtesy of TESLA, INC.
  3. Disconnect the RH liftgate harness electrical connector from the LH side of the FM/HD tuner.

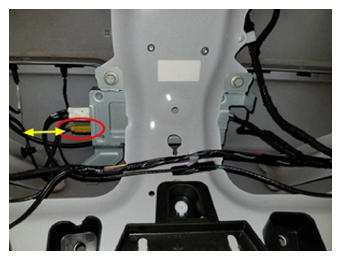

    G15101225Courtesy of TESLA, INC.
  4. Disconnect the RH liftgate harness electrical connector from the RH side of the FM/HD tuner.

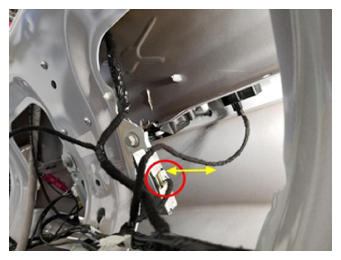

    G15101226Courtesy of TESLA, INC.
  5. Remove the bolts (x3) that attach the FM/HD tuner to the liftgate, and then pull the tuner downward and out of the liftgate from the LH side.

    NaN N.m (NaN ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket

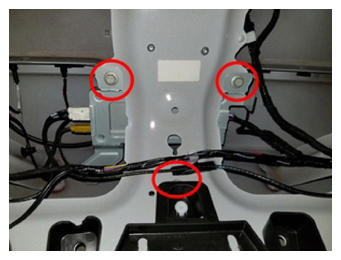

    G15101227Courtesy of TESLA, INC.

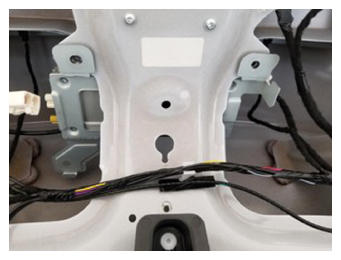

    G15101228Courtesy of TESLA, INC.

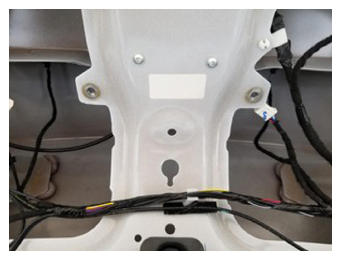

    G15101229Courtesy of TESLA, INC.
