Shroud - Lower - Steering Column - Remove And Replace: Install

  1. Install the screws (x2) that attach the lower shroud to the steering column.
    NOTE: 2x screws, T20, 1.5 N.m
    NOTE: Slide the lower shroud toward the dash to engage the datum.

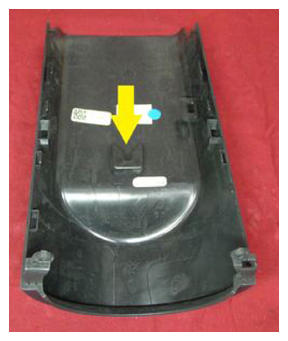

    G15103934Courtesy of TESLA, INC.
  2. Install the gap hider. See Gap Hider - Steering Column - Upper (Remove and Replace) .
  3. Install the steering yoke. See STEERING YOKE/WHEEL (REMOVE AND REPLACE) .
  4. Install the IP decor. See Decor - Instrument Panel - Main (Remove and Replace) .
  5. Install the touchscreen. See Touchscreen (Remove and Replace) .
  6. Install the IP service panel. See Service Panel - Instrument Panel (Remove and Replace) .
  7. Install the phone dock. See Phone Dock - Center Console (Remove and Replace) .
  8. Connect LV power. See LV Power (Disconnect and Connect) .
  9. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  10. Install the LH and RH instrument panel end caps. See End Cap - Instrument Panel - LH (Remove and Replace) .
  11. Install the LH and RH middle A-pillar trims. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
