Sensor - Crash Accelerometer - Front Bumper - Remove And Replace: Remove

  1. Disconnect 12V power. See LV Power (Disconnect and Connect) .
  2. Remove the underhood storage unit. See Underhood Storage Unit (Remove And Install) .
  3. Disconnect the electrical harness from the front bumper crash accelerometer sensor.
    NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

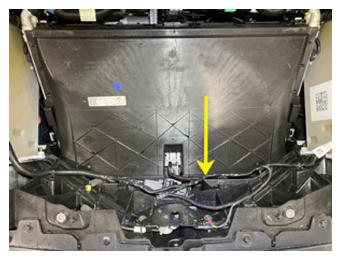

    G15099901Courtesy of TESLA, INC.

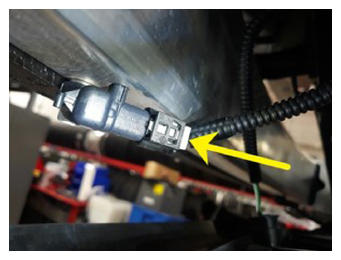

    G15099903Courtesy of TESLA, INC.
  4. Remove the bolt that attaches the sensor to the vehicle, and then remove the sensor from the vehicle.

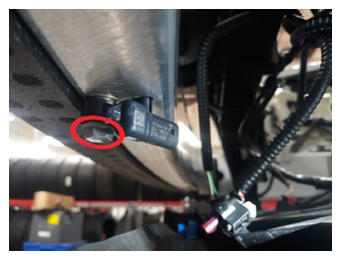

    G15099905Courtesy of TESLA, INC.
    G15099907Courtesy of TESLA, INC.
